    Full Color P4 Large Outdoor LED Display Screens 320*160mm LED Module indoor full color led display

    Ask Lasest Price
    Brand Name : SCX
    Model Number : P10
    Certification : CE,ROHS,FCC,SASO
    Price : USD 1000-10000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000 sqm per month
    Delivery Time : 7 working days
    • Product Details
    • Company Profile

    Full Color P4 Large Outdoor LED Display Screens 320*160mm LED Module indoor full color led display

    Full color P4 p5 p6 P8 P10 Outdoor SMD led display/ Led video wall Screen Rental cabinet 960X960mm


    Service


    1. Two years warranty for the whole system except human factor and force majeure

    2. One year quality warranty, lifetime maintenance, and guarantee the maintenance time in contract.
    3. During the warranty period: solve problems for users through the phone, fax or E-Mail. Update the software free of charge.
    4. As to the product quality problems caused by design, manufacture, installation technology, material, the replacement and maintenance are free. The system damage caused by force majeure(flood, fire, earthquake, war and so on) as well as users) man-made disturbance(construction, cleaning ) should be coordinate by both sides to solve.


    Specifications

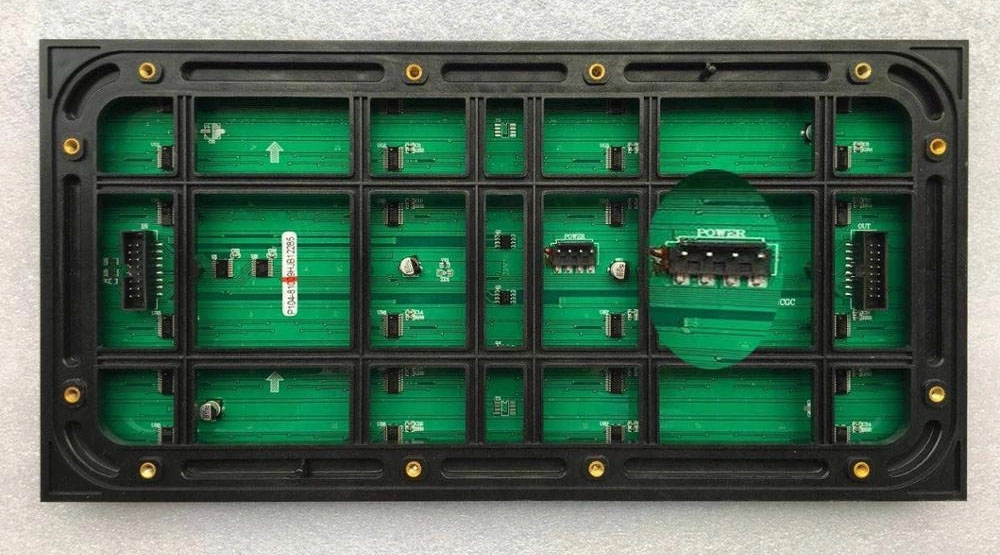

    Unit ModuleItemParameterParameter
    Module numberP10P8
    Moule size320mm x 160mm256mm x 128mm
    Pixel pitch10mm8mm
    Pixel density10000dots/sqm15625dots/sqm
    Pixel configuration1R1G1B1R1G1B
    Package modesmd 3535smd3535
    Pixel resolution32x 16 dots32x16dots
    Max power consumpion28w28w
    Module thickness14.85mm(without magnet)14.85mm(without magnet)
    27.15mm(with magnet)27.15mm (with magnet)
    Module weight0.504kg0.7kg
    Driver methodconstant driveconstant drive
    Driver method1/4 scanning1/4
    Port typeHUB75HUB75
    Brightness>7000cd/sqm>7000cd/sqm
    BracketSize320mm x 160mm256mm x 128mm
    Unit CabinetCabinet size960mm x 960mm1024mm x 1024mm
    Quantity of module18pcs32pcs
    Power supply5v/40A x 5pcs5V/40A x5pcs
    Thermal discharge2pcs cooling fans2pcs cooling fans
    Pixel per cabinet96 x 96 dots128x128 dots
    Best viewing distance5m-100m5-100m
    Best viewing angle160°(w)120°(H)160°(w)120°(H)
    Temperaturestorage:-35℃- +85℃storage:-35℃-+85℃
    working:-20℃- +50℃working:-20℃-+50℃
    Opration humidity10%-95%10%-95%
    Thickness145mm145mm
    PowerWorking voltage220V±10%220V±10%
    Averange power consumption140W/sqm140W/sqm
    Max. power consumption420w/sqm420W/sqm
    Current<20mA(single LED)<20mA(single LED)

    Related Pictures





    Workshop

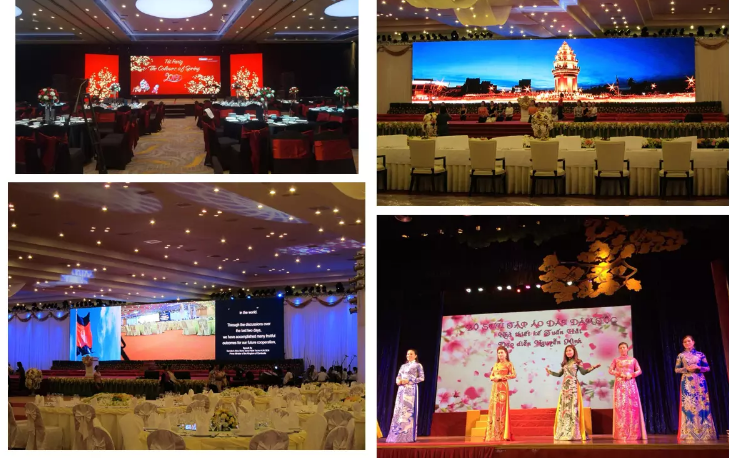

    Projects


    FAQ


    Q1: What is the lead time?

    A: Sample:2-5days; small quantity: 15-20days; large order: 20-25days; according to quantity.


    Q2: Is it all right to make customers’own brand name?

    A: That’s all right to make your own brand name.


    Q3: Is it available for samples?

    A: yes, of course. sample is free, and you may pay freight cost. that would be reasonable.


    Q4: Is there a middle man draining your profit?

    A: Get rid of them,it’s information age.Factory Directly Supply,Provide good price, high-quality, quick-delivery, best quality service.
