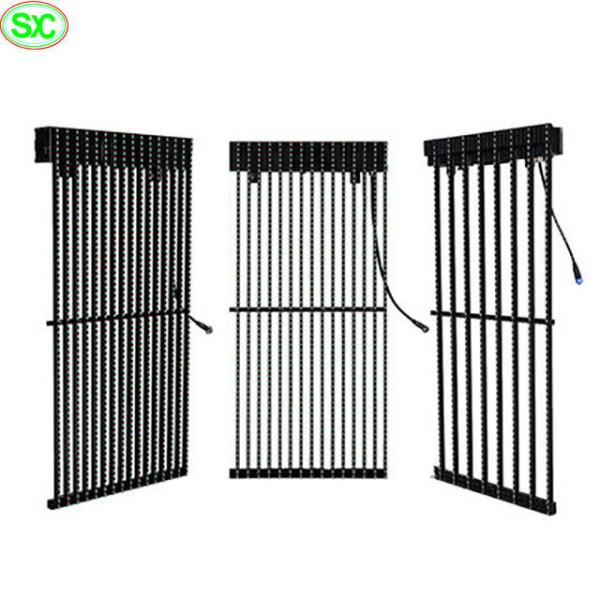

P10 outdoor waterproof led video curtain display stand, led curtain
stage background, waterproof IP65
♦ Advantage :
1 . Wide viewing angle: Viview led display show clear pictures or
image without mosaics even when audiences see it from a small
viewing angle;
2 . Rich colors: With three basic colors (red, green and blue),
256-level gradation of each color, and form 16777216 kinds of
colors;
3 . Adjustable brightness: Viview LED screen brightness can be
adjusted automatic and manual according to environment light;
4 . Good color blending: Display clear, exquisite, nature color
video even at close distance;
5 . Wide range of display content: Viview led wall can easily to
display txt documents, doc documents, pictures and video
6.led display usage range: Governmental plazas, Large-scale
entertainment plazas, business and commercial centers, playground,
station, airport and so on
Methods for Quality Assurance
Great transparency from 60%-95%, it is installed close to the glass
of shop window or large glass building wall. Looks like a totally
transparent led video wall from far aways when more than 10m.
Humanized design for easier installation
High protection, waterproof, dustproof, anti-collision etc.
Using high quality LED lamp, LED chip and driver IC to achieve
engery saving
Transparent LED screen can be used as fixed screen as well as
rental screen, so its application is very wide.
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
♦ Production process
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
Technical specification
| Resolution/mm | 10mm |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 10000/m² |
| Module resolution | 32x16 |
| Module size/mm | 320x160 |
| View distance | 9-500m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | (1/8) |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/㎡ | <750W |
| Average power:/㎡ | <250W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
| Items | Indoor Led display:
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
| Material | steel,aluminum ,die casting aluminum |
Payment
terms | 30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |
| Using Range | Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on. |
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us
Assured High Quality
With more than 10 years experience in led display
producing,equipments are updated regularly. clients cover more than
50 cuntries. As a high-tech enterprise integrated with scientific
research, design, production, maintenance, sales and system
integration, we have a professional high-quality technical R & D
team,rich experienced engineers and professional product
development and design engineers,excellent marketing team, pre and
after-sales 24 hours service.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Our team will be forever here to offer you full supports
