SCX LED Waterproof Outdoor Led Street Advertising Billboard Screen
Panel Smd Fixed P5 P6 Outdoor Led Display
IP65 Waterproof Weather Rating
A fully rated outdoor product is key to guaranteeing the longevity
of your outdoor advertising led display screen.
* High Brightness Display
The key to a quality outdoor advertising LED screen is variable
brightness for any condition day or night.Traditional advertising
outdoor LED screen has brightness offerings between 6500-7500 Nit.
* Custom Sizing
traditional outdoor advertising LED screen can be manufactured in
multiple different cabinet sizes to best fit your
unique outdoor LED display installation.
* Stable, Reliable Connections
outdoor advertising LED display board utilizes data and power
connections that are 100% water
tight allowing for stable and reliable connections between each
outdoor LED display cabinet.
* Perfect Display Performance
SMD provides wider viewing angles and extremely close viewing dist.
* Widely applied to traffic information distribution of station,
quay and airport, conference, shopping-mall, brand presentation,
TV-station, stage-show, concert and so on.
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection
(AOI) Equipment.
p6 SMD full color led screen technology parameter
| Resolution/mm | 6 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m^2 | 27778/m^2 |
| Module resolution | 32dotsx32dots |
| Module size/mm | 192x192mm |
| View distance | 10-200m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | 6000 cd/m^2 |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/8scan |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >10000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 100000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/^2 | <700W |
| Average power:/^2 | <200W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
| Product Name | outdoor p6mm SMD Full color led module |
| Service | Your inquiry will be reply within 12 hours. |
| Brand | SCX |
| Material | Stainless, aluminum ,steel, epoxide |
| Item | Indoor P2 P2.5,P3,P3.91P4,P5,P6,P7.62 Outdoor p3.91 P4 ,P5 P6,P8,P10,P12,P16,P20 |
| Feature | High brightness, good resolution, working stable , easy
installation. |
| Grade | IP43-IP65 |
| Driving mode | 1/8 |
| Stock | Regular items of led display have stocks. |
| Color temperature | 6500-9500K |
| Packing Method | Flight case &Plywood case or Customized Packing |
| Power supply request | AC85-264V(50HZ-60HZ) |
| Delivery Time | Within 7-30 days according to your required size & quantity. |
| Using Range | Shopping mall,bank,bus station, train station, center of downtown,
airport, school, factory, bus, taxi, and etc. |
Super brightness single color LED billboard advertising
In the led billboard /panel series, The module design of the LED
display enables you to create customized screen surfaces of
virtually any size in either 4:3 or 16:9 ratios. Typically the LED
display series are applied to large public squares. sport centers
casino signage,public service announcement
displays,media,commercial promotion and other large scale
applications.
1, Superb brightness and color uniformity and reproduction.
Brightness variances within+/-2.5%
2, High reliability: data hot backup aims to avoid any
communication risks during the show; support automatic fault
detection
3, Proprietary image processing produces sharp, brilliant images
unmatched by industry competition

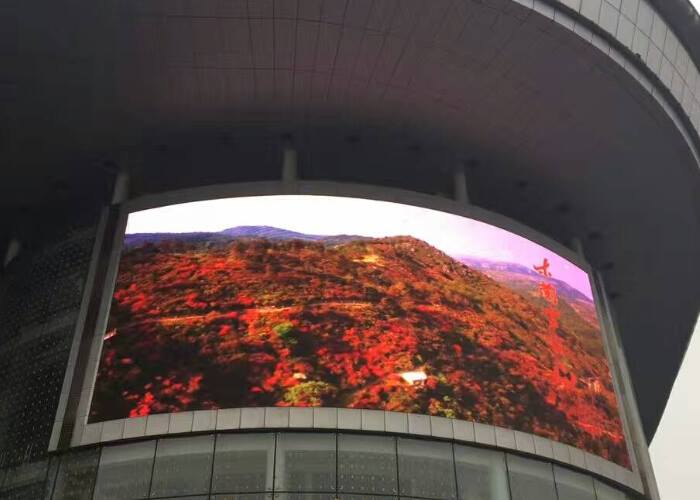

Our case
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality
goods.
♦ Production process:
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
We can receive all kinds of transportation. and the shippment term.
FOB and CIF. EXW and so on.
we can choose the best shippment which is convenient to you!
SCXK group can give you the short delivery time and With the large
production ability ,
you can feel free about this . By air ,by train, by sea?
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
FAQ
1. Advantages of a series of patented products
A national high-tech enterprise focusing on LED display R&D,
production and service. The product styles are diverse and the
series are complete.
2. Multiple application areas
Provide one-stop LED display integrated solutions for indoor and
outdoor commercial media, stadiums, stage interpretation,
special-shaped creativity and other application fields
3. Experience and case
Attach importance to product research and development, with more
than 5,000 successful cases in dozens of countries around the world
4. Support customized production advantages
According to customer needs, support research and development,
design unique OEM products, product quality and appearance meet
customer OEM customization requirements
5. Product quality assurance advantages
We have a professional R&D team, our products adopt the latest
technology, and we have a strict quality control system to ensure
product performance and use safety.
6. Factory quality after-sales guarantee
The LED display, LED module and accessories are guaranteed for 2
years, during which quality problems occur, we will provide free
repair or replacement services.
