SCX LED Full color SMD fixed front service led advertising screen
P6 outdoor led display billboard
Product advantages:
1) Price Advantage: we have the best competitive price at the
market, also have the same even better quality.
2) Quality advantage: From material to finished product, from
design to produce, we control all steps
3) Service advantage: Better service at same situation, better
cooperation at same service
Trade Terms:
1). Payment: T/T ,ususally 40% prepayment before production, 60%
balance to be paid before delivering,it also change according to
total quantity
2). Production lead time less 20 sqm: 8-15days, more than 50
sqm:30days
3). Sample can be deliveried within 3days
4). Shipping port: Shenzhen, Mainland China
5). Discounts are offered based on order quantities
6). MOQ:1 sqm/1pcs
♦ Product specification
| outdoor SMD P6 |
| Lamp size | 3535 |
| Resolution/mm | 6 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 27778/m² |
| Module resolution | 32x32 |
| Module size/mm | 192x192 |
| View distance | ≥5m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >1800cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 120(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >1200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1100W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

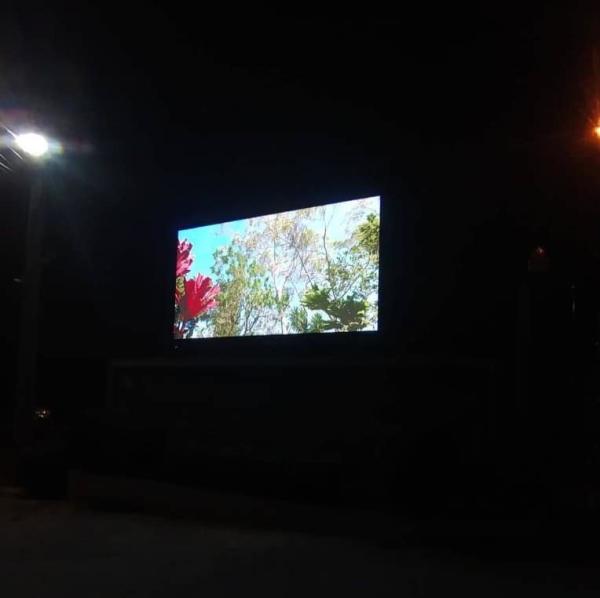

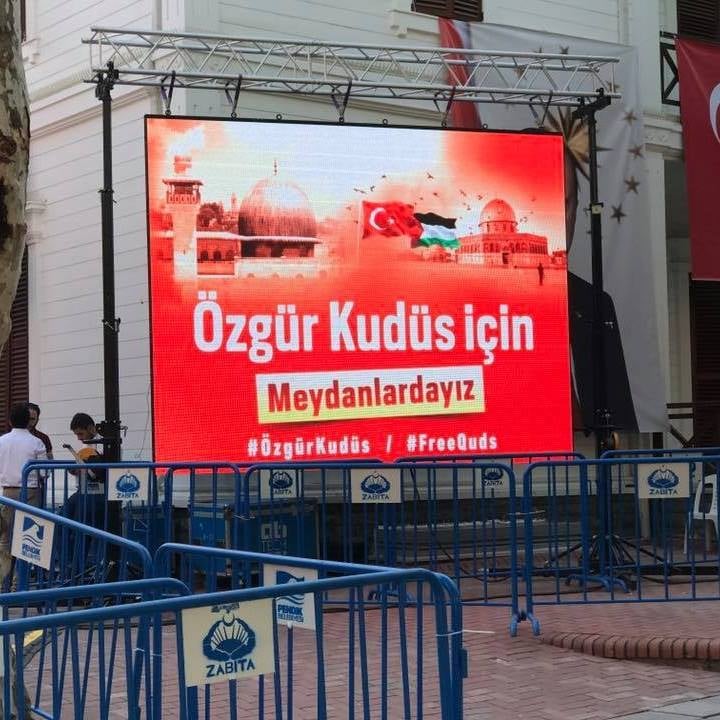

Our case
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality
goods.
Outdoor P6 front service led display
1.High brightness and stable performance lead long lifespan and low
power consumption.
2.Accurate color uniformity and smoother, flicker-free video
displaying.
3.Wide viewing angle, high contrast, high brightness (adjustable),
high intensity (14bit gradation processing), high refresh, softer
image, display life like images to meet the high-speed motion
picture display.
4.LED display production capacity per day: 50,000 pcs/day.
5.Strong R&D strength, 38000 square meter standard workshop.
Outdoor module Life is long, Stable, Save, High brightness
1.High protective dust waterproof and leakage.
2.Protection grade IP65 cabinets guidance before and after the glue
tank panel cover circuit module to ensure worry-free.
3.Lamp bead reverse polarity, higher brightness, face to face with
fierce can clear display screen.
MOQ and Sample
1.We welcome sample order to test and check quality .Mixed samples
are acceptable.
2.Low MOQ,1 piece for sample checking is available.
3.Please inform us formally before our production and confirm the
design firstly based on our sample.
FAQ
1 Q: How fast can I get reply from your company? A: During working
days, usually within 2 hours, you will get reply from our
professional sales team.
2 Q:What is your current lead time? A: Usually no more than 25
days; and some products are in stock for quick delivery.
3 Q:What pixel pitch can you provide? And what product do you have?
A :Indoor Series from P0.9 to P5, outdoor from P2.5 to P10. We
offers a wide range of LED displays, manufacturing,sales, and
exportation of indoor and outdoor fixed/rental led display, LED
Sphere, LED cube, LED transparent window glass display, and
customized led projects etc.
4 Q:What kind of sending/receiving cards are used? A:
Novastar/Colorlight/Linsn. Mostly use Novastar
5 Q:What technical supports can you offer? A:We provide all kinds
of technology trainings for free, including the operation and
maintenance training of the LED screens in our factory. we can
arrange an engineer team to the country of customers to instruct
the installation, it needs customers to pay the relevant fees.
6 Q:Do you provide any free spare parts in each order? A:Yes, a
certain amount of spare parts will be provided for free, spare
parts including module, power cable,signal cable, LED lamp, IC,
mask, power supply, receiving card, etc.
7 Q:What’s your warranty of your products? A:The standard warranty
is 2 year after shipment.
