Indoor HD P3.9 stage LED screen display for stage background
playback video, 3840HZ refresh rate
1. Cost Saving for Installation and Maintenance
Fast locks design, cabinets can be easily assemblied in 7 seconds.
Dual-maintenance, no need fan, noiseless, low power comsumption.
Vertical / Horizontal viewing angle 160 degree.
Calibration for high quality picture.
2. P3.9 indoor stage background led display big screen Application
Places
Ideal for super market, Shopping mall, hospital, bank, enterprises,
government offices, exhibition hall, hotel, sports stadium center,
customs, staging area,car exhibition, airport, transportation,
parks, TV.
Product specification
| SMD P3.91 |
| Lamp size | 2121 |
| Resolution/mm | 3.91 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 64510/m² |
| Module resolution | 64x64 |
| Module size/mm | 250x250 |
| View distance | ≥2m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/8 |
| Frame rate | 60Hz |
| Refresh frequency | >4200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1000W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check,
temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Product Overviews
| Items | Indoor Led display:
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
| Material | steel,aluminum ,die casting aluminum |
Payment
terms | 30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |
| Using Range | Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on. |

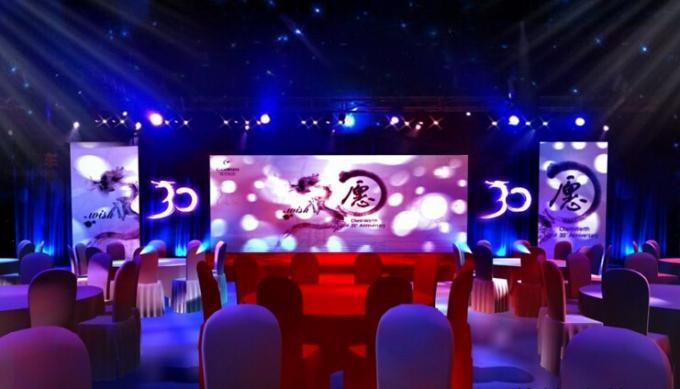

Our case
Features
1. Seamless --- precision cabinet, light weight and more durable.
2. Quality LEDs --- with wide viewing angle to ensure vivid and
sharp images and video.
3. High refresh rate and high gray scale --- to ensure color
consistency and better images
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
FAQ
1. How long could i receive the inquiry reply ?
A: You will get a reply within 24 hours.
2.How long do you provide warranty time ?
A: Different product offer different time frame warranty, but all
product here we offer 2 year at least warranty
3.How long will it take to deliver goods ?
A: We will start preparing goods when we get your bank receipt. The
package will be shipped out in 1-2 working days after we get your
payment.
4.What about your pre-sale service and post-sale service?
A: For pre-sale service: We have a professional sales team and a 12
years technical team who are willing to answer your question 24/7.
We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the
screens, and change the boken modules with spare parts.
Also, we can send technicals to your country to solve problems.
Mostly, our led display will not have big problems within warranty
time!
5. How can you ensure the led display product quality?
A: Our led display screen quality is our core competence, for 7
years, what we rely on.We have each stardard process to make
quality products.
