P5 indoor HD rental LED display for live sports / performance /
concert, high brightness
1. What is LED?
LED stands for Light Emitting Diode, a kind of semiconductor which
is used to give and receive the electronic signal into infrared
rays or light, using the characteristics of compound semiconductor.
2. What are Pixel Pitch and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Configuration is the description of the consistence of a
pixel.
♦ Product specification
| indoor SMD P5 |
| Lamp size | 5 |
| Resolution/mm | 5 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 40000/m² |
| Module resolution | 64x32 |
| Module size/mm | 320x160 |
| View distance | ≥3m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >2500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1100W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
| Product overviews |
| Items | Indoor Led display:
P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Dance floor led display |

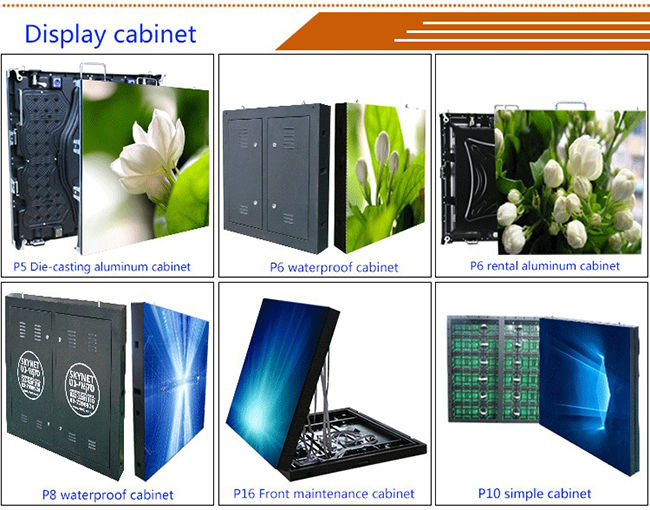

| Material | steel,aluminum ,die casting aluminum |
| Certificates | CE, FCC,RoHS, CCC, UL |
Payment
terms | 30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |
| Using Range | Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on. |
♦ About us:
Established in 2005, clients cover more than 50 cuntries, Mainly
USA, Europe, dubai, north and mid america, south america, asia. As
a high-tech enterprise integrated with scientific research, design,
production, maintenance, sales and system integration, we have a
professional high-quality technical R & D team,rich experienced
engineers and professional product development and design
engineers,excellent marketing team, pre and after-sales 24 hours
service. Even face with harshest environment,we can carefully
choose different suitable materials and make the best offer.
Small Pixel LED Screen for Clearer Pictures
The Small Pixel LED Display features small pixel modules which
presents clearer and vivid images even in low brightness and dark
days. The display is suitable for various applications including
security monitoring center, scheduling command platform, smart
city, television studio and high-end meetings.
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
Our team will be forever here to offer you full supports
