SCX LED 4K HD led display indoor led video wall P3 unit 576x576mm
led advertising screen
church stage/conference/studio fixed wall installation black
SMD2020 3840Hz high refresh indoor p3 led screen
Features:
1. SMD3-IN-1 technology are used for indoor LED display
2. wide view angle:150 inhorizonal and 120 in vertical
3. special design and advanced SMT technology improves the heat
dissipation
4. with high fresh rate controller, guarantee that no scan line
when taking photos
5. regular shape and special shape(such as curve,round) can be
designed
6. easy for assembleing and connection with the connector added
7. high color uniformity and clear image can bring you a vivid
audio visual effect
8. both front access and rear access areavailable
indoor P3 led diplay Specifications:
| SMD P3 |
| Resolution/mm | 3 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 111111dots/square meter |
| Module resolution | 64x64mm |
| Module size/mm | 192x192mm |
| View distance | 3-30m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | 900cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/32 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | 3840Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

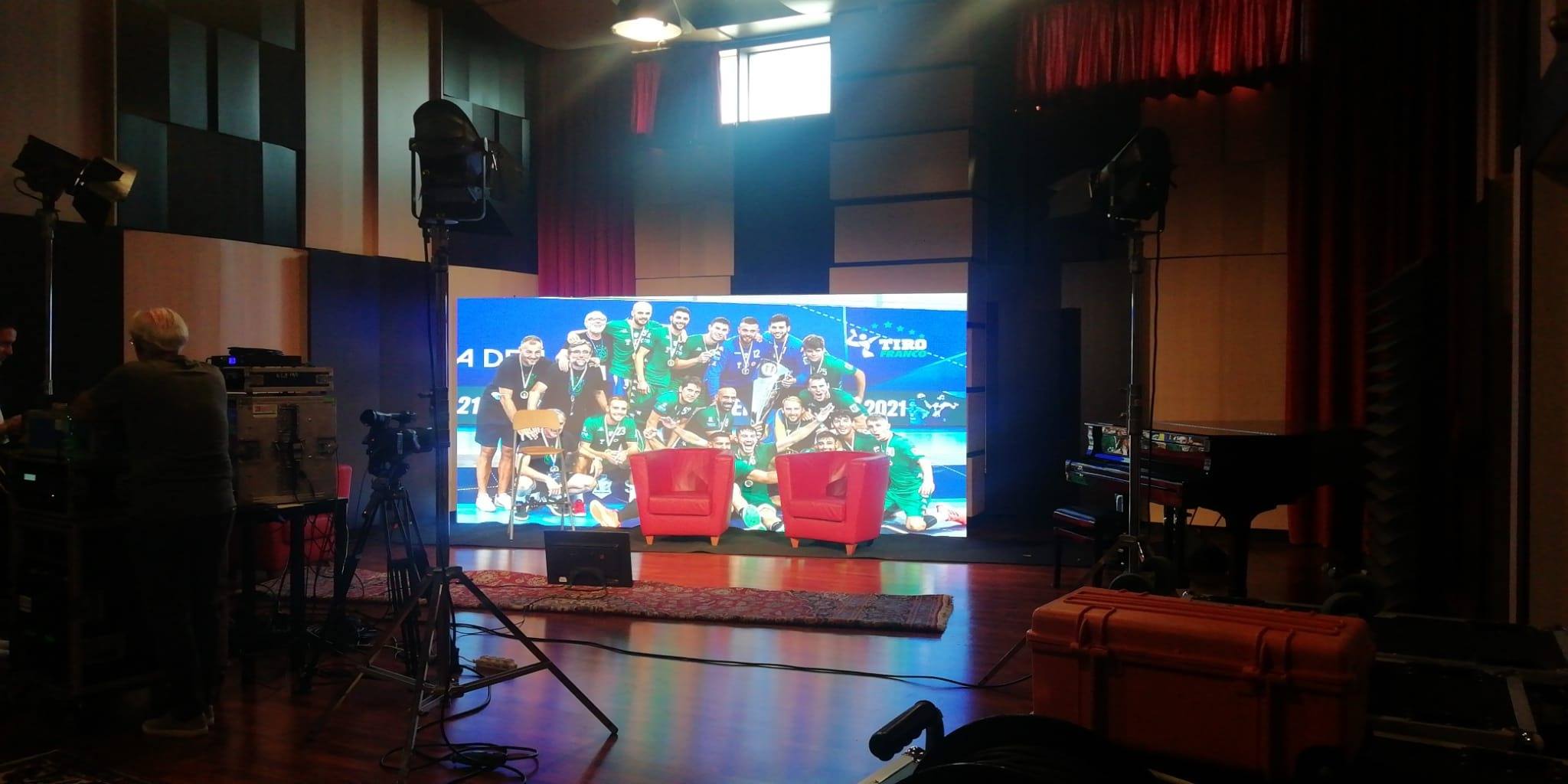

Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality
goods.
♦ Packaging and shipping
Wooden case or flight case package are available.

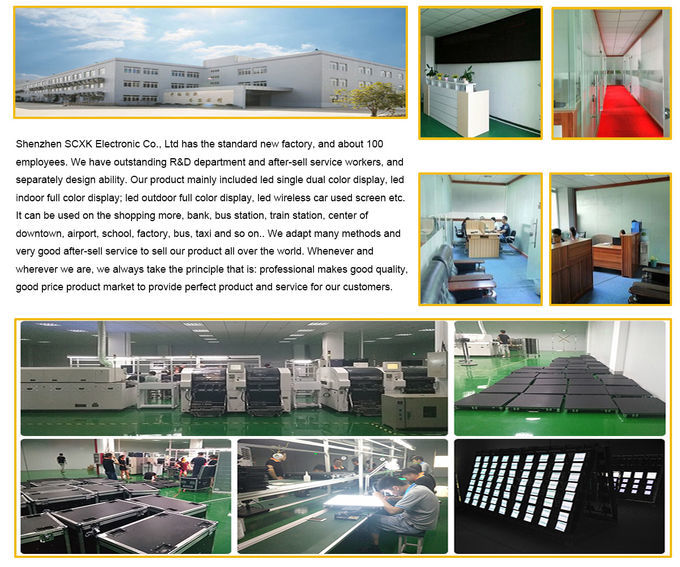

our company
♦ Why choose us:
Continues Quality
With more than 12 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
FAQ
Q1. Are you trading company or manufacturer ?
A: We are led display manufacturer
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 15 to 18 days after receiving your
advance payment. The specific delivery time depends on the items
and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our
customers benefit
2. We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come
from.
