    Outdoor Full Color 960 x 960mm Cabinet Size Wall-mounted Fixed Advertising LED Display P4 P5 P8 P10

    Ask Lasest Price
    Brand Name : SCX
    Model Number : SMD P10
    Certification : CB/CE/ROHS/FCC/ISO/UL
    Price : negotiation
    Payment Terms : L/C, D/P, T/T, Western Union, D/A, MoneyGram
    Supply Ability : 4300 sqm month
    Delivery Time : 5-12 working days
    • Product Details
    • Company Profile

    Outdoor Full Color 960 x 960mm Cabinet Size Wall-mounted Fixed Advertising LED Display P4 P5 P8 P10

    SCX LED P10 outdoor LED Display Screen LED full Color High definition RGB HD fixed led display


    ♦ Technical specification


    outdoor SMD P10
    Resolution/mm10
    Pixel configuration1R1G1B
    Pixel density/pixels/m²10000/m²
    Module resolution32x16
    Module size/mm320x160
    View distance4-250m
    Single point brightness adjustCan be added
    Single point color adjustCan be added
    White balance brightness>8000cd/㎡
    Color temperature6500K-9500K
    Horizontal view angle120(degrees)
    Vertical view angle60(degrees)
    Signal Process bit10 or 16bit
    Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distancesInternet cable:100m, multimembrane:500m, monofilm:2km
    Driving modeConstant driving current
    Scanning mode(1/4)
    Frame rate60Hz
    Refresh frequency>3000Hz
    Control modeComputer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point<1/10000
    Working hours≥72hours
    Mean Time Between Failure>5000hours
    Life time100000hours
    Life-all-white(brightness halving)50000hours
    Environment temperature rangeOperating temperature range: -20-45℃
    Maximum power:/㎡<950W
    Average power:/㎡<350W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environmentWindowsNT,Windows1999,WindowsXP
    Luminous point width between centresDeviation<3%
    Brightness uniformity<10%
    Color uniformity(chromaticity coordinate)±0.003
    Power supply requestAC85-264V(50Hz-60Hz)
    Contrast(1000:1)
    System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working)working:10-95%
    Humidity(storing)storing:10-95%

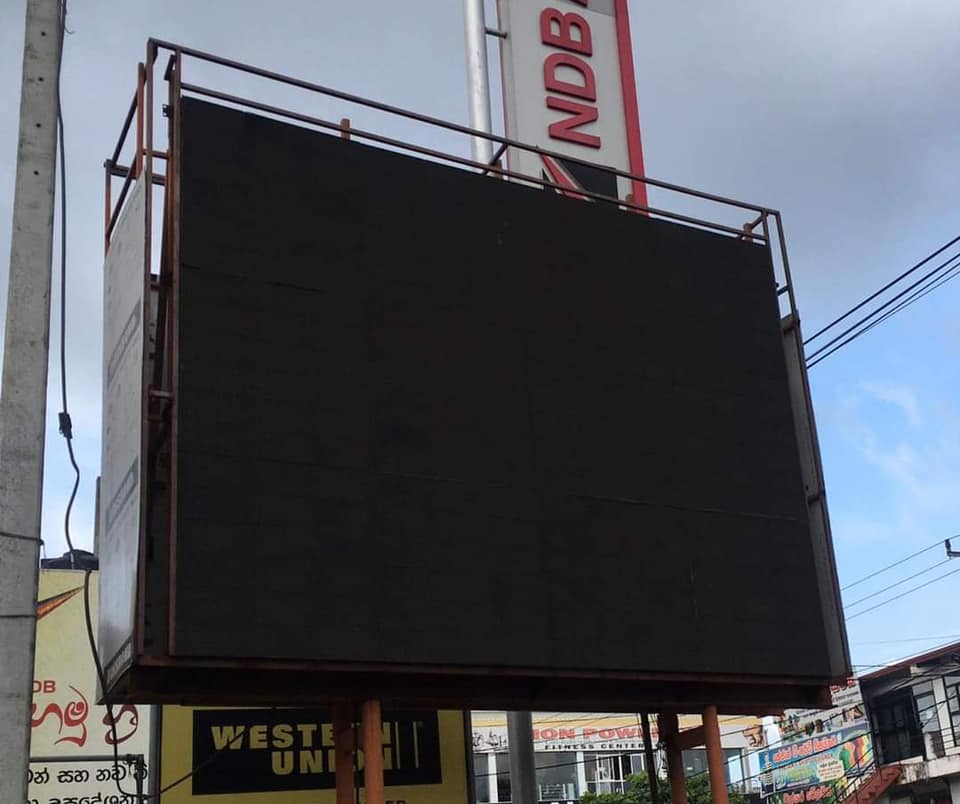

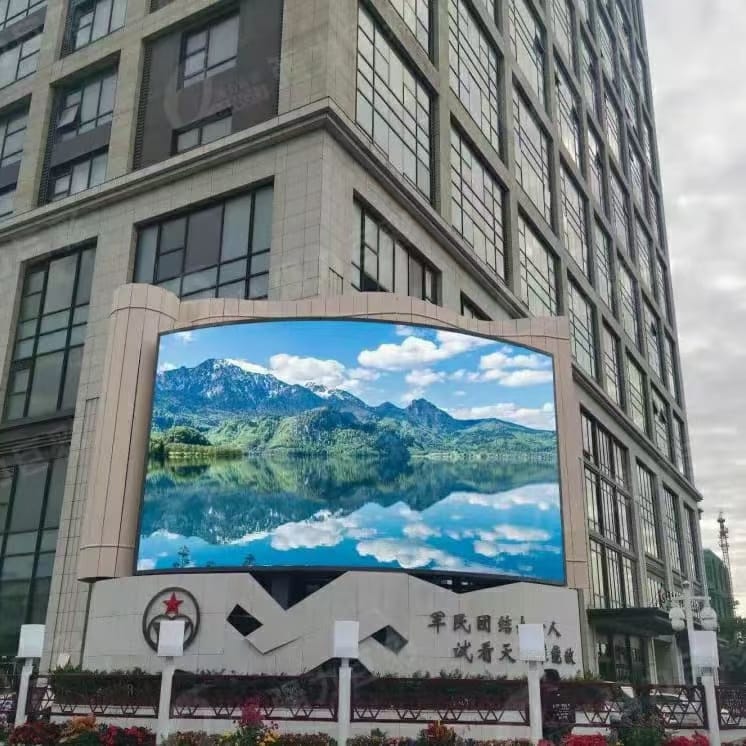

    Our case


    FAQ

    Q1. Can I have a sample order for led screen?

    A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

    Q2. What about the delivery time?

    A: Sample needs 3-5 days, and average Production time is 7-15 working days after receiving the deposit.

    Q3. Do you have any MOQ limit for led screen order?

    A: Yes. Led module: 1 pcs; Led screen: 1 m2.

    Q4. What's your payment term?

    A: We accept T/T, Alibaba Trade Assurance, Western Union and Cash. At least 30-50 % deposit in advance, and the balance should be paid before delivery.

    Q5. Is it OK to print my logo on led screen product?

    A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

    Q6. What's the warranty of your LED Display ?

    A: 2-5 years warranty .and 8 years life span.

    During the warranty period ,we can offer you related after-sales service.
    Our professional engineering team are ready for your question during 6:00-23:30.

    Q7. How about your after-sale service?

    A: Our after-sale service as below:

    1.We can instruct you how to use and configure your led display, how to do maintenance with spare parts.
    2. We can send professional engineer to your city to offer on-site guide and training.
    3. We have a professional 8 years technical team and patient sales team answering your question during 6:00-23:30.

    Q8: How can I get technical support?

    A: We treasure every customer that shake hands with our HONGHUI .

    We offer you TEAMVIEWER help by Online Video and can send professional engineer to your city to offer on-site guide .
