High Quality full color Indoor rental P3.91 LED display LED Video
wall

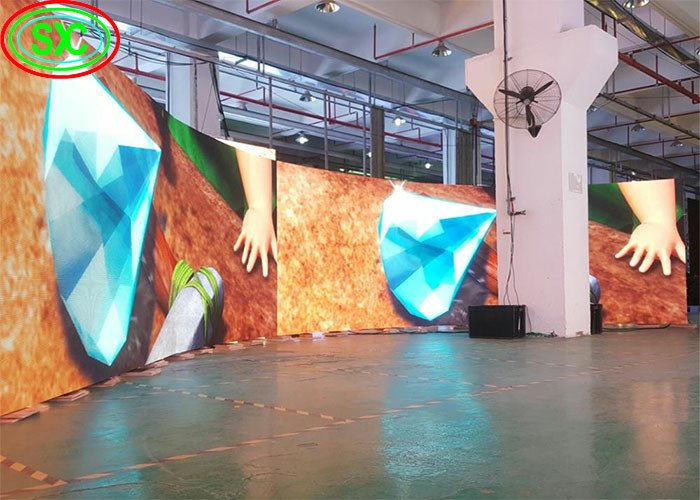

Indoor p3.91 Stage LED display
Pixel pitch: 3.91mm
Driving IC: MBI5124 or MBI5252
Cabinet Size: 500*1000mm and 500*500mm are available
Cabinet Weight: 30kg/sqm
Cabinet Material: Die-casting Aluminum
cabinet hand color: Red, Black...
Cabinet can be curved and flat as your requests
1) P3.91mm, high-definition;
2) Super Slim , only 80 mm depth;
3) Super light weight ,only 7.5Kg/pcs with the power supply and
card;
4) Elegante cabinet design;
5) Seam-less cabinet ;
6) 1200-3840HZ refresh rate, no flicke;
Product specification
| indoor SMD P3.91 |
| Lamp size | 2121 |
| Resolution/mm | 3.91 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 65410/m² |
| Module resolution | 64*64 |
| Module size/mm | 250*250 |
| View distance | ≥2m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/8 |
| Frame rate | 60Hz |
| Refresh frequency | >1800Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1000W |
| Average power:/㎡ | <300W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Products overviews
| Items | Indoor Led display:
P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
| Material | steel,aluminum ,die casting aluminum |
Payment
terms | 30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |
| Using Range | Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on. |
Our service
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's
requirement.
4. Other services, such as special packing design, factory visiting
and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
Warranty:
We guarantee all our displays, modules, parts for two full years.
During this time, we will replace or amend all our goods for free
if there is something wrong with them. We provide lifetime
maintenance and charge only for the raw materials.
We provide technology training for free, which contains the
operation and maintenance training of the LED screens in the
factory. Any associated CAD drawing on how to fix up the display
and some other expert suggestion will be provided.
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Packaging and shipping
Packaging:
1.The led display modules are packed in cartons.
2.The cabinets of fixed led screen packed in wooden case.
3.The cabinets of rental led screen packed in flight case.
The inner packing: Bubble wrap used to prevent product scratches
and pressure damage.
Shipping:
We have three modes of transport:
1.Express:The most popular mode of transport,space and time of full
freedom,flexible,adaptable.
2.Sea transportation:Large transportation capacity,high transport
freedom.
3.Air transportation:Fast transport speed,smooth operation,less
damage to goods.
