P1.6 ultra-small pitch indoor HD rental LED video display
background concert event
♦ Product features
1. Quick installation & maintenance
2. Stronger & more accurate cabinet frame
3. High definition & resolution
4. Better consistency
5. Ultra slim & light weight
6. Can be front service
7.Can be hung up
8.Metal power box for better heat dissipation
9. High cost-effective
♦ Application

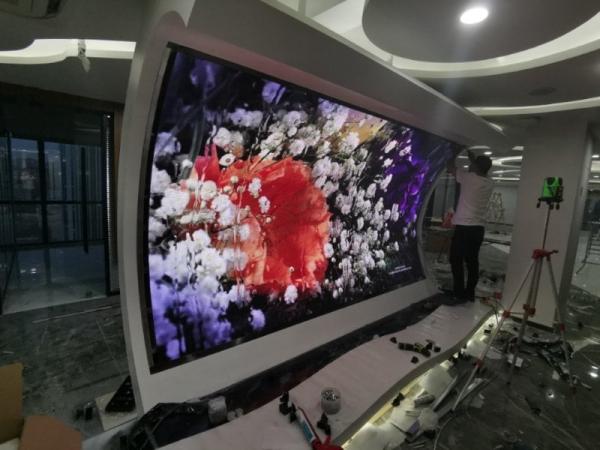

Indoor P1.6 LED display is mainly used for all kinds of indoor
activities, such as conference, exhibition, shopping mall,
government, store, stage show, concerts, celebration etc because of
its very high definition and resolution and easy installation.
♦ Product specification
| indoor SMD P1.6 |
| Lamp size | 1919 |
| Resolution/mm | 1.6 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 360000/m² |
| Module resolution | 120x90 |
| Module size/mm | 200x150mm |
| View distance | ≥0.5m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >2500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/13 |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1100W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
♦ About us:
Established in 2005, clients cover more than 50 cuntries, Mainly
USA, Europe, dubai, north and mid america, south america, asia. As
a high-tech enterprise integrated with scientific research, design,
production, maintenance, sales and system integration, we have a
professional high-quality technical R & D team,rich experienced
engineers and professional product development and design
engineers,excellent marketing team, pre and after-sales 24 hours
service. Even face with harshest environment,we can carefully
choose different suitable materials and make the best offer.
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
FAQ
Q1:LED display models are generally expressed in SCX, such as P2 P3
P4.....P8, P10, what does this mean?
A: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm,
which determines resolution of a display .Pixel pitch is smaller,
led display resolution is higher.
Q2:What pixel pitch should I choose on my display?
A:Using the SCX screen, it is determined mainly by the viewing
distance, the size of the display screen, the desired effect and
the customer budget.
Q3: To order a display ,What kind of information do I have to offer
you?
A:You should provide width/height of the display, the main use, the
viewing distance, the scene photos, special requirements,then I can
provide you with a detailed list of quotations.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and
installation guidance and wiring diagram, free remote debugging. We
can also send our engineers to the site to guide the installation
if needed.
Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of
high quality suppliers in the world, strictly control the
production process, and pass the multiple quality inspection to
ensure that every product is qualified.
Q6:What about the warranty?
A:Two year warranty.
Q7:What about the lead time?
A:Orders less than 50 square meter display, lead time is 15 working
days.
Q8:Can I order a sample?
A:Yes,We welcome customers to order samples to check our product
quality of our products and service.
