    4200Hz Outdoor HD Stage LED Video Wall P5 SMD Screen Concert High Brightness

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : P5
    Certification : CE/ROHS/FCC/ISO/UL
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5000 sqm month
    Delivery Time : 7-10 working days
    • Product Details
    • Company Profile

    4200Hz Outdoor HD Stage LED Video Wall P5 SMD Screen Concert High Brightness

    High Brightness Outdoor HD Stage LED Video Wall, P5 SMD Stage LED Screen Concert


    Application

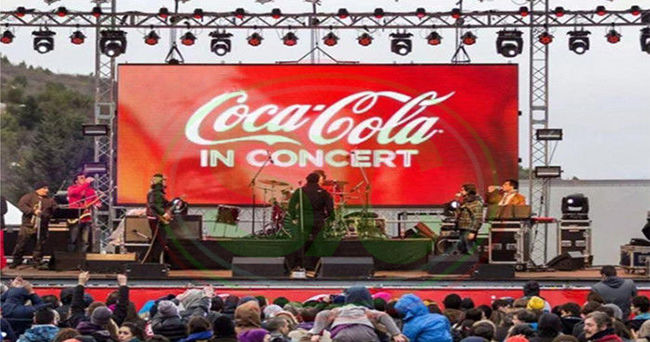

    With High quality black SMD and mature high standard QC from MPLED, our rental led display use for so many indoor/outdoor events, like concert, DJ music, expo, car show, fashion model show, shopping mall promotion, kids activities, wedding, hotel, sports match, beer party, new product presentation, etc.


    Service

    1.Your inquiry related to our products or price will be replied in 12hrs.
    2.OEM&ODM,any your customized lightings we can help you to design and put into product.
    3.Distributoership are offered for your unique design and some our current models.
    4.Protection of your sales area,ideas of design and all your private information.
    5.Best cost performance and perfect service before and after sales.


    Product specification

    SMD P5
    Lamp size2727
    Resolution/mm5
    Pixel configurationRGB 3 in 1
    Pixel density/pixels/m²40000/m²
    Module resolution64x32
    Module size/mm320x160
    View distance≥2m
    Single point brightness adjustCan be added
    Single point color adjustCan be added
    White balance brightness>8000cd/㎡
    Color temperature6500K-9500K
    Horizontal view angle120(degrees)
    Vertical view angle60(degrees)
    Signal Process bit10 or 14 bit
    Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distancesInternet cable:100m, multimembrane:500m, monofilm:5km
    Driving modeConstant driving current
    Scanning mode1/8
    Frame rate60Hz
    Refresh frequency>4200Hz
    Control modeComputer synchronous
    Brightness adjusted rangeManual, automatic operation, stepless continuous adjusted
    255 steps. No grey loss
    Out of control point<1/10000
    Working hours≥72hours
    Mean Time Between Failure>5000hours
    Life time100000hours
    Life-all-white(brightness halving)50000hours
    Environment temperature rangeOperating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡<1000W
    Average power:/㎡<280W
    Self-check technologyLED spot self-check, communications check, power check,
    temperature monitor(need customization)
    Remote monitoringRemote supervision and control, record potential fault,
    send out warning signs to the operators.(need customization)
    Software environmentWindowsNT,Windows1999,WindowsXP
    Luminous point width between centresDeviation<3%
    Brightness uniformity<10%
    Color uniformity(chromaticity coordinate)±0.003
    Power supply requestAC85-264V(50Hz-60Hz)
    Contrast(1000:1)
    System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working)working:10-95%
    Humidity(storing)storing:10-95%

    Production process:
    1) Incoming Inspection→2) SMD→3) Plug-in
    →4) Wave Soldering→5) After Welding→6) Testing
    →7) Semi Finished Aging→8) Module Assembly
    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

    Features
    1. Seamless --- precision cabinet, light weight and more durable.
    2. Quality LEDs --- with wide viewing angle to ensure vivid and sharp images and video.
    3. High refresh rate and high gray scale --- to ensure color consistency and better images


    Packaging and shipping
    Wooden case or flight case package are available.
    Shipping by sea,air or DHL,multiple shipping ways for your choice.
