Lightweight programmable rental LED display portable easy to
assemble and disassemble led display
Product Description
P3 indoor led screen

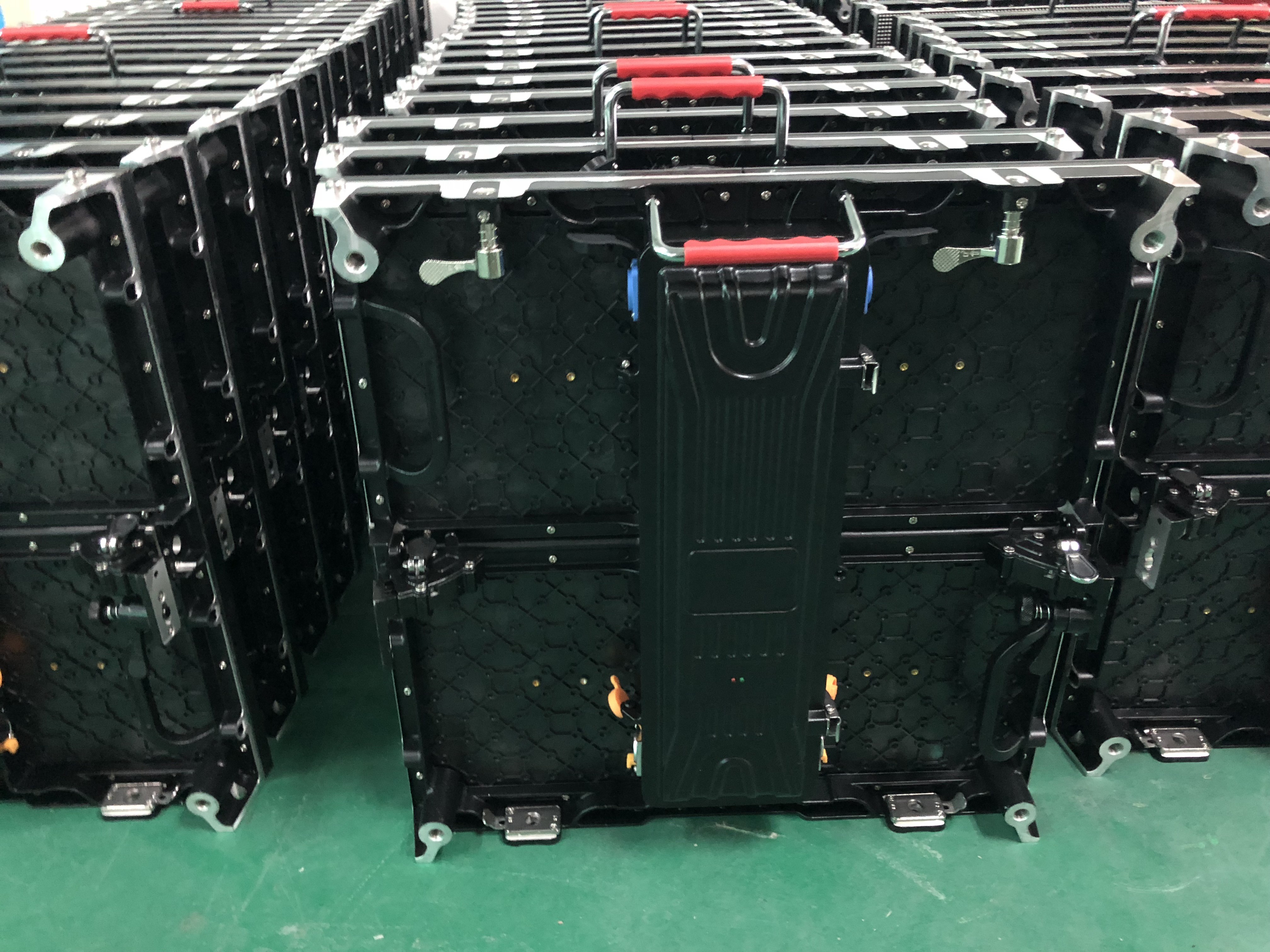

1. Die casting aluminum cabinet with super light weight and high
strength, good heat dissipation (6 °lower temperature than plastic
module)
2. Toolless and fast installation
3. straight and curved available
4. deliver vivid color and stunning picture
| Item | Specification |
| LED Parameters | Luminous Intensity | R:620-630, G:520-535, B:465-475 |
| Wavelength | R:400-500mcd, G:1800-2200mcd, B:350-450mcd |
| Test Condition | R:25℃,20mA, G:25℃,20mA, B:25℃,20mA |
| LED Module | Led Type | SMD 3 IN 1 |
| Pixel Pitch | 3mm |
| LED Shape & Size | 3 mm SMD 2121 |
| Encapsulation Type | 1R1G1B |
| Module Dimension | 192 mmx192 mm |
| Module Resolution | 64×64 |
| Module Weight | 0.20 KG |
| Pixel Density | 111111 |
| Driving Mode | 1/16 |
| Module Power Consumption | 20 W |
| LED Cabinet | Cabinet Size | 576 mm(W)x 576 mm(H) |
| Cabinet Thickness | 7mm |
| Cabinet Resolution | 192 x192 |
| Module Numbers per Cabinet | 3 pcsx3pcs=9 pcs |
| Cabinet Material | Die Casting Aluminum |
| Optical parameters | Brightness | ≥1800 cd |
| Contrast Ratio | ≥3000:1 |
| Single-point Brightness Correction | Available |
| Single-point Color Correction | Available |
| Surface Evenness | GAP< 1mm |
| Color Temperature Condition | 3500K～9500K,(can be adjustable) |
| Viewing angle | 120°(Horizontal),60°(Vertical) |
| Gray Scale | 16 bit |
| Best View Distance | 3 m~200 m |
| Brightness Adjustment | 0-100% 8 levels |
| Power Supply | Operation Power | AC90-260V 50-60HZ |
| Max Power Consumption | 500 W /m² |
| Average Power Consumption | 250 W /m² |
| Controle System | Control Mode | Synchronous Control by Linsn system |
| Frame Update Frequency | ≥250Hz |
| Screen Refresh Frequency | ≥1000Hz |
| Gamma Correction | (-0.5—5.0) |
| Input Signal Support | Composite,S-Video,Component,VGA,DVI,HDMI,SDI,HD_SDI |
| Control Distance | UTP CAT5E:100m;Multi-mode Fiber:500m;Single-mode Fiber:10km |
| Video Signal | MPG ／MPEG／MPV／MPA／AVI／SWF／RM／RA／RMJ／ASF |
| Support VGA Mode | 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, |
| Brightness Correction | Dot by Dot,module by module,cabinet by cabinet |
| Operating Temp. | - 10° —+55° Celcius degree |
| Operating Humidity | 10 - 90 % RH |
| Operating Life | 100,000 Hours |
| Protection Level | IP34 |
| MTBF | 5000 Hours |
| Out of Control Pixel Rate | 0.01% |
Product Application
Our Service
Pre-sale service:
1.Reply enquiries in 24 hours.
2.Market research and forecast for customer.
3.Provide unique and professional solutions based on customer's
requirement.
4.Other services, such as special packing design, factory visiting
and so on.
In-sale service:
1.Tracking report in producing.
2.Quality test report for every order.
3.Photos and videos as per customer's requirement.
4.Free spare parts.
After-sale service:
1.Lifetime free maintenance and upgrade.
2.Complaint respond period within 24 hours; maintenance guidance
and problem solution supplied in 48 hours.
3.Customer satisfaction tracking report.
4.Free technician training.
5.Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6.Special service for big project, such as stadium, exhibitions,
squares and so on.
our case
FAQ
1. What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor
which is used to give and receive the electronic signal into
infrared rays or light, using the characteristics of compound
semiconductor. This is used for household appliances, remote
controller, electric bulletin board, various kinds of automation
appliances.
2. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel
Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a
pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue
lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand,
the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
4. What is Drive Method, driving IC and Power supply
Drive Method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan,
the latter one contributes to less brightness than the former. We
always use the static outdoor, and use the different kinds of scan
indoor.
Driving IC is the generic term for several kinds of IC, that are
used to control the LED lamps, and as a bridge between the control
system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC
into 5V DC. It always seems like a box in the cabinet.
5. What is viewing angle?
Viewing angle is the maximum angle at which a display can be viewed
with acceptable visual performance. It includes horizontal viewing
angle and vertical viewing angle.
