Features:
1. High waterproof IP65, suit for outdoor application.
2. Cabinet material has Iron Cabinet,Aluminum Cabinet, Magnesium
Alloy Cabinet selection.
3. Fully front service,module size is 320*320mm, cabinet size is
customized.
4. High brightness to used for outdoor led billboard display,
brightness can adjusted automatically.
5. Aviation plug design, easy and fast to connect each cabinets and
light them up.
6. High quality with Nationstar led lamp, high refreh IC driver...
7. Suit for P10 Outdoor,P8 Outdoor,P6.67 Outdoor,P5.3 Outdoor,P4
Outdoor, P3.33 Outdoor
♦ outdoor p6.67 led display Product specification
| outdoor SMD P6.67 |
| Lamp size | 3535 |
| Resolution/mm | 6.67 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 22478/m² |
| Module resolution | 32x16 |
| Module size/mm | 320x160 |
| View distance | ≥5m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 120(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >1200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1100W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

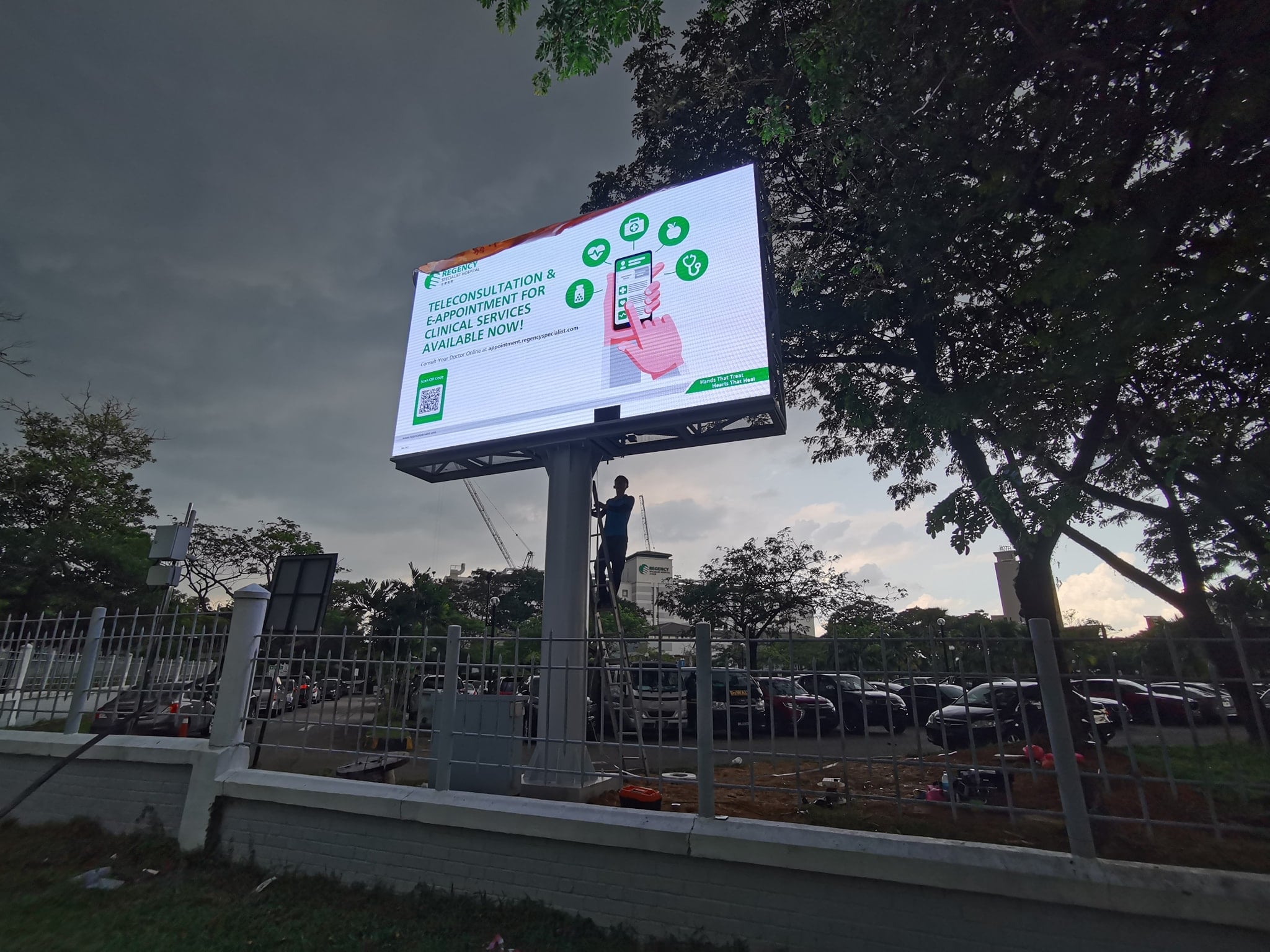

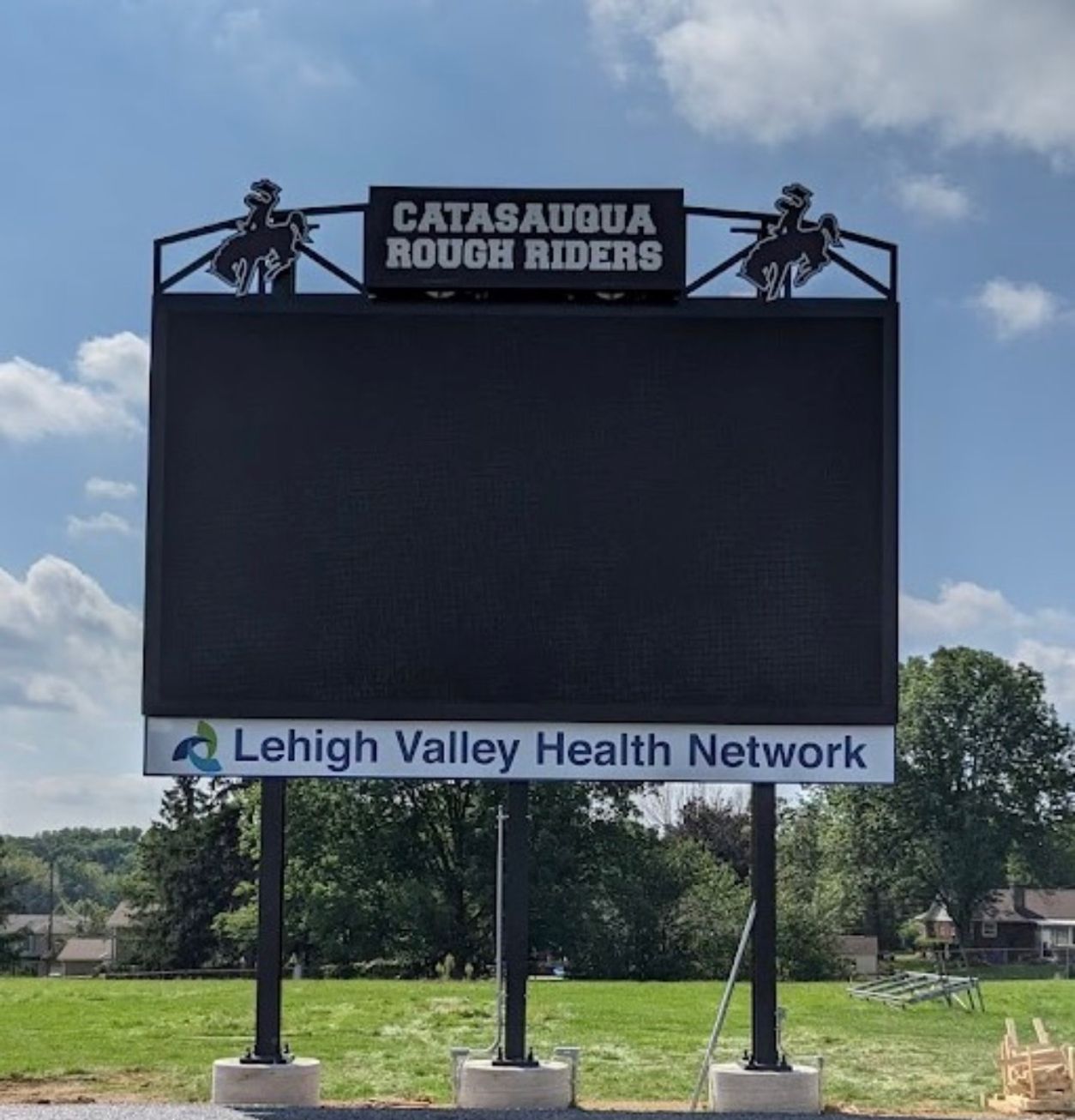

Our case

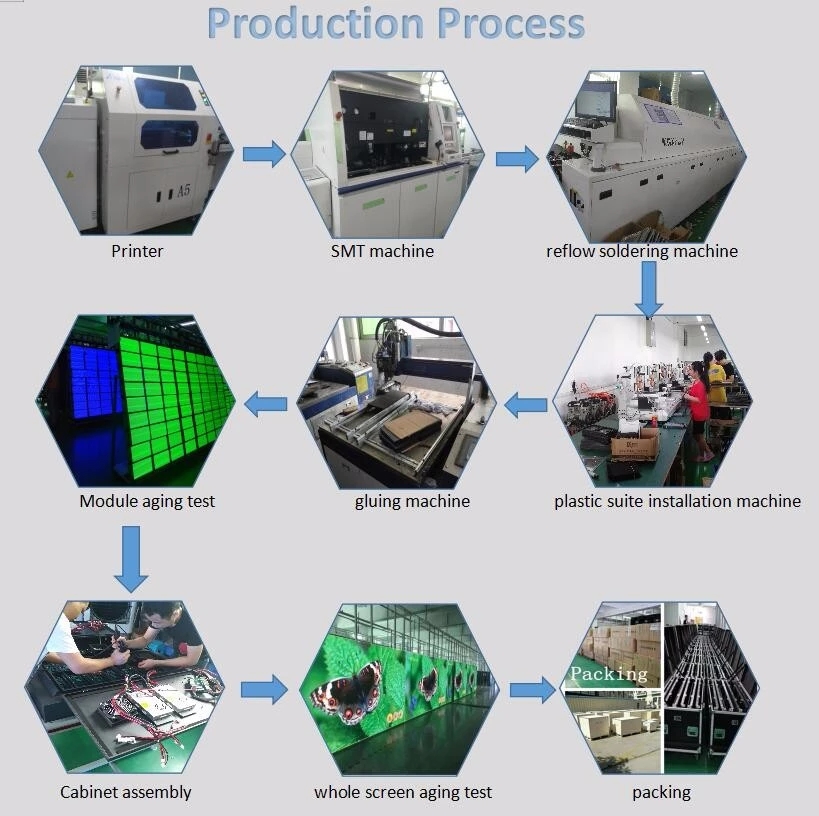

♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Our company
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality
goods.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
♦ Packaging and shipping
FAQ
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality.We will
give for free after you place an order.
Q2. What about the lead time?
A:Sample needs 5-7 days, mass production time needs 2-3 weeks for
order quantity more than
Q3.How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q4. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the goods and places deposit for formal
order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on leddisplay product?
A: Yes. Please inform us formally before our production and confirm
the design with you.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
