    Stadium LED Display High Quality Waterproof Outdoor P10 960X960MM RGB Football Large Stadium Perimeter ,Nova control

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : P10
    Certification : CE/ROHS/FCC/ISO/UL/CB
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 5600 sqm month
    Delivery Time : 8-12 working days
    • Product Details
    • Company Profile

    Stadium LED Display High Quality Waterproof Outdoor P10 960X960MM RGB Football Large Stadium Perimeter ,Nova control

    Waterproof outdoor P10 Stadium Perimeter LED Display for rental football stadium perimeter led screen display


    ♦ outdoor p10 Product specification

    outdoor SMD P10
    Resolution/mm10
    Pixel configuration1R1G1B
    Pixel density/pixels/m²10000/m²
    Module resolution32x16
    Module size/mm320x160
    View distance5-400m
    Single point brightness adjustCan be added
    Single point color adjustCan be added
    White balance brightness>8000cd/㎡
    Color temperature6500K-9500K
    Horizontal view angle120(degrees)
    Vertical view angle60(degrees)
    Signal Process bit10 or 16bit
    Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distancesInternet cable:100m, multimembrane:500m, monofilm:2km
    Driving modeConstant driving current
    Scanning mode(1/8)
    Frame rate60Hz
    Refresh frequency>3000Hz
    Control modeComputer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point<1/10000
    Working hours≥72hours
    Mean Time Between Failure>5000hours
    Life time100000hours
    Life-all-white(brightness halving)50000hours
    Environment temperature rangeOperating temperature range: -20-45℃
    Maximum power:/㎡<900W
    Average power:/㎡<300W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)

    Software environmentWindowsNT,Windows1999,WindowsXP
    Luminous point width between centresDeviation<3%
    Brightness uniformity<10%
    Color uniformity(chromaticity coordinate)±0.003
    Power supply requestAC85-264V(50Hz-60Hz)
    Contrast(1000:1)
    System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working)working:10-95%
    Humidity(storing)storing:10-95%

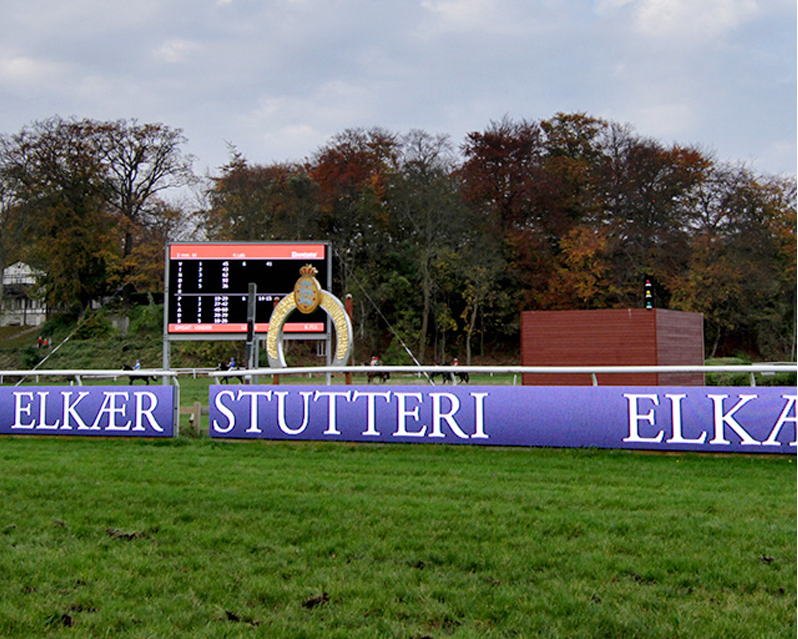

    Our case

    Features:
    1: Indoor and outdoor solutions
    2: Waterproof, No worry rainning
    3, Customized LED screen size
    4, Customized LED screen shape

    5, Support stadium perimeter LED display, hanging and stacking installations

    6. Easy maintenance


    Why Choose LEDFUL
    ▲Deep Customized & OEM
    ▲Listen to you, think more for you.
    ▲Lifelong maintenance with reasonable price
    ▲Clear cost initially to save your time and money.
    ▲Provide with innovative and satisfying products
    ▲Excellent product quality, quick and professional services
    Always ready for your any change on LED display details.
    ▲Recommend the best proper solution for your LED project.
    ▲Catch things what you missed before LED display production.
    Take good care of each detail for your products, packages,shipping

    Packing and Shipping

    Our company

    ♦ Production process:

    1) Incoming Inspection→2) SMD→3) Plug-in

    →4) Wave Soldering→5) After Welding→6) Testing

    →7) Semi Finished Aging→8) Module Assembly

    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing


    FAQ

    Q1: What is the lead time?
    A: Sample:2-5days; small quantity: 15-20days; large order: 20-25days; according to quantity.

    Q2: Is it all right to make customers’own brand name?
    A: That’s all right to make your own brand name.

    Q3: Is it available for samples?
    A: yes, of course. sample is free, and you may pay freight cost. that would be reasonable.

    Q4:Is there a middle man draining your profit ?
    A:Get rid of them,it’s information age.Factory Directly Supply,Provide good price, high-quality, quick-delivery, best quality
    service.

    Q5:How to place an order?
    1. Sample approval.
    2. Client makes 30% deposit or open LC after receiving our PI.
    3. Client approves our pp sample, and get the testing report if any necessary .
    4. Mass Production.
    5. Arrange shipment.
    6. Supplier arranges necessary documents and sends copy of these documents.
    7. Client effect balance payment.
    8. Supplier sends original documents or telex release the good.
