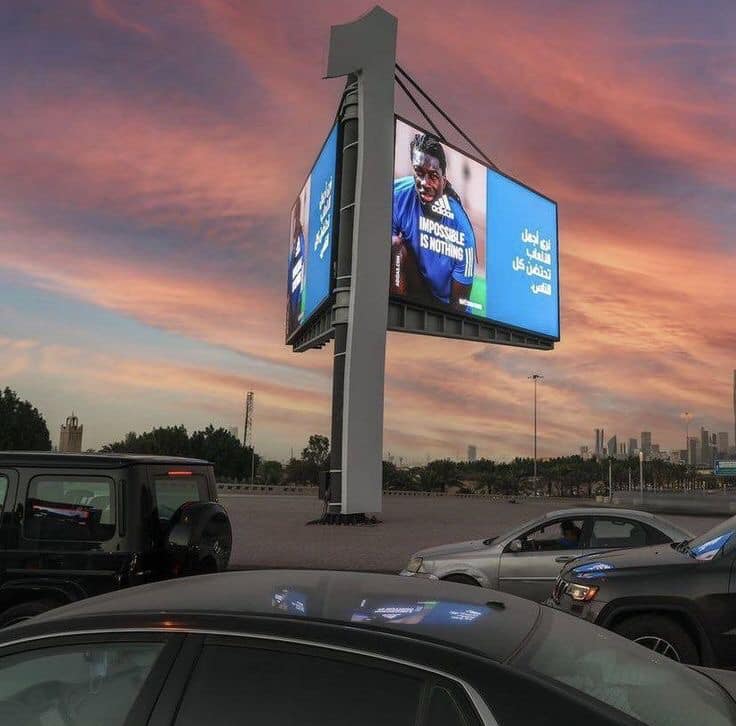

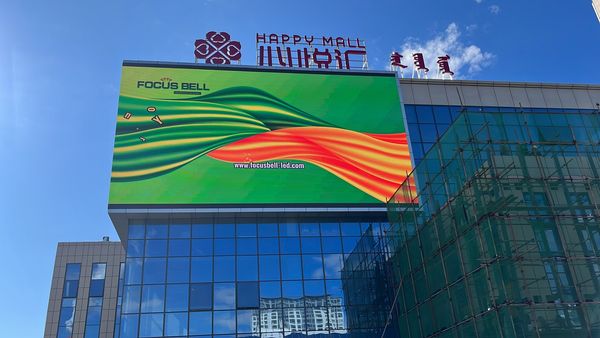

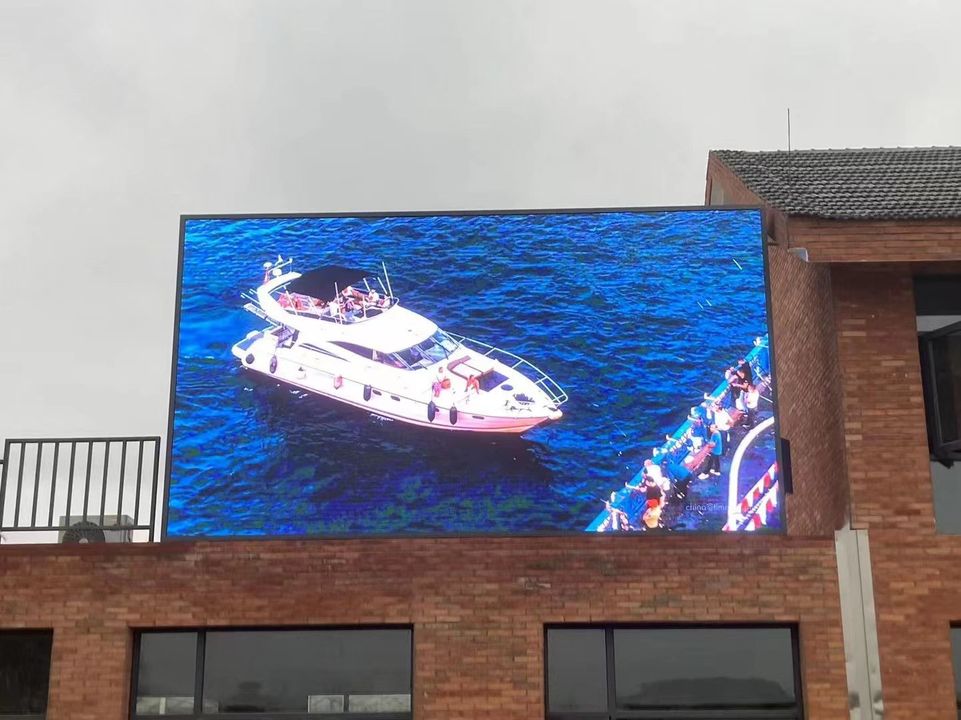

P10 Outdoor Large Display Advertising LED Screens Iron Cabinet IP65
HD Digital
| SMD P10 |
| Resolution/mm | 10 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 10000dots/square meter |
| Module resolution | 32x16mm |
| Module size/mm | 320x160mm |
| View distance | 10-60m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | 5000cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/4 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | 1200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Normal questions:
Q1: What's the pixel pitch for choice?
A1: Indoor series: P1.25, P1.56, P1.667,
p1.875,p2,p2.5,p2.6,p3,p3.91,p4
Outdoor series: P4.8, P5.9 MG5 outdoor series: P5.9, P6.9, P7.8,
P8.9, P10.4
Q2: Where is it used for?
A2: Performance shows, sports activities, advertising, information
publishing, celebrating activities, hotel entertainment ect.
One type realize Multi Function for creative stage led screen,
advertising led screen, sky backdrop curtain, stadium screen, dance
floor and Outdoor screen for indoor use.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with several different
controlling systems,such as Nova, Mooncell,linsn and so on.
Q4: What after service can provide?
A5: One year warranty, 24h online technical support, back-visiting customer for each year
Sending technical personnel to the scene in customers significant
activities
Advantage 1. High brightness: Due to the use of high-brightness LED lights,
viewers can see the image clearly at a long distance under strong
sunlight. 2. Long service life: Using high-quality LED lights as
the core material, the screen adopts patented PCB design, which
fundamentally guarantees the long life of the product.
Fundamentally guarantees the long life of the product. 3. Stable
performance: Special treatment is carried out to combat
electromagnetic waves, and the screen adopts distributed scanning
and modular design, with stable performance. Modular design, more
reliable and stable work. 4. Delicate image: Non-linear correction
technology makes the image delicate and clear, and the video image
vivid and lifelike. 5. Excellent flatness: The precision design of
the module frame components controls the deviation of adjacent
modules within 0.1 mm, with excellent flatness and no mosaic
phenomenon.
