Shenzhen hot sale full color P6 outdoor led display/big tv
advertising screen/led tv advertising
Technical Parameters
Pixel Pitch | 6mm(H*V) |
Pixel Density | 27889dots/m2 |
LED Shape | SMD3535 |
LED Configuration | 1R1G1B |
Module Size | 192mmx192mm |
Driving Mode
| 1/8Scan,constant current |
Cabinet Size | customized as the module size |
Cabinet Weight | 58kg/㎡ |
Brightness After Calibration | ≥5500cd/m2 |
Service access | Rear |
Contrast | 2000:1 |
View Angle | 140°(horz.), 140° (vert.) |
Max Power Consumption | 900 W/sq.m |
Average Power Consumption | 300 W/sq.m |
Best viewing distance | 6m-50m |
Gray Scale | 12-16bits for red,green,blue |
Colors | 16777216 |
Input voltage (AC) | 110V ~ 240V |
Frame Frequency | 50Hz-75Hz |
Refresh Rate | ≥600Hz |
Brightness Adjustment | 0-100% |
Gamma Correction | ( -0.5 -- 5.0 ) |
Color Temperature | 6500-9000K |
Operation System | Win7&XP |

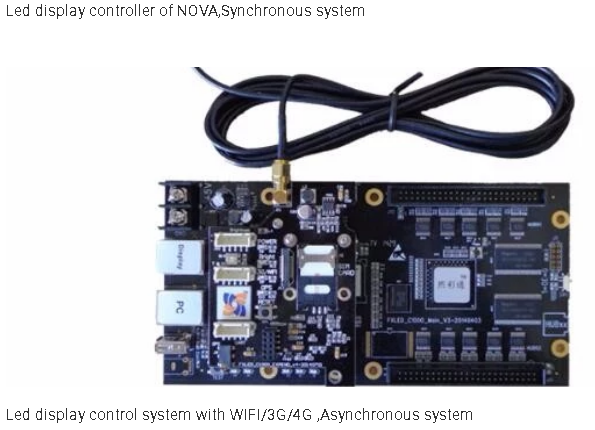

Control Mode | Synchronization with PC or asynchronous wifi /3G |
Stock Temperature | (-40℃～+85℃) |
Operating Temperature | ( -30℃～+50℃ ) |
Operating Humidity | 10-90% RH |
Life Span | 100,000Hours |
MTBF | ≥10,000Hours |
IP Rating(Front/Rear) | IP65 |
Flatness of the screen | ≦1mm |
Control Distance | UTP CAT5E:100m,Multi-Mode Fiber:500m,Single-Mode Fiber:15km for
Nova contorller,if 3g/wifi no distance require |
Product Description
Led display introduction:
1) High intensity and can be adjusted, so can meet the request of
the customers according the application environment. 2) Best
equality, commendably solve the problem of the mosaic, have the
excellent consistency of light 3) To pictures and character, have
clear, exquisite and real display effect 4) Big viewing angle to
110 degree at horizontal line, 60 degree at vertical line, you can
see at every angle at this range, no picture change, no color
excursion 5) Can repair each led lamps, so the cost of maintain is
lower, and easy to repair.
Products Advantages:
1) Price Advantage: we have the best competitive price at the
market, also have the same even better quality. 2) Performance
Advantage: Best Equality, high consistency, Big viewing angle, can
repair each led lamps 3) Quality advantage: From material to
finished product, from design to produce, we control all steps,
that's the guarantee of the quality and reliability. 4) Service
advantage: Better service at same situation, better cooperation at
same service!
Products application area:
1) Full color LED display : Equally or compactly make the red,
green, blue color in one dot, equally distribute at the panel, so
make the whole display 2) Usually apply for physical sports,
advertisement, bank, stock exchange, station, port, marketplace,
telecommunication, department, school, monitor, restaurant,
entertainment
Installation Way
Remark:
1.The Mosaic: suitable for smaller indoor screen. Due to the small
space, in order to do not take up space, according to the screen
size on the wall to dig out the area of the same size, the LED
display embedded in the wall. Wall for the solid wall. With the
method of before the maintenance, the cost is higher.
2. The wall: more suitable for the installation of indoor LED
display, smaller (below 10 square meters), wall is solid walls,
hollow bricks or simple retaining wall are not suitable for the
installation.
3. Hanging: more suitable for the station LED display, LED display
at the airport and other places of large signage. Request screen
area is lesser. (below 10 square meter) requirements and must have
the appropriate installation location, such as beams or columns
above, and the screen body in general to add back cover.
4. Pillar type: used for the installation of outdoor advertising
LED display, eye shot is open, around the place empty, such as
square, parking lot, etc. According to the size of the screen area
and can be divided into the installation of single column and
double column type.
5. Roof type: mainly applied to outdoor advertising LED display,
the installation location is mainly the roof of the building, with
the increase of building height to consider windproof level along
with the increase.
Our Service
Pre-sale service
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide professional solutions based on customer's requirement.
4. Offer sample and all document as customers required.
5. Other services, such as factory visiting and so on.
In-sale service
1. Tracking report of production.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service
1. Lifetime maintenance and software upgrade.
2. Complaint respond period not exceed 24 hours, maintenance
guidance and problem solution supplied in 48 hours.
3. Free technician training.
4. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
5. Engineer guide installation onsite if needed.
What are the considering factors of the Outdoor LED display screen?
Main questions of outdoor led display as below:
(1)display installed in the outdoor, solarization and drench, blow
and dust, bad working environment, electrical equipment being
wringing and damp will cause short circuit, even fire, cause conk
out, even fire, result in loss.
(2)the display may be attacked by the strong electromagnetism made
by the thunder and lighting.
(3)The big change of the environment temperatures. The Operating
LED display will emit a lot of heating, if the environment
temperature is too high, the molectron of the LED screen maybe
operating un-normally to damage for its bad giving heating out,
finally the LED display system will not operate normally as usual.
(4)The display has a wide range of angle, long viewing distance,
big change of the environment light, especially the direct to the
sunshine.
With these special requirements, the outdoor LED displays needed:
(1) The parts connecting the body of the LED display with the
building must be waterproof and anti-leaking strictly as the
display. The display must have the measurements for water giving
out. Once leaked, it will be given out smoothly.
(2) The lightning rod should be installed on the LED display or the
building. The body and the frame of the display must to keep
connecting with the earth, the resistor of the earth wire should
under 3 Q , so as to the heavy current from lightning can be
discharged in time.
(3) Install the ventilator equipment to lower the temperature, keep
the inner cabinet temperature in the range of -10 ~ 40 centigrade
degree. The back top of the display must install the rolling
electronic fans to give the heating out.
(4) Choose the industrial using IC with the working temperature
range of -10 ~ 40 centigrade degree for fear the LED display can
not start in the low temperature of the winter.
(5) To be seen form a long distance in the high brightness
environment, it must be using the extra high brightness LED lamps.
(6) Choosing the new large angle LED lamps as medium, the LED
display will have a larger angle, vivid colors, consistent
operation and a long life of more than 100 thousand hours. The
medium has a popular package with the hat-edge and square shape in
cylinder, sealed by Silicon glue, assembly without metal. Also the
display has an unique exterior outface, solid and durable, has the
characteristics of anti-dazzle, waterproof, impurity proof,
protection from high temperature and short circuit.
