Indoor HD rgb P4 digital signage panel indoor cubic 360 degree
square LED display
♦ Feature:
1.High brightness /refresh rate/color contrast ratio.
2.Energy saving IC and special design of circuit diagram.
3.Panels were made by high-precision molding plastic injection, no
slit on the screen.
4.Professional radiant calibration system to make sure the color
and brightness uniformity.
5.Perfect heat ventilation, good waterproof and stable performance.
6.First-class LED chip: Supplied by Silan, Cree, Epistar or other
high strictly selected LED chip.
P6mm outdoor smd led display screen, LED Module and LED panel is
with pixel pitch 6mm, the display With 27777pixels per square
meter, is very hot in the LED display now, There can be no manner
of doubt about it. outdoor P6mm led display screen is the most
popular spec of high definition outdoor LED display field.Because
of high quality and reasonable price, our outdoor P6hmm smd LED
display enjoys a good reputation at home and abroad LED display
market, and is affordable to make video wall for advertising.
Outdoor P4mm/P5mm/P6mm/P8mm/P10mm/P16mm Specs available upon
requestOutdoor ,Welcome to contact
♦System extension function
Video camera, HD camera, DVD, can be introduced into the system
♦ Product specification
| indoor SMD P4 |
| Lamp size | 2121 |
| Resolution/mm | 4 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 62500/m² |
| Module resolution | 64x32 |
| Module size/mm | 256x128mm |
| View distance | ≥4m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >2000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/8 |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <900W |
| Average power:/㎡ | <300W |
| Self-check technology | LED spot self-check, communications check, power check,
temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

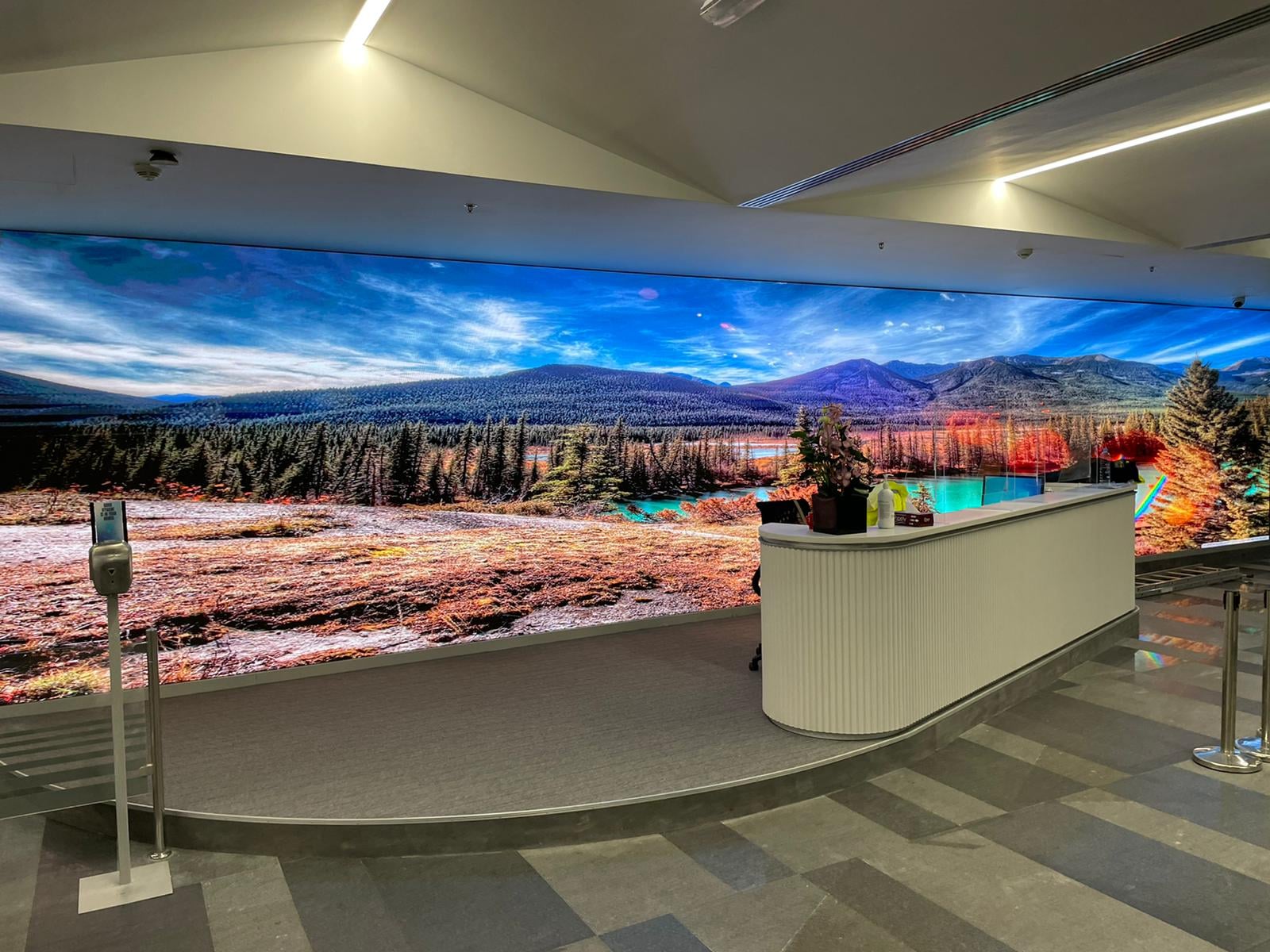

our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
FAQ
Q1. Are you a factory or trading company?
A:We are a factory.
Q2. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q3. What about the lead time?
A:Our products could be shipped by Sea, by Air or by Express. Which
method to be used is based on the weight and size of the package
and with consideration of customer's requirements.
By sea: 10-30 days;By air: 5-10 days ; By express: 3-6days.
Q4. What's the shipping way, shipping time?
A:Our products could be shipped by Sea, by Air or by Express. Which
method to be used is based on the weight and size of the package
and with consideration of customer's requirements.
By sea: 10-30 days;By air: 5-10 days ; By express: 3-6days.
Q5. How to proceed an order for led light?
A: Please send us your purchase order by Email, Fax, Skype, Whats
App, Facebook or making a call, and we will send you PI as your
approval. Please let us know the following information for your
order.
1) Product information: Quantity, Specification (Item , logo and
Packing requirement)
2) Delivery time required
3) Shipping information: Company name, Detailed shipping address
with zip code and Phone number.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
