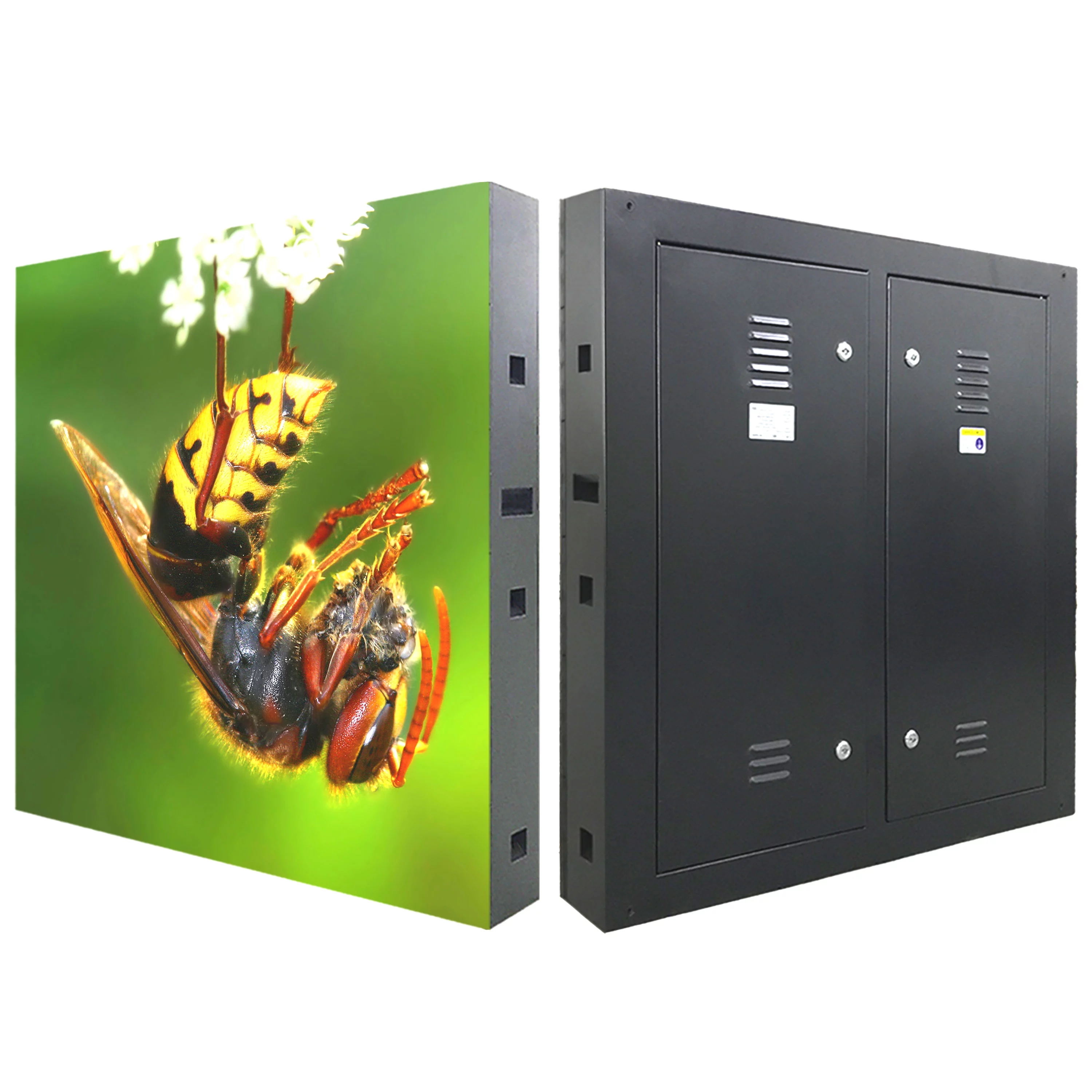

Outdoor Waterproof P8 Fixed Advertising Video Screen SMD LED
Display Billboard led Advertising
1. LED Electronic Display System is a multimedia hi-tech product
that blended optical, electronic and acoustic signal processing
technologies. It includes the followings devices:
Display screen
Control computer and communication system
Computer and its related peripheral
Video peripheral
System software
2. System Features:
Available for connection to an external scanner, and accepting
various pictures, graphs and handwriting inputs.
Accepting video signal (TV, VCR, DVD), and showing dynamic images
as well as graphs and animations.
The control computer can act as a workstation on network, and read
real-time data from specified computer, then show them on its
display.
Various methods for images display, and easy replacement for
arranged programs whenever (including play sequence, time length,
etc.)
Product Specifications
Module Parameter:
| Pixel pitch | 8mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD 3535 |
| Module size | 256*128mm |
| Module weight | 310g |
| Module resolution | 32*16 dots |
Cabinet Parameter:
| Cabinet size | 1024*1024*130mm |
| Cabinet material | iron cabinet |
| Cabinet weight | 50kgs |
| Ingress protection | Front/Rear IP65/IP54 |
Whole Screen Parameter| Pixel density | 15625dots/m² |
| Brightness | ≥6300 cd/m² |
| Viewing angle | H≥160° V≥160° |
| Min.viewing distance | 5m |
| Max.power consumption | 1200W/m² |
| Avg.power consumption | 600 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥60frames/s |
| Refresh rate | ≥300Hz |
| MTBF | ≥10000 hours |
| Lifespan | ≥75000 hours |
| Protective function | Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +40℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless,
internet etc. |
Product Advantage
1.Application
Widely use in stadiums, advertisement, banks, securities exchange,
stations, shopping malls, postal offices, schools, restaurants,
entertainment, enterprises ,highway etc
2.Market:
North America, South America, Eastern Europe, Southeast Asia,
Africa, Oceania, Mid East, Eastern Asia, Western Europe
3. Price Advantage:
we have the best competitive price at the market, also have the
same even better quality.
4. Quality advantage:
From material to finished product, from design to produce, we
control all steps
5. Service advantage:
Better service at same situation, better cooperation at same
service
Trade Terms
1).Payment: T/T ,ususally 40% prepayment before production, 60%
balance to be paid before delivering,it also change according to
total quantity
2).Production lead time less 20 sqm: 8-15days, more than 50
sqm:30days
3).Sample can be deliveried within 3days
4).Shipping port: Shenzhen, Mainland China
5).Discounts are offered based on order quantities
6).MOQ:1 sqm/1pcs
Our Service
Our Services
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's
requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting
and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions,
squares and so on.
our company
FAQ
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you
pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2
weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our
customers benefit ;
2. We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come
from.
