Rental LED Display RGB P2.6 Indoor 3840HZ HD Video Screen 250*250MM
Hot selling points:
1) Small pixel pitch for vivid video function;
2) The chassis size is 500*500mm, which is convenient for the whole
screen composition;
3) Nova control system, which can support 230,0000 points;
(4) Driver IC MBI5153, refresh rate up to 3840HZ;
5)Power supply is G energy;
Advantage
1. High brightness: Due to the use of high brightness LED lights,
viewers can see the image clearly from a distance under strong
sunlight.
2. Long service life: The use of high quality LED lamps as the core
material and the patented PCB design of the screen fundamentally
guarantee the long service life of the product.
Long service life is fundamentally guaranteed.
3. Stable performance: special treatment for anti-electromagnetic
waves, the screen adopts distributed scanning and modular design,
stable performance.
Modular design, more reliable and stable work.
4. Delicate image: non-linear correction technology makes the image
delicate and clear, and the video image is vivid and realistic.
5. Excellent flatness: The precision design of module frame
components controls the deviation of adjacent modules within 0.1
mm, with excellent flatness and no mosaic phenomenon.
6. High Contrast: Consistent deep black and patented masking enable
higher contrast and more vivid colors.
7. Easy installation: Modular design makes installation and
maintenance easier.
8. Excellent material: Adopting the same grade of imported LED
chips from Taiwan, the United States or Japan, high-quality driver
IC, and low-noise power supply, which can ensure the screen to work
smoothly under the environment of -40~60.

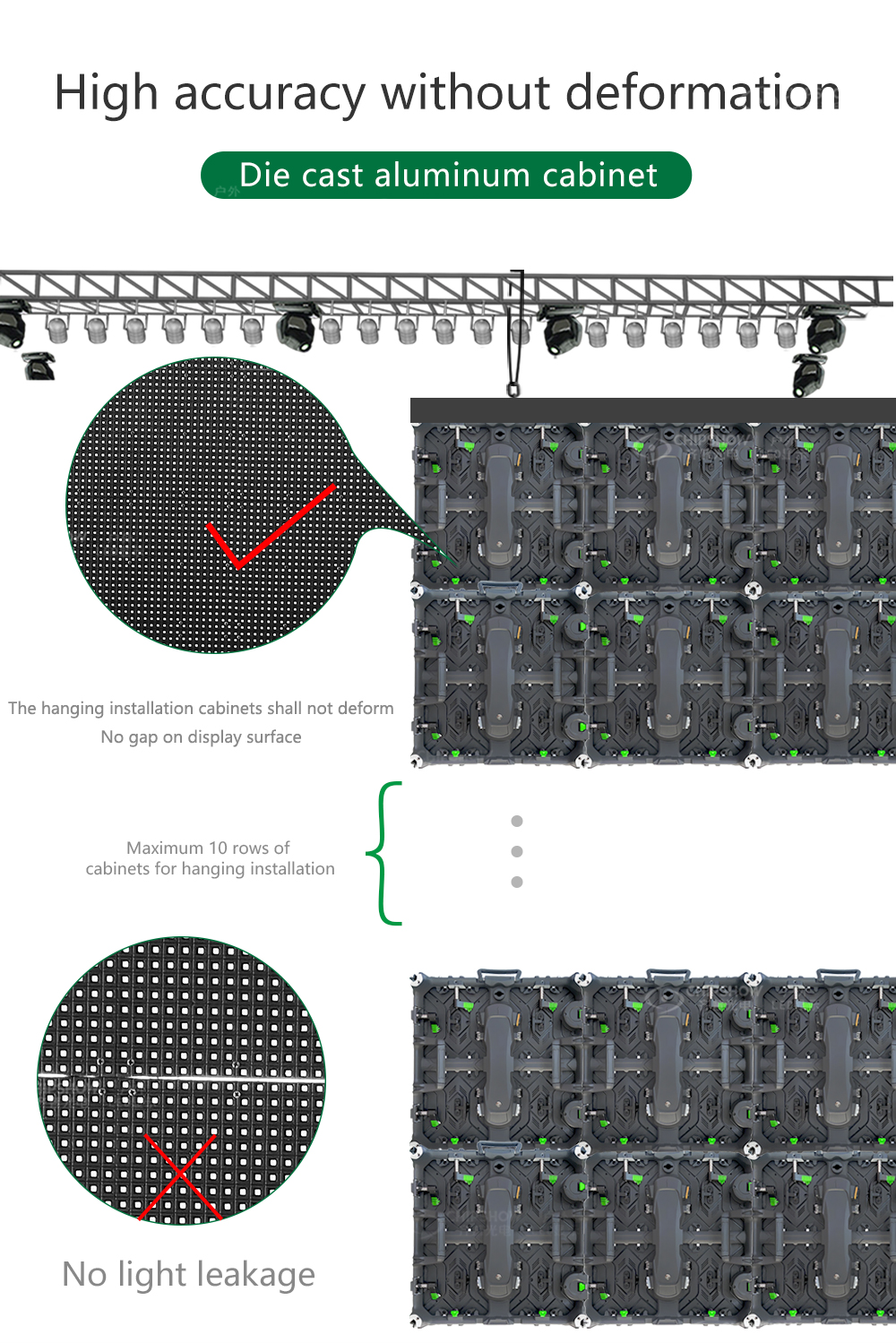

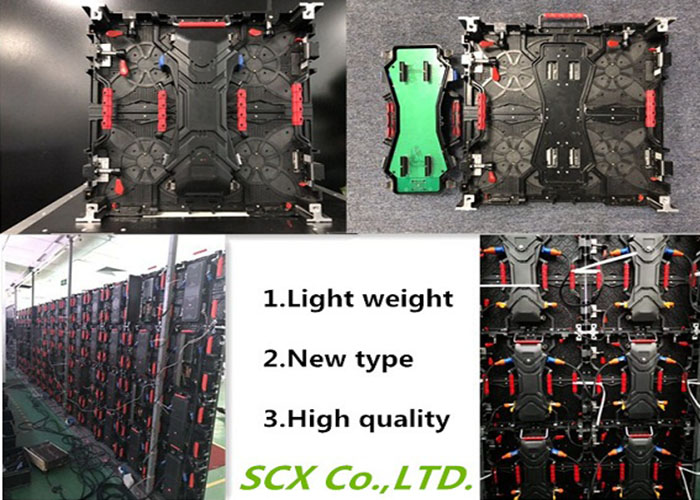

Cabinet shape:
Detailed descriptions:
| Resolution/mm | 2.6 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 147456dots/square meter |
| Module resolution | 96x96 |
| Module size/mm | 250x250 |
| View distance | 3-50m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | 1500cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/32 |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/square meter | <900W |
| Average power:/square meter | <280W |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
More info maybe you'll be interested:
1.Packing:carton cases for led modules;wooden cases for iron
cabinets;flight cases for die casting aluminum cabinets.
2.Shipping we have sea,air and ground.
3.The payment we receive T/T,if the quantity is large,then Western
is also ok.
4.All the products we provide 2 years warranty for free.
5.Except that,we have good after sales service,any questions will
be replied in 3 hours.
FAQ:
Q1: What's the warranty of your LED Display Screen ? A1: We have a 3-year warranty for our led display screen, and
100,000 hours life span of the led lamps. |
Q2: What about your pre-sale service and post-sale service? A2: For pre-sale service: We have a professional sales team and 13
years technical team who are willing to answer your question 24/7.
We can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the
screens, and change the broken modules with spare parts.
Also, we can send technicians to your country to solve problems.
Mostly, our led display will not have big problems within warranty
time! |
Q3: Whats your payment term? How long it takes to delivery? A3: We accept T/T and L/C, For both T/T and L/C, At least 30%
deposit in advance, and the rest 70% before delivery.
Our average Production time is 16 days, after receiving the
deposit. |
Q4: What's the control system? A4: For synchronization control: We use Nova, Linsn Or Colorlight
control system.
For asynchronous control: We use ONBON or XIXUN control system. |
Q5: How can you ensure the led display product quality? A5: Our led display screen quality is our core competence, for 8
years, what we rely on.
We have each standard process to make quality products.
If any quality failures within warranty time, we will refund you . |
Welcome to visit our website and inquire us more info,waiting for
you all the time!!!
