High resolution HD Indoor P2.5 led rental Full Color Rental LED
Display Panel /LED Video Wall
Features

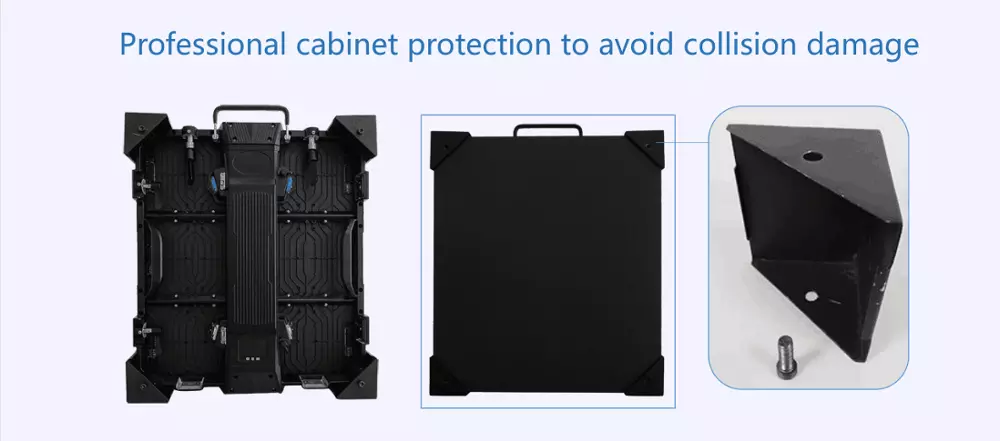

1) High-precision die-cast aluminum cabinet design, suitable for
2K/4K standard size screen, compatible with
P1.875/P1.935/P2/P2.4/P2.5. The module magnet installation adopts
front maintenance design. 2) Standard 240 x 180mm module size, 4:3 ratio, low current and
heat, high contrast, high brightness, refresh 3840Hz, true 16-bit
grayscale. 3) Adopt pure black 1515 LED, perfect color consistency,
point-to-point matching 1920 x 1080/3840 x 2160 2K/4K resolution
for the best display effect. 4) Use TG (170℃) immersion gold S1000-2 substrate to ensure that
the PCB board does not deform. 5) The back of the cabinet adopts high-quality thermal conductive
material, and the ventilation and heat dissipation design is
excellent, which improves the stability and service life of the
screen. 6) 1515 high standard pure black light, color contrast reaches
9000:1, true 16bit grayscale, wide viewing angle surface
luminescence, to ensure the best color performance. 7) Pure black light has no reflection under strong light, and can
achieve the best display effect in different environments. 8) 100% new material plastic shell, Japanese original patented
glue, long life, failure rate <10PPM. 9) Pure black light, color contrast reaches 9000:1, much higher
than 5000:1 deep black light and 3000:1 ordinary black light. 10) Pure black light can show more details and delicate pictures
than deep black light and ordinary black light. √ Private die-cast aluminum box and customized frame, no
professional installation is required. √ Provide vertical, mobile, wall-mounted or hanging installation
methods. √ Adopt pure black 1515 LED, good color consistency, point-to-point
matching 1920*1080/ 3840*2160 2k/4k resolution, get the best
display effect. √ Adopt TG (170°) immersion gold S1000-2 substrate to ensure that
the PCB board does not deform. √ 240*180mm large size module design to ensure that there is enough
power supply and wire space when the magnet is installed on the
module. √ 480mm (width) * 540mm (height) die-cast aluminum cabinet design,
suitable for 2k/4k standard size screens, compatible with P1.875/
P1.935/ P2/ P2.4/ P2.5 module magnet installation, adopts front
maintenance design.
Specification
| Item | Parameters |
| Model | P2.5 |
| Pixel Pitch(mm) | 2.5 |
| Physical Density (dot/sqm) | 173,611 |
| LED Configuration | 1RGB |
| LED Type | SMD1515 |
| Module Size (mmxmm) | 240x180 |
| Module Resolution (PXxPX) | 96 x 72 |
| Scanning mode | 1/25 |
| Brightness(cd/sqm) | 400-1200 |
| Grey Scale | 16bit |
| Refresh Rate(Hz) | 3840Hz |
| Drive Mode | Constant Current Drive |
| Module Mask Structure | N/A |
| Horizontal Viewing Angle(Deg) | 140 |
| Vertical Viewing Angle(Deg) | 120 |
| Cabinet Resolution(PXxPX) | 192x216 |
| Module Power Consumption(w) | 23 |
| Cabinet Max Power Consumption(w) | 140 |
| Cabinet Average Power Consumption(w) | 40 |
| Cabinet Size(mmxmm) | 480x540 |
| Cabinet Weight(kg) | 8.8 |
| Cabinet Thickness(mm) | 85 |
| Cabinet Material | Die-casting Aluminum |
| Color(M) | 16.7 |
| Input Voltage | AC110V-220V +/-10% |
| Refresh Frame Frequency(Hz) | 50-60 |
| Protection Level | IP45 |
| Working Environment | Indoor |
| Working Temperature(℃) | -40°-+60° |
| Storage Humidity(RH) | 40%-60% |
| Life Span(H) | 100,000 |
Product Details
Trade Terms
| Payment terms: | 35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow |
| Packing: | -Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case |
| Shipping: | LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment |
| After-Sales-Service: | -Lifetime with professional engineer support for free.
-Within 1 year, supply spare parts for free if the machine has quality problem |
Our Service
1. Warranty
1) We provide warranty of all components for 3 full years. During
this time, we will replace or repair our goods for free if there is
something wrong with them.
2) We will provide maintenance for a lifetime and charge for the
raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the
operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the
raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp
or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so
on.
2) We can also provide all kinds of certification such as CE, LVD,
RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and
some other expert suggestion.
2) We will send our engineers to your place if we are expected
after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other
information such as flight box, structure
