High Brightness P10 Led Display Billboard Panels SMD Waterproof
IP65 Outdoor P10 Fixed Led Display for Road side Highway
♦ Features
1. Brightness adjustment technology
To adjust different weather, to make the screen has the best show
effect, our company led screen electronic specially designed the
brightness adjusting device level 16.Ensure the whole screen can
has the best showing effective in different environment.
2. Strong convective heat removal system
LED screen throw off large quantity hot ,to ensure the total screen
system can stable work ,our company has been study on screen
cooling system, thinking about all gas flowing ,we study out a
series of Strong convective heat removal system ,make the system
more stable and reliable .
3. Exquisite material technology and scientific production process
Exquisite material technology is our company high quality
fundamental point, after study on lighting material , package
material ,structural material , chip material ,our company has
found our own Material exquisite craft and the corresponding
testing standards and test specification. On manufacturing
technology our company introduce foreign advanced production line
and production process, and fully managed according to SO9001
quality system .
1, P10 1R1G1B led display, with 10000dots/sqm, which guarantee
vivid and clear image effection.
2, Cabinets with Protection grade IP65 front and IP54 rear, suitable for all
outdoor working environment.
3, Fast locks at the four sides of the cabinet, easy assemble and
be piled up and be hoisted.
4, Backside maintenance. Exterior exposed module screws, easy
dismantling.
♦ Product specification
| outdoor SMD P10 |
| Resolution/mm | 10 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 10000/m² |
| Module resolution | 32*16 |
| Module size/mm | 320*160 |
| View distance | 9-400m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | (1/4) |
| Frame rate | 60Hz |
| Refresh frequency | >3500Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/㎡ | <900W |
| Average power:/㎡ | <350W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
| Product overviews |
| Items | Indoor Led display:
P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Dance floor led display
DJ led screen
Transparent led display |
| Material | steel,aluminum ,die casting aluminum |
| Certificates | CE, FCC,RoHS, CCC, UL |
Payment
terms | 30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |
| Using Range | Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on. |
Our case

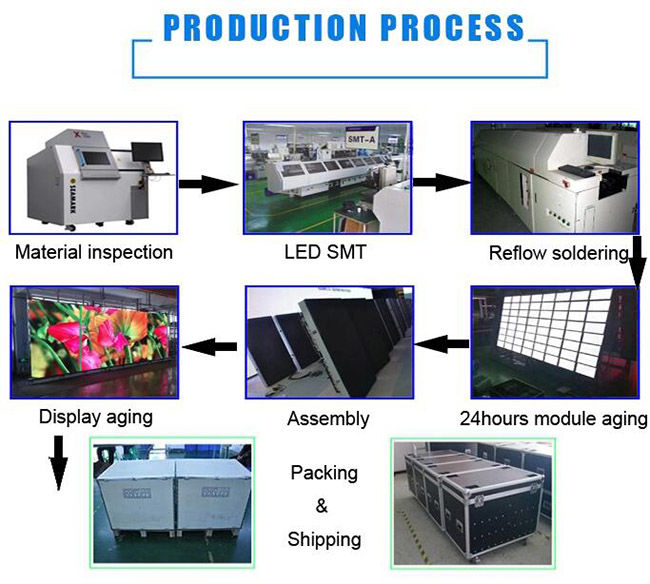

♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Description:
•With sensitive control system, it can adjust screen brightness
automatically according to the lighting change of indoor and
outdoor, saving energy to reduce your operating costs greatly.
•High refresh rate and high gray make the picture more realistic,
which meets the demand of high visual quality of commercial usage.
•The advertising contents can be changed at any time, for different
customers and various advertisements.
•you can know the display operation anytime, anywhere.
• it can turn on and turn off the screen by software timing or
manually at any time, achieving unattended function.
FAQ:
Q: What does it mean pixel pitch 6mm, 8mm, 10mm etc?
A: It means each two neighboring pixel distance is 6mm, 8mm, 10mm.
Different pixel pitch has different resolution, pixel pitch is
smaller, led screen resolution is higher.
Q: What information should I provide when send a inquiry?
A: 1, Please tell us will you install the led screen indoor or
outdoor? 2, Will if for permanently installation or for events use?
3, How many meters is the viewing distance?
Q: How long is the production time/delivery time?
A: If less than 100 square meters, production time is 7-15 working
days.
Q: How about the warranty time?
A: Our products warranty is 2 full years. During thie period, if
any of our led screen part not working(except for led module, and
damaged not by man-made), we send you new part to replace. We pay
half shipping cost.
Q: Can you guide us how to use the led screen?
A: Of course. We will offer you insllation video or manual,
software manual. If you still don't know how to use, our engineer
can help you by remote control. Besides, we can also send our
engineer to your place to guide you how to use.
