SMD2121 P5 Standard 640x640mm die cast aluminum cabinet full color
Haning led display
Specifications :
| outdoor SMD P5 |
| Resolution/mm | 5 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 40000/m² |
| Module resolution | 64x32 |
| Module size/mm | 320x160mm |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

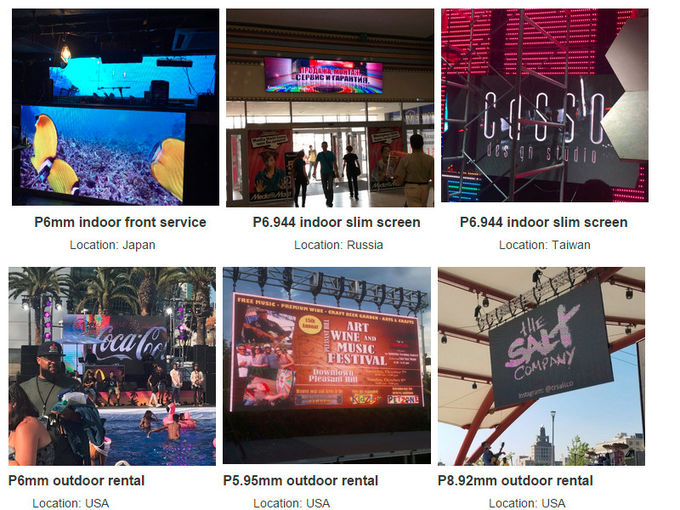

Our case
FAQ
Q1: What is the lead time?
A: Sample:2-5days; small quantity: 15-20days; large order:
20-25days; according to quantity.
Q2: Is it all right to make customers’own brand name?
A: That’s all right to make your own brand name.
Q3: Is it available for samples?
A:yes, of course.sample is free, and you may pay freight cost.that
would be reasonable
Q4:Is there a middle man draining your profit?
A:Get rid of them,it’s information age.Factory Directly
Supply,Provide good price, high-quality, quick-delivery, best
quality service.
Q5:How to place an order ?
1. Sample approval.
2. Client makes 30% deposit or open LC after receiving our PI.
3. Client approves our pp sample, and get the testing report if any
necessary .
4. Mass Production.
5. Arrange shipment.
6. Supplier arranges necessary documents and sends copy of these
documents.
7. Client effect balance payment.
8. Supplier sends original documents or telex release the good.
Quality assurance:
2-3 Years. even after the warranty years, Maxv also provide support
and service for clients. Within Warranty period, if under the usage
of instruction sheet, any product broken or damage,Maxv will offer
the repair service or replacement instruction. Beside the warranty
days, kaler continues to provide life-long maintenance services.
Even if within the warranty period, if the following occurs,
certain maintenance costs will be charged:
A. The malfunction and damaged caused by incorrect use, the
unauthorized repairs and alteration.
B. The damage caused by fire, flood, abnormal voltage, other
natural disasters and secondary product damage.
C. The product malfunction caused by the fall and transportation
failures after purchase.
D. The product malfunction caused by Not in accordance with the
user manual operation.
E. The malfunction and damaged caused by the other barriers
(man-made factors or external device).Any problems in the
after-sales service, please contact us directly.
1), Warranty Period:
All of our products have 12 months warranty.
also will send a part of the accessories along with goods.
2), After-sales service
Excellent service after sale, If there is any problem with the
product (without
improper operation and outside force) , during the first year,free
parts and after service will be provided.Professional service will
be provided permanently.
3),Payment Terms:
T/T, Western Union, Paypal, Money Gram,L/C
4),About MOQ:
One piece is acceptable for the trial order, we welcome customer to
test and evaluate our products.
5),Package:
International standard carton packaging or flight case as your
requirement, using the EPE for safeguard, they will protect the
light not damage.
6),Delivery Time:
For sample orders,3-5 working days after receiving the payment.
Big order depend on the quantity :Under 1000 pcs,10-20 days
normally.
More than 1000 pcs,20-35 days.
7),Shipment:
DHL.UPS,FEDEX,TNT,AIR,SEA.We will chooe the best and most favorable
way according to your order quantity.
Applications:
Concert rental LED display
Entertainment events LED screen
Stadium rental LED wall
Fash show stage LED display
Car exhibition LED display
Rental commercial LED display
