Football stadium led banners score board screen P8 advertising
perimeter display for sports
Product features
1. Quick installation & maintenance
2. Stronger & more accurate cabinet frame
3. High definition & resolution
4. Better consistency
5. High waterproor performance
6. Soft mask and cover to protect the screen and avoid scratching
7.Metal power box for better heat dissipation
8. High cost-effective
Specification
Setting Information |
Pixel pitch | 8 |
Pixel Configuration | SMD 3535(3in1) |
Pixel density | 15625dots/㎡ |
Driving method | 1/4 scan |
Module resolution | 32dots x 16dots |
Cabinet resolution | 128dots x 96dots |
Cabinet dimensions | 960x1006x144mm |
Cabinet material | die-casting magnalium |
Cabinet weight | 30kg |
Refresh rate | ≥1920 |
Gray level | 14bits |
Frame frequency | >60 |
Viewing angle | H: 160° , V: 140° |
Avg./Max. power suppy | 300w/㎡, 900w/㎡ |
Working/input voltage | 200/110-240V |
Storage Temp/Humidity | -25℃~55℃, 10~90% RH |
IP grade | IP65 |

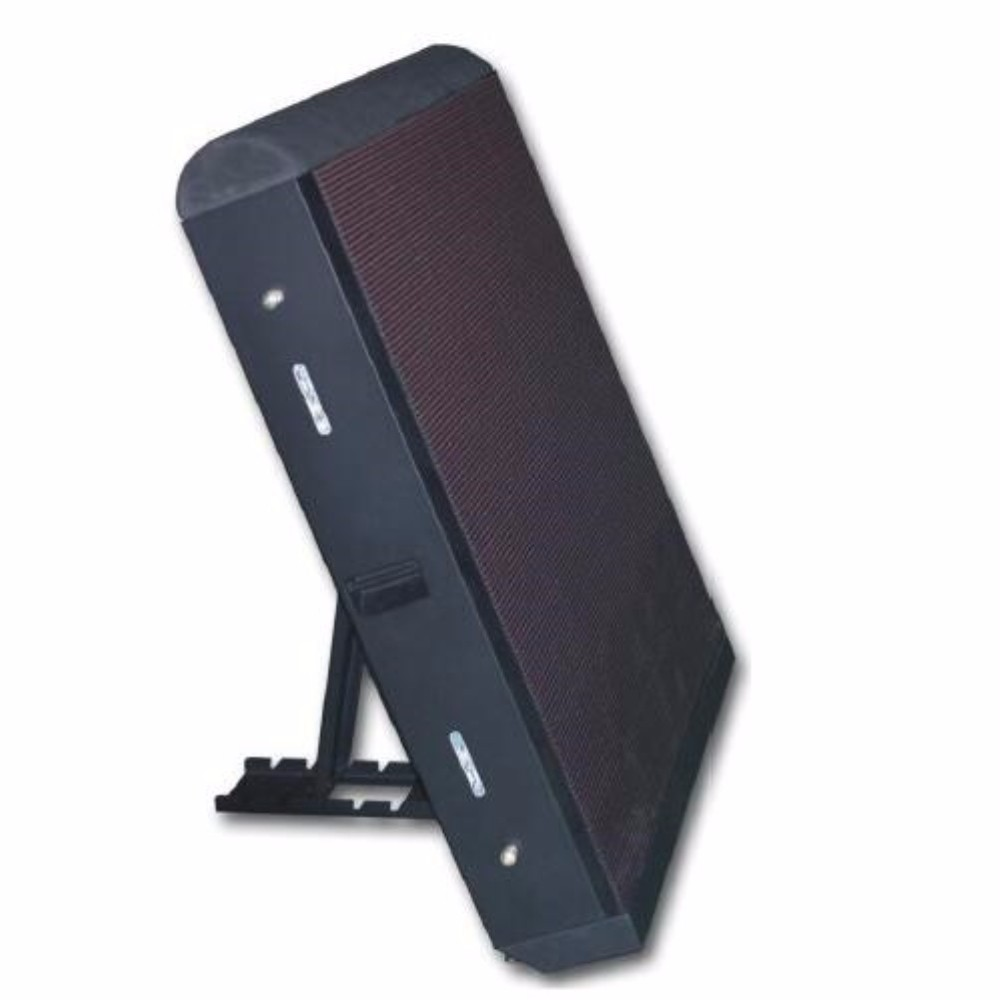

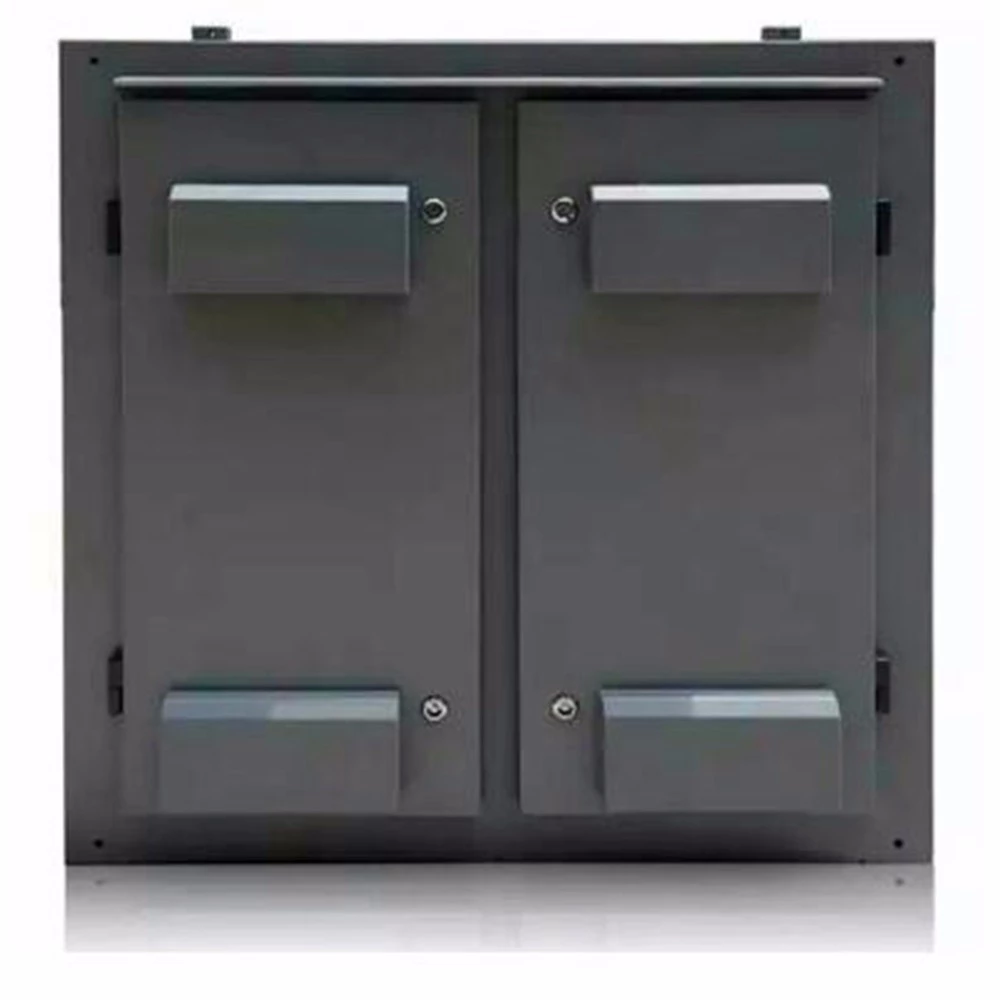

Product Detail
Other products
Our Service
1. Warranty
1) We provide warranty of all components for 3 full years. During
this time, we will replace or repair our goods for free if there is
something wrong with them.
2) We will provide maintenance for a lifetime and charge for the
raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the
operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the
raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp
or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so
on.
2) We can also provide all kinds of certification such as CE, LVD,
RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and
some other expert suggestion.
2) We will send our engineers to your place if we are expected
after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other
information such as flight box, structure
