Brand Name : | SCXK |
Model Number : | SCXK-P8 |
Certification : | CE,ISO,FCC,UL |
Price : | 344-478USD/sqm |
Payment Terms : | T/T, Western Union, D/A, D/P, L/C, MoneyGram |
Supply Ability : | 5000sqm/month |
Delivery Time : | 12-15 working days. |
Full Color LED Billboards P8 Outdoor High Quality Large Screen IP65 HD

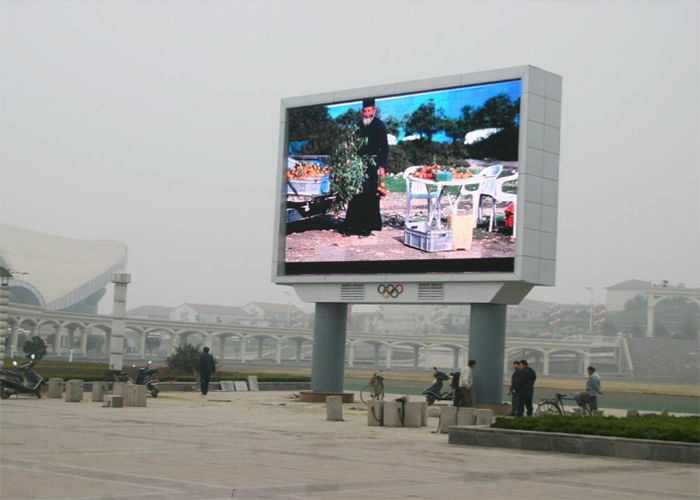

Outdoor Fixed Column Display Screen:
It is used beside expressways for advertising, knowledge dissemination, safety publicity, etc.
Can play a very good subtle role.
In recent years, the display industry has gradually warmed up, more and more people choose
low-carbon environmental protection products, and full-color LED display has this feature,
so it has received many users'favor and recognition.
Specifications :
outdoor P8 LED Display Screen | |||||
Resolution/mm | 8 | ||||
Pixel configuration | 1R1G1B | ||||
Pixel density/pixels/m² | 15625/square meter | ||||
Module resolution | 32x16 | ||||
Module size/mm | 256x128 | ||||
View distance | 8-80m | ||||
Single point brightness adjust | Can be added | ||||
Single point color adjust | Can be added | ||||
White balance brightness | >5500cd/square meter | ||||
Color temperature | 6500K-9500K | ||||
Horizontal view angle | 120(degrees) | ||||
Vertical view angle | 60(degrees) | ||||
Signal Process bit | 10 or 16bit | ||||
Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
Driving mode | Constant driving current | ||||
Scanning mode | 1/4 SCANNING | ||||
Frame rate | 60Hz | ||||
Refresh frequency | >1200Hz | ||||
Control mode | Computer synchronous | ||||
Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
255 steps. No grey loss | |||||
Out of control point | <1/10000 | ||||
Working hours | ≥72hours | ||||
Mean Time Between Failure | >5000hours | ||||
Life time | 100000hours | ||||
Life-all-white(brightness halving) | 50000hours | ||||
Environment temperature range | Operating temperature range: -20-45℃ | ||||
Self-check technology | LED spot self-check, communications check, power check, | ||||
temperature monitor(need customization) | |||||
Remote monitoring | Remote supervision and control, record potential fault, | ||||
send out warning signs to the operators.(need customization) | |||||
Software environment | WindowsNT,Windows1999,WindowsXP | ||||
Luminous point width between centres | Deviation<3% | ||||
Brightness uniformity | <10% | ||||
Color uniformity(chromaticity coordinate) | ±0.003 | ||||
Power supply request | AC85-264V(50Hz-60Hz) | ||||
Contrast | (1000:1) | ||||
System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
Humidity(working) | working:10-95% | ||||
Humidity(storing) | storing:10-95% |
Several advantages:
1.Outdoor waterproofing coefficient is as high as IP65.
2.Super wide angle, clear long-distance viewing, good texture, brightness over 5500 cd/sqm.
3.Synchronization control, simple operation, can play any advertising video.
4.The working voltage is 5V, which is very safe to use.
5.Fixed installation is not easy to shift, and front maintenance is convenient for maintenance.
