SCX LED Waterproof Outdoor Led Street Advertising Billboard Screen
Panel Smd Fixed P5 P6 Outdoor Led Display
LED Display
1. Certification: CE, RoHS, UL, FCC,SGS
2. Warranty: Five years
3. Support TV, S-Video, DVI, AVI, MOV.
4. High resolution, 27777 DOT/sqm
5. Static scanning, true classics;
p6 SMD full color led screen technology parameter
| Resolution/mm | 6 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m^2 | 27778/m^2 |
| Module resolution | 32dotsx32dots |
| Module size/mm | 192x192mm |
| View distance | 10-200m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | 6000 cd/m^2 |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/8scan |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >10000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 100000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/^2 | <700W |
| Average power:/^2 | <200W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
| Product Name | outdoor p6mm SMD Full color led module |
| Service | Your inquiry will be reply within 12 hours. |
| Brand | SCX |
| Material | Stainless, aluminum ,steel, epoxide |
| Item | Indoor P2 P2.5,P3,P3.91P4,P5,P6,P7.62 Outdoor p3.91 P4 ,P5 P6,P8,P10,P12,P16,P20 |
| Feature | High brightness, good resolution, working stable , easy
installation. |
| Grade | IP43-IP65 |
| Driving mode | 1/8 |
| Stock | Regular items of led display have stocks. |
| Color temperature | 6500-9500K |
| Packing Method | Flight case &Plywood case or Customized Packing |
| Power supply request | AC85-264V(50HZ-60HZ) |
| Delivery Time | Within 7-30 days according to your required size & quantity. |
| Using Range | Shopping mall,bank,bus station, train station, center of downtown,
airport, school, factory, bus, taxi, and etc. |

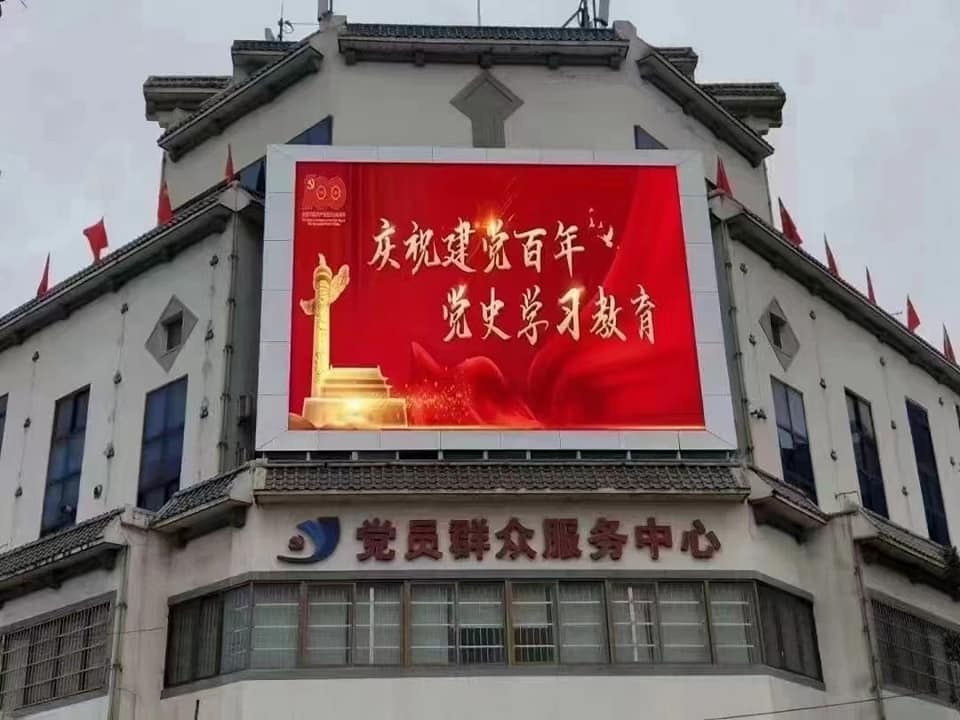

Our case
Super brightness single color LED billboard advertising
In the led billboard /panel series, The module design of the LED
display enables you to create customized screen surfaces of
virtually any size in either 4:3 or 16:9 ratios. Typically the LED
display series are applied to large public squares. sport centers
signage,public service announcement displays,media,commercial
promotion and other large scale applications.
1, Superb brightness and color uniformity and reproduction.
Brightness variances within+/-2.5%
2, High reliability: data hot backup aims to avoid any
communication risks during the show; support automatic fault
detection
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
♦ Production process:
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
♦ Packaging and shipping
We can receive all kinds of transportation. and the shippment term.
FOB and CIF. EXW and so on.
we can choose the best shippment which is convenient to you!
SCXK group can give you the short delivery time and With the large
production ability ,
you can feel free about this . By air ,by train, by sea?
