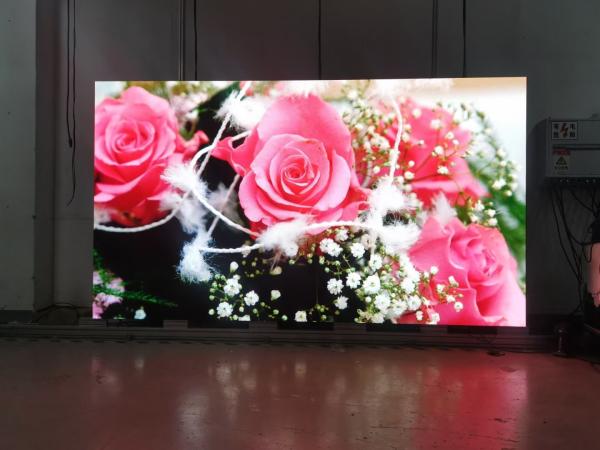

SCX LED Indoor P2.5 LED Screen 640x640mm Performance Room 2.5mm
Indoor Rental LED Display
Popular used inCinemas,big show ,equipping discos, theaters, museums are openly to attract eyes with
led sign
in thecolorful way.Visitors involved in a new experience with direct viewing effect.
LED is brighter with more colors
than LCD.Our LED Screen has multiple functions: in addition to informing
about news, programs and more with
moving images,they are an excellent tool for attracting and promotion.
With the management software provided by novastar,linsn,huidu ,it
is also possible to program different schedules
following the desired programming.
| Pixel Pitch(mm) | 2.5mm |
| Module Size(mm×mm) | 320*160mm |
| LED Type | SMD2121 |
| Scanning Mode | 1/32 Scan |
| Brightness (cd/m2) | 600-900cd |
| Grey Scale | 16bit |
| Contrast ratio | 8000:1 |
| Refresh Rate(Hz) | 1920Hz |
| Cabinet Weight(kg) | 12.5KG |
| Cabinet Material | Die-Casting aluminum |
| Refresh Frame Frequency(Hz) | 50-60Hz |
| Driving model | ICN2038S +ICN2012 |
| Input voltage | 100-240V-1.8A |
| Protection Level | IP65 |
| Applicable Sence | advertising;stage;Church,Shopping mall ,Conference hall,Hotel
lobby,Concert,
living show ,Wedding |
| Life Span | 100000 hours |
♦ Product specification
| indoor SMD P2.5 |
| Lamp size | 2121 |
| Resolution/mm | 2.5 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 160000/m² |
| Module resolution | 64x64 |
| Module size/mm | 160*160 |
| View distance | ≥0.5m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >2500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >4200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1000W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Product Overviews
| Items | Indoor Led display:
p1.5, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25 |
| Material | steel,aluminum ,die casting aluminum |
Payment
terms | 30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |
| Using Range | Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on. |
Our case
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality
goods.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
FAQ
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 18-25 days after
receiving the deposit(Exclude time of weekend). If you need urgent,
please kindly let me know, in guaranteed of quality. we will try
our best to make faster.
Q2: What is the minimum order quantity
A2: MOQ is 1 panel,You are warmly welcome to try 1 or 2 panels for
sample, but usually clients will order 8 panels for checking
quality and compatibility.
Q3: What's the Payment terms?
A3: 30% deposit to start production, and 70% balance to be clear
before delivery.
Q4: Where is it used for?
A4: indoor & rental use. Widely used for backdrop of staging event,
rental business, liveshow, concert, etc.
Q5: what is the Delivery guarantee?
A5: Guarantee time: 2 years. Within 2 years, if any part failed, we
send new parts or repair for free, we will undertake shipping cost
from your city to China and from China to your city. After 2 years,
we only charge cost price for parts and repairements, and you need
to pay shipping cost go and back.
Q6: What's the controlling system?
A6: Control system could be Linsn, Nova-star, Color light...Usually
client use Linsn for fixed installation led screens, and Nova-star
system for rental screens.
