Indoor P2 P3 P4 P5 Stage LED Display Screen Rgb,full Color Custom
Made Customized 3 Years 1100cd/sqm 1/16 Scanning
Stage Led Screen Features
1. Light Weight: The body uses aluminum profile stitching weighing
5-8kg, which is light and non- corrosive.
2. Elegant Appearance: We adopt CNC processing technique to produce
standard module and cabinet which can easily do seamless assemble.
3. Standard Size: We use professional buckles and standard modular
panels which can snap together easily.
4. Easy Setup: Back modules are made easier for connection.
5. Energy -saving: Our products get low energy cost and high
efficiency.
Application
Indoor Small pitch Led Display has the ability to play monitor
videos and graphic information in real time. It is widely used in
far viewing distance , such as shopping mall, conference center,
stock exchange. Hotel, supermarket, gymnasium, stadium, TV station
etc.
Stage Led Screen Specifications
| Pixel Pitch(mm) | 4 |
| Physical Density | 65410 |
| LED Configuration | 1R1G1B |
| LED type | SMD2020 |
| Module Size | 256×128 |
| Module Resolution | 64×32 |
| Module Power Consumption | 27W |
| Driving Mode | Constant Current IC |
| Scanning Mode | 1/16 |
| Horizontal Viewing Angle | 140 |
| Vertical Viewing Angle | 140 |
| Brightness | 1200 |
| Grey Scale | 16bit |
| Refresh Rate | ≥3840 |
| Cabinet Resolution | 128×128 |
| Cabinet Max Consumption | 160 |
| Cabinet Average Power Consumption | 50 |
| Cabinet Size | 512×512 |
| Cabinet Weight(kg) | 8KG |
| Cabinet Thickness | 85mm |
| Cabinet Material | Iron/Aluminum |
| Color | >16.7 |
| Input Voltage | AC 110V~220V +/-10% |
| Frame Frequency | 50-60 |
| Protection Level | IP43 |
| Working Temperature(℃) | -40° -+65° |
| Storage Humidity Range(RH) | 10%~90% |
| Life Span(H) | 100,000 hours |

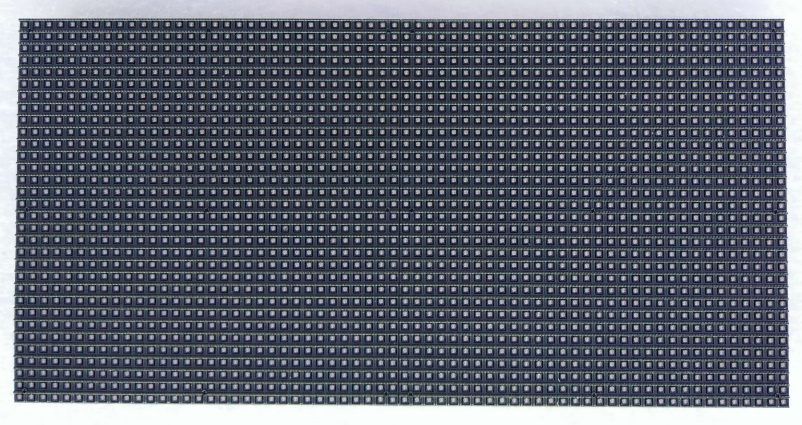

Stage Led Screen Details
Stage Led Screen Production Process
Our Service
1. Warranty
1) We provide warranty of all components for 3 full years. During
this time, we will replace or repair our goods for free if there is
something wrong with them.
2) We will provide maintenance for a lifetime and charge for the
raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the
operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the
raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp
or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so
on.
2) We can also provide all kinds of certification such as CE, LVD,
RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and
some other expert suggestion.
2) We will send our engineers to your place if we are expected
after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other
information such as flight box, structure
FAQ
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are aceptable.
Q2. What about the delivery lead time?
A: About 22 days after receiving payment.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc led panel for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-8
days to arrive. Airline and sea shipping also optional. And you can
also designate shipping companies.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the solution and places deposits for
formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q7. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q8. How to deal with the faulty?
First, Our products are produced in strict quality control system
and the defective rate will be less
than 0.2%.
Second, we offer complete set of accessories for fixing up cabinets
and 1 % extra spare parts of the total quantity for maintenance
overhaul
Third, during the warranty time, we will take responsibility to
change or repair defective parts. The buyer pay the shipping of
returning of defectives, and we pay the shipping of sending back.
Q9. Do you offer installation services?
We provide on the spot installation instruction service for the
buyer, including:
A, To check whether the bracket and frame are in conformity with
the technical requirements of the structure scheme the seller
provided
B, To instruct the buyer's technicians to install the LED module
cases and connection among those cases
C, To experiment and adjust the whole panel, examine and repair the
defective devices, guarantee panel in secure operation.
D, To train the buyer's technicians.
For spot installation, the service is 100 usd/day, and the buyer
must pay our technician's living and traffic fee during the
installation period.Q10. Is there any free training?
A: Yes, we will provide 7 days on-site complete technical training
in our factory.
