Stage LED Screens SMD P3.91 P4.81 portable 500*500 500*1000mm Full
Color Led Display Indoor backstage Video Wall
Stage Led Screens Features
Super high resolution technology for outdoor LED displays.
Ultimate image quality, Excellent brightness, color and contrast.
Modularity & fanless design, Lightweight and slim die cast aluminum
casing
Wide viewing angles, the images visible in more than 160 degree
viewing angles.
Tools-free assembly, support hanging & stacking.
Support curve assembly with arc lock (optional).
Perfectly suited for cross-rental/touring, staging, road show,
concert, church applications.
Stage Led Screens Specifications
| Model | Unit | P3.91 |
| Pixel pitch | mm | 3.91 |
| Pixel resolution | pixel/m² | 65410 |
| Pixel configuration | - | High Brightness SMD2727 3-in-1 packaged |
| Viewing angles | horizontal | 120° at 50% brightness |
| Vertical | 120° at 50% brightness |
| Weight | kg/m² | 32 |
| kg/cabinet | 8 |
| Brightness | CD/m² | 1,000 |
| Contrast ratio | - | 1,000:1 |
| Color temperature | K | 6,500 |
| Color processing | bit/color | 12 |
| Colors | number | 439.8 billion |
| Grayscale | steps | 16,384 |
| Best viewing distance | m | 5 - 50 |
| Refresh rate | Hz | ≥1,000 |
| Control system | - | NOVASTAR |
| Life time | h | 75,000 to 50% brightness down |
| Power consumption | W/m² | 800 / 300 |
| (maximum/average) | W/cabinet | 200 / 75 |
| Working voltage | - | AC220V or AC110V / 50-60 Hz |
| Cabinet dimension | mm | 500 x 500 x 80 |
| inches | 19.7 x 19.7 x 3.1 |
| Aspect ratio | - | 1:1 |
| Cabinet material | - | die-casted aluminum |
| Protection rate | IP | front: IP54, back: IP54 |
| Working temperature | °C | -20 to +60 |
| Working humidity | RH | 10 to 95% |
| Image source with LED video processor | - | HDMI, CVBS, YC, YUV, RGB DVI, SDI/HDSDI |
| Image source without video processor | - | DVI |
| Maximum transmitting distance | m m | <100 with network cable <2,000 with optical fiber cable |
| Cabinet interfaces | - | 2 signal ports, 2 power ports |
| Maximum per power entry | cabinets | 220V power input: 18 110V power input: 9 |
| Maintenance | - | back |

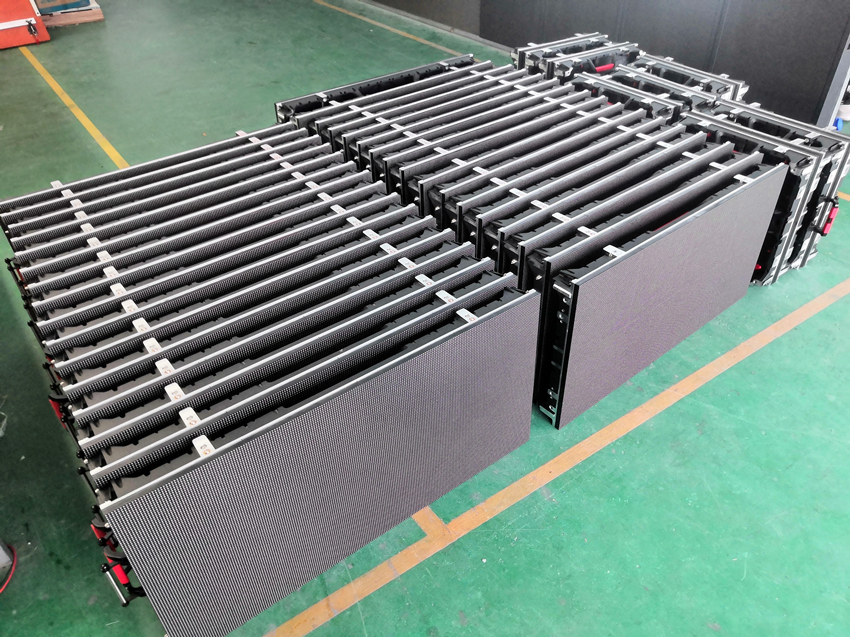

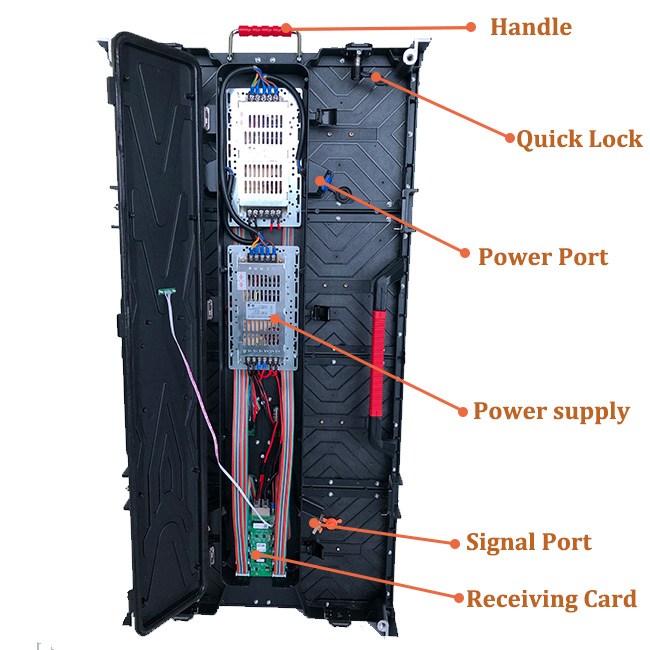

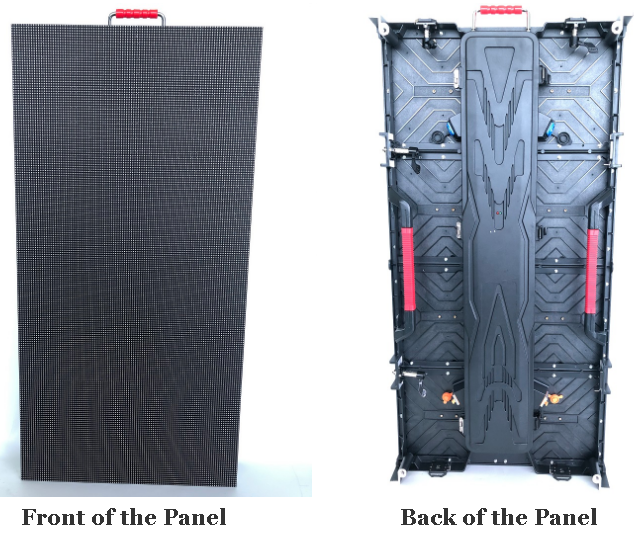

Stage Led Screens Product Details
Prepare for Installation
Our Service
1. Warranty
1) We provide warranty of all components for 3 full years. During
this time, we will replace or repair our goods for free if there is
something wrong with them.
2) We will provide maintenance for a lifetime and charge for the
raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the
operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the
raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp
or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so
on.
2) We can also provide all kinds of certification such as CE, LVD,
RoHS and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and
some other expert suggestion.
2) We will send our engineers to your place if we are expected
after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other
information such as flight box, structure
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as
possible. So we can send you the offer at the first time. For
designing or further discussion, it is better to contact us with
Skype/email /phone, in case of any delays.
2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/
Advertising LED display for you choose.
3. What about the lead time for an order?
Always: 10-17 days, as your order quantity, sometimes we have
stock, can delivery within 7 days.
4. What about the warranty?
We have Three years quality guaranteed, spare parts such as led
module, receiving card, control card, power supply are damaged not
cause of artificial damaged, then it's free maintenance and ship
back new ones for replacement.
5.How about the quality?
Our led products must be testing of at least 72hours before
shipping, from purchase raw materials to ship ,Each step has strict
quality control systems to ensure led display with good quality.
6. Can you offer a technical support? Since it's my first time....
We provide free training for our customer, teach the client how to
set up screens, make configuration of parameters, broadcast the
videos through Nova star and colorlight or Linsn control systems,
our engineer can directly teach you how to control, or help you to
done if you are really don't know how to control(Our Engineer can
text English, we can saving more time )
We're devoted to innovative high-end led display with over 15 years
manufacturing experience, and we believe you could get a
professional solution and best service from REISS. We're happy to
serve you.
If you need led display screen,welcome to contact us,we can
customize according to your needs.
For more questions about ShiXin Display Technology wholesale price full color smd outdoor/indoor led video display
screen fixed with iron cabinet , please contact me of ShiXin Display Technology direct OEM manufacturer right now! Welcome any question!
