P6.67 SMD Outdoor Full Color LED Billboard Street Advertising LED
Signs Message Board Video Wall Stage Screen
Specifications :
| Outdoor P6 LED screen Display |
| Resolution/mm | 6.67 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 22478/square meter |
| Module resolution | |
| Module size/mm | |
| View distance | ≥6m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >6000cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/8 scanning |
| Fresh rate | 60Hz |
| Refresh frequency | >1000Hz |
| Control mode | Computer synchronous |
| Out of control point | <1/10000 |
| Aging hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |

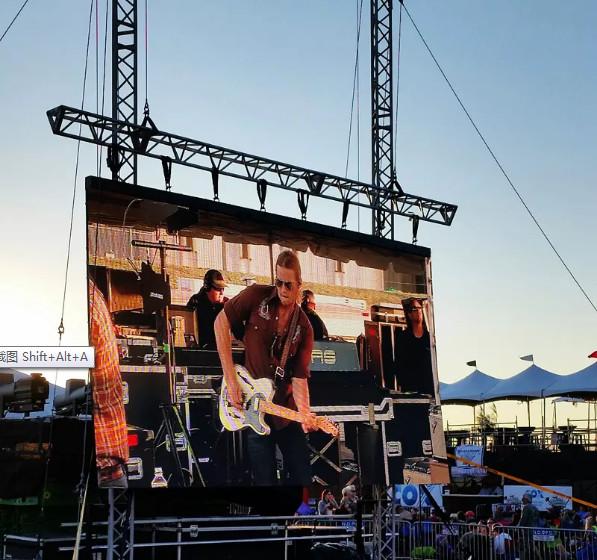

Our Projects:
What we do?
Shenzhen ShiChuangXin Ke Electronic Co.,Ltd is a high-tech enterprise integrating R&D, design, production,
marketing and after-sales service of LED displays.
We can offer all types of indoor and outdoor led display, and it's
videly used in banking, communicatins offices, electric power
industry, traffic, stadiums and sporting area, business plaza,
entertainment for the applications of advertising, sports,event,
stock/ sport news ticker, message center, price etc.
Why choose us?
1. Professional team and good after-sales service.
2. Promise high quality product for good price.
3. Quick delivery after payment.
4. Free technical support.
5. If any problems appear,we'll replay in 3-4 hours.
Advantages:
1) High intensity and can be adjusted, so can meet the request of
the customers according the environment.
2) Best equality, commendably solve the problem of the mosaic, have
the excellent consistency of light.
3) To pictures and character, have clear, exquisite and real
display effect LED Screen.
4) Big viewing angle to 110 degree at horizontal line, 60 degree at
vertical line.
5) Can repair each led lamps, so the cost of maintain is lower, and
easy to repair.
6) Usually apply for physical sports, advertisement, bank, stock
exchange, station, port, indoor P6 display etc.
