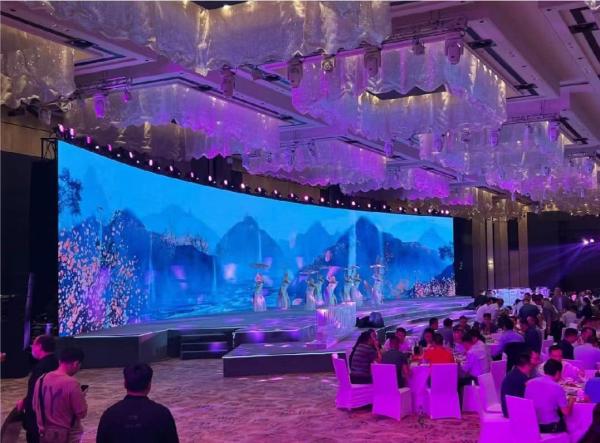

Full Color 3.91mm Indoor Rental Led Display With 500X500 Cabinet Led Video Wall
Technology Specification Datasheet
| S/N | Item | Technical Parameters |
| LED Parameters |
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
| 2 | Red LED | SMD192 | 120-140mcd | 620-625nm | 160º/120º |
| 3 | Green LED | SMD1921 | 360-435mcd | 520-525nm | 160º/120º |
| 4 | Blue LED | SMD1921 | 80-100mcd | 470-475nm | 160º/120º |
| Module Specification |
| 1 | Pixel Pitch | 3.91mm |
| 2 | Pixel Configuration | Nationstar SMD 1921 1R1G1B(3in1) |
| 3 | Module Resolution | 64 x 64 pixels |
| 4 | Module Pixles | 4096 pixels |
| 5 | Module Size | 250mm X 250mm |
| 6 | Input Voltage | DC 5V |
| 7 | Power Consumption | Max 45W |
| Cabinet Specification |
| 1 | Cabinet Size(W X H X D) | 500mm x 1000mm x 85mm or 500mm x 500mm x 85mm |
| 2 | Cabinet Resolution(dot) | 128 x 256 pixels or 128 x 128 pixels |
| 3 | Module Quanity (pcs) | 8pcs or 4pcs |
| 4 | Cabinet Pixels | 32768 pixels |
| 5 | Pixel Density | 65410 pixels/m2 |
| 6 | Cabinet Materials | Die Casting Aluminum Cabinet for rental purpose |
| 7 | Cabinet Weight | 12kg or 6kg per cabinet |
| 8 | Packaging | Fly case |
| Whole Screen Specification |
| 1 | Screen Brightness | ≥7000cd/m2 |
| 2 | Driving Method | Constant current |
| 3 | Best Viewing Distance | 3.91m - 40m |
| 4 | Max. Power Consumption | 600W/m2 |
| 5 | Average Power Consumption | 300W/m2 |
| 6 | Gray Level | 8bits input, 4096 levels(212) |
| 7 | Display Color | 16M |
| 8 | Frame Frequency | ≥60Hz |
| 9 | Refresh Frequency | ≥3840Hz |
| 10 | Uninterrupted Working Hours | ≥72 hours |
| 11 | Screen Life-span | ≥100,000 hours |
| 12 | MTBF | ≥10,000 hours |
| 13 | Discrete Blind Spot Rate | <1/10000 |
| 14 | Continuous Blind Spot Rate | None |
| 15 | Blind Spot Rate | <1/10000 |
| 16 | Protective Scale | For indoor use, non-waterproof |
| 17 | Screen Plainness | <±1mm |
| 18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 19 | Environment Temperature | Temperature:-20 Celsius~+60 Celsius |
| 20 | Humidity | Humidity:10%~90% RH |
| 21 | Control Mode | Synchronous display with control PC by DVI |
| 22 | Control System | Linsn, Nova-star, Colorlight or as you required |
| 23 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| 24 | Interface | Standard Ethernet |
| 25 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
| 26 | Power Supply Brand | G-energy, MeanWell, CZCL or as you required |
LEEMAN FACTORY WORKSHOP
Production line
Indoor and outdoor die-casting rental aluminum cabinet:
1) Lightweight
2) Seamless connection
3) Ultra thin
4) Easy to maintain
5) Easy to install
6) Noiseless
7) Ghost Cancelling
8) High refresh rate
9) Low brightness and high gray scale
10) Low power consumption
Q : Are you manufacturer?
A : Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’
various application and demands.
Q : How can we guarantee quality?
A : Always a pre-production sample before mass production; morethan 72 hours tested bofore shipment.
Q : What is the minimum order(MOQ)?
A : We accept one unit for standard products. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q : Can we get the free sample?
A : Sorry,generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation. After place the quantity order, we can return the sample cost to the customer.
Q : How does your factory do regarding quality control?
A : Quality is priority.Our always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail,Our factory has gained ISO9001, ISO14001, CE, FCC authentication.
Q :What services can we provide?
A : Accepted Delivery Terms: CIF,EXW,CIF,CIP, DDP, DDU...
Accepted Payment Currency:USD,EUR,CAD,HKD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Q : What's Your Products Warranty?
A : Our warranty is 5 years.
Q : How long it will take for delivery?
A : For production lead time around 7-10 days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-7 working days. For some remote place, delivery time maybe a little bit longer.
Q : How to repair the device if any problem ?
A : We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send back to us to fix it.we can send an engineer team to the country of the customer to instruct.
