    High definition HD 1R1G1B P5 SMD Rental LED Display For railway / school

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : P5
    Certification : CE/ROHS/FCC/ISO/UL
    Price : negotiation
    Payment Terms : T/T or western Union
    Supply Ability : 5000sqm per month
    Delivery Time : 7-10 working days after receive your payment
    • Product Details
    • Company Profile

    High definition HD 1R1G1B P5 SMD Rental LED Display For railway / school

    High definition HD 1R1G1B P5 SMD Rental LED Display For railway / school

    professional manufacturer of outdoor and indoor led display. With more than 11 years experience, our led display enjoy good reputation . The outdoor P5 full color led display is very high definition and brightness,its’ very attractive and hot sell.

    1, within thin cabinet or aluminum cabinet.

    2, easy to dismantle and assemble, very slight

    3, voltage:DC5V

    4, Led pixel composing :RGB

    5, High brightness and definition

    6, 2 years warranty and more than 10 years life use


    The detailed parameter as follows.

    1, Item Name

    technology parameter

    2, pixel tube:

    pixel pitch:5mm; primary colors: pure red+ pure green +pure blue;

    color composing:1R1G1B; smd3 in 1

    Density :40000dots/sq m;

    3 , unit box

    module size: 960mm×960mm; Module resolution:32X32

    cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm;

    4, whole screen:

    the optimum viewing angel :horizontal 110°, vertical 50°

    viewing distance:10-300m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC ET5024


    5, operating voltage

    AC220V±10% or 110V±10% ,average consumption:500 W/sq m

    max consumption:≤650 W/ sq m

    6, main parameter

    1) driving mode: 1/8 scan

    2) refreshing rate:≥400Hz/s

    3) frame frequency:≥60Hz/s

    4) gray scale/color:≥16.7Mcolors(Synchronized)

    5) manage gray:≥72bit

    6) brightness:≥3000cd/sq m

    7) color temperature condition:3500K~9500K,be adjustable

    8) adjusting style of brightness: hand movement/auto

    9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable.

    10) average trouble-free time:≥5000hours

    11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm

    12) switch power loading:5V/40A

    13) display mode of computer:1024×768


    Applications:

    Rental full color digital billboard is very popular in LED display advertising field. This type digital billboards are widely used ,indoor building,stadium,shopping ,airport etc;


    2. Features :

    Vivid and exact picture, minimum noise, advanced test equipment, support any pc operation system

    and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle


    Super brightness indoor full color LED billboard advertising

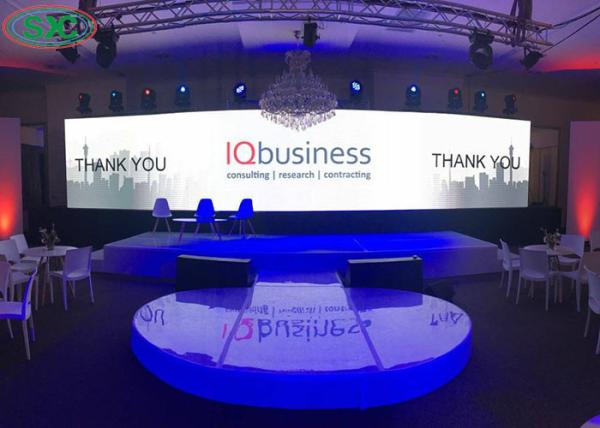

    In rental LED display series, The module design of the LED display enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display series are applied to large public squares. sport centers casino signage,public service announcement displays,media,commercial promotion and other large scale applications.

    1, Superb brightness and color uniformity and reproduction. Brightness varaiances within+/-2.5%

    2, High reliability: data hot backup aims to avoid any communication risks during the show; support automatic fault detection

    3, Proprietary image processing produces sharp, brilliant images unmatched by industry competition


    Methods for Quality Assurance

    a. Aging

    1. 100% fully test

    1. Condition: 72 hours with 256 gray leve
    2. b. Vibration Testing

    Condition: 3-5 min up and down in 5mm range


    Factory Equipment

    Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
    Automatic Glue- pouring Machine, Solder Paste Printing Machine,
    Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
    Withstand Voltage Tester, Ground Resistance Tester,
    Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
    Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.


    Competitive Advantage:

    1. 2 years’ warranty with free repair service

    2. 24/7 Hours online Remote Support

    3. Solution and PCB design

    4. Free factory training

    5. On site installation instruction and regular inspection

    6, Small order accepted.



    ♦ Our advantages

    Professional Manufacturer of led display


    1. OEM service,No MOQ

    2. Easy installation,regular items in Stocks

    3. Offering free design drawing as requested.

    4. Remote controlling and adjusting are available.

    5. Wooden case or flight case,you are the boss.

    6. Your reply will be replied within 24 hours.

    7. Fast delivery: Usually 6-8 working days

    8. Excellent R&D team,factory Price and assure you quality goods.


    ♦ Production process:


    1) Incoming Inspection→2)SMD→3)Plug-in

    →4) Wave Soldering→5)After Welding→6)Testing

    →7) Semi Finished Aging→8)Module Assembly

    →9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing


    ♦ Packaging and shipping


    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.


    ♦ Why choose us:


    Continues Quality

    With more than 10 years experience in led display producing,equipments are updated regularly.What’s

    more,unique standardized and module production ensure our products continuous quality.


    Competitive Price

    With large scale production capacity and professional production technology,our company have built

    effective modular production.We always stick to promote the technical innovation and reduce cost to

    benefit customers.


    Fast Delivery

    Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

    inventory will be used to maintain your uninterrupted supply of the products.


    Perfect Service

    Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

    you.

    After-sales:We will track the products usage and then constantly perfect our products.


    ♦ Applications


    --- Outdoor and indoor advertising, digital billboards, advertising companies
    --- Sports halls, fields, playgrounds,school church
    --- Airports, bus stations and railway passenger terminals.
    --- Facades of shopping malls, department stores, banks and car dealerships.
    --- Architecture and social projects, information systems in cities.
    --- Show-business, concerts, festivals, motor shows and other public events.


    ♦ FAQ


    What kind of payment terms you can accept ?

    We can accept T/T and Western Union.


    What about your Led Display quality ?

    Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

    our products continuity.


    What is your delivery time ?

    Within 7-35 days according to your area and quantity.


    Is your LED display competitive ?

    Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

    our led display’s competitiveness.
