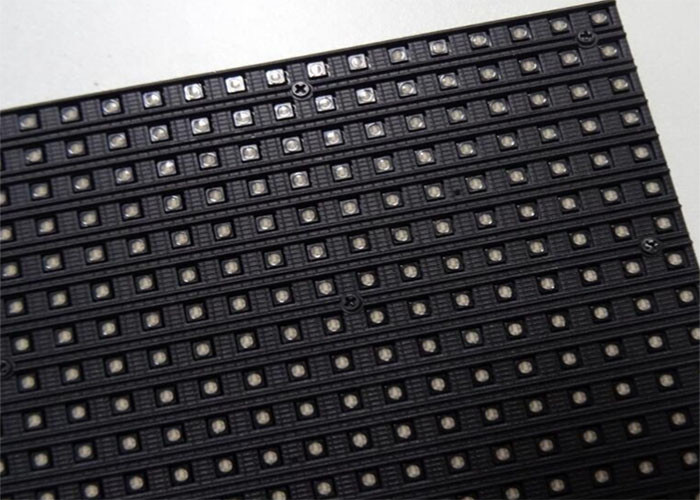

High refresh RGB full color P3 LED Display Module SMD2121 3 in 1 indoor led modules

Led display screen now are widely applied in media advertising, transportantion,Security,real estate and Stage show background.

Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution,high brightness and full color! LED display Advertising screen can easily attract the attention of pedestrians,and also are easy to remember,which can generate greater advertising effectiveness.

LED display,also called led screen, led video wall, or led sign, with its unique advantages,has gradually replaced the traditional billboards, light boxes,etc. LED display advertising has become a new force in the media industry.

High quality and resolution outdoor full color led led display P3 smd 2121
Resolution/mm	3
Pixel configuration	1R1G1B
Pixel density/pixels/m²	111111/m²
Module resolution	64x64
Module size/mm	192x192mm
View distance	1-150m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	2500 cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode	Constant driving current
Scanning mode	(1/16 scan)
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>10000hours
Life time	100000hours
Life-all-white(brightness halving)	100000hours
Environment temperature range	Operating temperature range: -20-45℃
Maximum power:/㎡	<700W
Average power:/㎡	<200W
Self-check technology	LED spot self-check, communications check, power check, temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%

The epistar Led chip. with SMD Technology .

we adopt the epistar led chip from Taiwan SMD led display module will be available

The wire or wireless controll system are available .( 3g/4g and wifi controll will be welcome)

Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.

Competitive Advantage:

1. 2 years’ warranty with free repair service

2. 24/7 Hours online Remote Support

3. Solution and PCB design

4. Free factory training

5. On site installation instruction and regular inspection

6, Small order accepted.

Payment and delivery

1) T/T, 30% deposit, 70% before shippment.
2) 100% Western Union in advance.

♦ Why choose us:

Continues Quality

With more than 10 years experience in led display producing,equipments are updated regularly.What’s

more,unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.

Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.

♦ FAQ

What kind of payment terms you can accept ?

We can accept T/T and Western Union.

What about your Led Display quality ?

Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of

our products continuity.

What is your delivery time ?

Within 7-35 days according to your area and quantity.

Is your LED display competitive ?

Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure

our led display’s competitiveness.

Shenzhen Shichuangxinke Electronic Co., Ltd. (Shenzhen SCXK Electronic.) was established in 2009 with 5 million yuan registered capital, which is a professional LED display and lighting manufacturer. The company administer Shenzhen Shixin Display Technology Co., Ltd. and Hong Kong Shichuangxin Technology. Co., Ltd.; which located in Yongxing Industrial Park, Dalang Street, Longhua District, Shenzhen, China, with a production area of over 3,000 square meters. Since its inception, Shichuangxinke (SCXK) has maintained rapid growth, have been sold to more than 130 countries and regions, and then Shichuangxinke brand has been highly recognized in the world.

Shichuangxinke insists on “customer first, integrity first, innovation, and strive for perfection” as its brand management philosophy. We are constantly working hard to be a responsible person. We have been using advanced technology, pursuing innovation, producing the highest quality products, and treating every order as our honor project. In order to make our products perfect, we have introduced the most advanced production equipment and testing equipment to maintain strict quality standards for each production process. Through these efforts, our products have passed many certifications, such as CE, UL, CCC, FCC, ROHS, SASO and so on.

Shichuangxinke products quality management strictly follows the ISO9001:2008 certification system and 7S management standards, and strives to be more perfect, which has a profound impact on the standardization of the LED industry.

Here, we promise that every customer, every order and every feedback will be valued by Shichuangxinke. Let us join hands and make "a more beautiful world, let products travel all over the world" as our mission to create a more colorful and more beautiful world.
