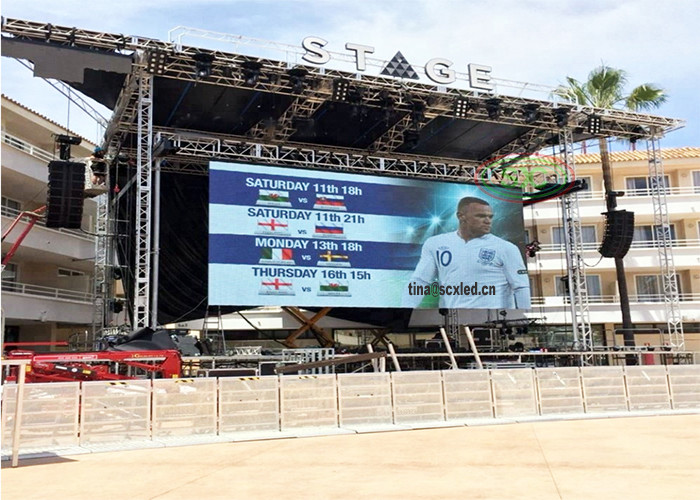

Large Exterior Airport High Brightness LED Display , outdoor p4
Concert LED Screen
Shenzhen SCXK Electronic Co.,Ltd has been devoting to high-quality
LED display designing & manufacturing for 12 years experience.
Fully equipped with professional team and modern facilities to
manufacture good LED display products, our products that have found
wide application in airports, stations,ports,gymnasiums, banks,
schools, churches ,etc.our LED are deployed across 100 countries
all over world,covering Asia, Middle East, America, Europe and
Africa.
| Pixel pitch | P4 |
| Module Parameters | Pixel pitch | 4mm |
| Pixel Density | 62500pixels/m2 |
| LED Shape | SMD 3 in 1 |
| LED Configuration | 1R1G1B |
| Module Resolution | 64*32 pixel |
| Module Size | 256mm*128MM |
| Drive Method | 1/8 |
| Cabinet Parameters | Cabinet Resoltuion | 128dots*128dots |
| Cabinet Size | 512mm*512 mm |
| Cabinet Weight | 36kg/m2 |
| Display Parameters | Optical | Brightness | ≥6500cd/m2 |
| Viewing angle | H/V 160/160 |
| Best Viewing Distance | 3-100m |
| Display Color | 16.7 million |
| Grey Scale | 10bits/1024levels |
| Power | Max power consumption | 1000 W/m2 |
| Ave power consumption | 500 W/m2 |
| Working Voltage | 220V / 110V |
| Control system | Frame Frequency | 60--85 HZ |
| Refresh Rate | ≥2000 HZ |
| Data Transmission | CAT 5/ Optic Fiber |
| Image Source | S-Video, PAL/ NTSC |
| Controlling system | linsn, Nova, Mooncell, ZD, Xixun,
Lumen, Dbstar |
| Format | Video Compatibility DVI, VGA, composite |
| Reliability | Working Temperature | -20~65 ℃ |
| Working Humidity | 10-90%RH |
| Life Span | 100,000 Hours |
| MTBF (Ave No Faliure Time) | 5000 Hours |
| Pixel failing Rate | 0.01% |
| IP Rate | IP 65
|
About our led displays
1.Wide application field & short ROI time:
commercial advertising LED display screen, Stadium perimeter LED
display screen, Mobile trailer LED display screen for mobile
media,shopping mall LED display screen for logo showing,
bank&stock exchange LED display screen for rates showing, train
& bus station LED display screen
air port LED display screen, telecommunication LED display screen
system for information showing and instruction .
2. High Contrast ratio: 4000:1
Which is a very high level to ensure a vivid image of our LED
display screen system.
3. First-class LED chip:
Supplied by Nichia of Japan & other high strictly selected LED chip
to ensure the long lifetime and high brightness of our LED display
screen system
4. Clear vivid image quality:
Even in direct, full-on sunlight to ensure you attract more
audience to get short ROI of your LED display screen's investment.
Methods for Quality Assurance
a. Aging
1. 100% fully test Condition: 72 hours with 256 gray level
b. Vibration Testing
Condition: 3-5 min up and down in 5mm range
The epistar Led chip. with SMD and DIP Technology .
We adopt the epistar led chip from Taiwan,DIP and SMD led display
module will be available
The wire or wireless controll system are available .( 3g and wifi
controll will be welcome)
The steer consturction is very stable for led display,and you can
purchase from your local market .
We can receive all kinds of transportation. and the shippment term.
FOB and CIF. EXW and so on.
We can choose the best shippment which is convenient to you!
SCXK group can give you the short delivery time and With the large
production ability.
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
A. Flight case Packing
1)150KG Per flight case
2)3 cabinets in one case
3)Flight case size: 1010mm*560mm*1175mm=39inch*22inch*46inch
B. Plywood case
1)180KG per plywood case
2)3 cabinets in one case
3)Plywood case size: 1120mm*585mm*930mm= 44inch*23inch*36inch
C.customized packing is acceptable
D. 20"FT container loading of 100sq.m
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection
(AOI) Equipment.
Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
