Church Public Stage Led Screens Backdrops LED Video Wall Panel
Indoor P3.91 HD LED Display
Advantages of Stage Led Screens
(1) High brightness DIP LED is used for outdoor led display, keeps the
display content visible even if facing the strong sunshine
directly.
(2) With Anti-UV ray mask, the color of the mask would never change
even if under exposure of UV ray.
(3) Weatherproof design, completely outdoor use.
(4) Easy for assembling and connection with the connector added.
(5) High color uniformity and clear image can bring you a vivid audio
visual effect.
Stage Led Screens Parameters
Model Number | P3.91 |
Description | Indoor Die casted Aluminum Cabinet |
Application | Indoor use, AV rental |
Pixel configuration | SMD 3-IN-1 1514 Black LED |
Pixel pitch | 3.91 mm |
Pixel resolution per standard cabinet | w 128 x h 128 pixels 500x 500MM |
Module size | Width: 250 mm, Height:250mm |
Pixel resolution per module | W 64 x h 32 pixels |
Pixel density per sq/m | 65410 dots per square meter |
Minimum viewing distance | Minimum 2 meters |
Brightness | 1000CD/M2 |
Grey scale | 14BITS |
Color Number | 68.7194billion |
Display Mode | Synchronous with video source |
Data refresh rate | ≥1920HZ |
Driver IC | MY9266 |
LED drive | 1/15 SCAN, constant current |
Control system type | NOVA |
Control software name | NOVA STUDIO |
Viewing angle | Vertical 140° Horizontal 140° |
Temperature range | -20°C to +60°C |
Ambient Humidity | 10%-99% |
Service access | Rear |
Standard cabinet weight | 5Kgs(0.4x0.3m) |
Power Consumption | Max:80 w/sqm; Average :40 w/sqm |
Protection Level | Front: IP43 Rear: IP43 |
Lifetime to 50% brightness | 75,000hr |
LED Failure Rate | <0,00001(Led display line standard <0,0001) |
MTBF | > 10.000 hours |
Input power cable | AC110V to 220V |
Signal input | DVI |
Certification | CE, ROHS, CCC marked |
Warranty | 2 Years quality warranty, 10 YEARS SPARE PARTS SUPPORT |

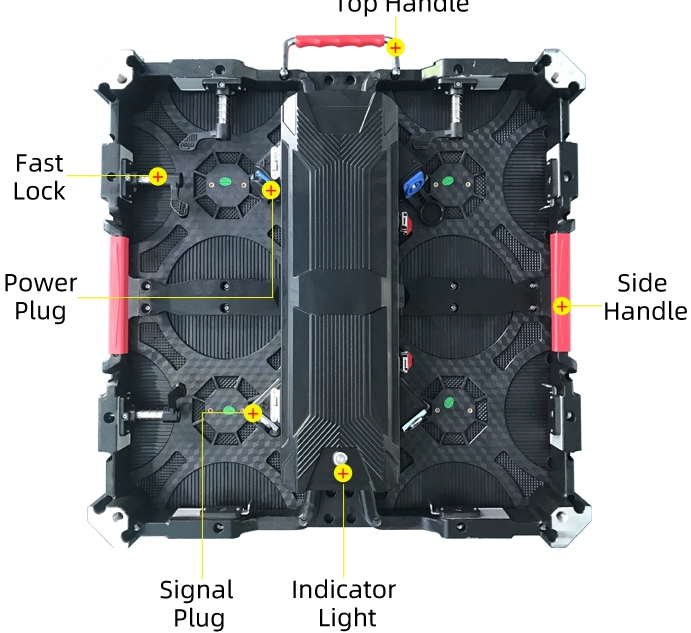

Stage Led Screens Detailed Pictures
Stage Led Screens Production process
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
Our service and warranty
1.We guarantee all our screens, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the
operation and maintenance training of the LED screens in the
factory.
3.After warranty , we also can offer you the parts for replacement
at our bottom price.
4.After sales, if you have any problem about our product, you can
inform us by Email, we will reply you at once when we get it and
offer you a good solution
to solve the problem.
5.We also could solve problems for you until it recovers well by
remote control.
FAQ
Q1. How could I buy the products I need if there is no price in the
website?
You can send your inquiry to us about the products you need,our
sales will reply you within 24 hours to help you make the order.
Q2. How long could I get reply of my inquiry?
You will get a reply within 24 hours.
Q3. What kind of warranty do you offer?
all product here we offer 3 year at least warranty.
Q4. How is the after sales service?
We have a professional team which is in charge of after-sales
service, also a service hot-line dealing with your complains and
feedback.We also offer 24-hour online service to help you solving
problems.
Q5. What kind of payment methods do you have As a manufacturer?
We take T/T and Cash as payment terms
Q6. How long will it take to deliver goods?
We will start preparing goods when we get your bank receipt. The
package will be shipped out in 1-2 working days after we get your
payment.
Q7. What kind of packaging you offer?
During the packaging process, preventive measures will be taken by
us to assure that the goods are in a good condition during storage
and delivery.
Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
