Brand Name : | SCX |
Model Number : | P3.91 |
Certification : | CE/ROHS/FCC/ISO/UL |
Price : | negotiation |
Payment Terms : | T/T, Western Union, MoneyGram |
Supply Ability : | 3000sqm per month |
Delivery Time : | 7 working days after receive your payment |
high definition 3 years warranty full color 3840hz p3.91 indoor curve led display screen for stage
Stage Led Screens Products function
LED module | |||
Pixel pitch(mm) | 3.91mm | ||
Module size(W×H) | 250mmX250mm | ||
Pixel configuration | SMD2121 | ||
Module resolution(W×H) | 64dots × 64dots | ||
Module pixels | 4096dots |
LED cabinet | ||||
Cabinet size(WxHxD) | 500mm×1000mm | |||
Cabinet resolution | 128dots×256dots | |||
Cabinet pixels | 10816dots | |||
Driving method | 1/16 scan, constant current | |||
Weight(kg/pcs) | 10kg/pcs | |||
Material | aluminum cabinet | |||
Included | 1. E-energy/Meanwell Power supplies | |||
2. MBI5124IC/ICN2153 high refresh IC | ||||
3. Mounting/locking plates between cabinets | ||||
4. air plug Inter-connecting cables & ribbons (both power and signal) |
Working voltage | 110/220V 50Hz-60Hz | ||
Average power consumption | 350W/m² | ||
Max power consumption | 750 W/m² | ||
Brightness | > 1000 nits (cd/m²) | ||
Gray level | 65,536 levels | ||
Refresh rate | > 1920/3840Hz | ||
Viewing angle | 150°/150° | ||
best Viewing distance | 3.91m-100m | ||
Frame rate | > 60 frames/sec | ||
Defects rate | ≤0.00001 | ||
Available color palette | 4.4 Trillion colors (RGB 14 bit control) | ||
MTBF | > 10,000hours | ||
Life-span | > 100,000 hours | ||
Protective Grade | IP45 | ||
Working temperature | -20℃ ~ +60℃ | ||
Operating humidity | 10%~90% |

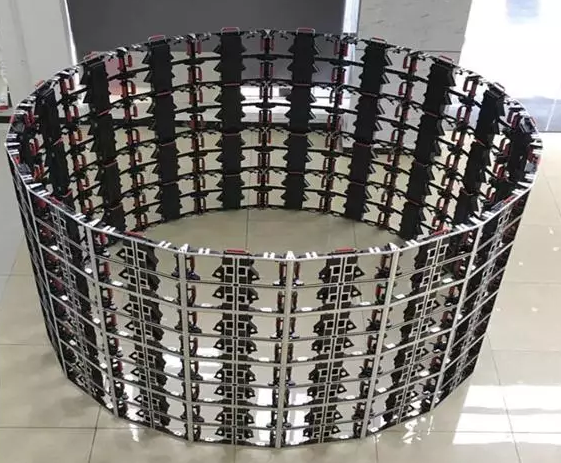

Stage Led Screens Detailed Pictures
Why choose us
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly perfect our products.
![]() |
