Name | P2.5 |
Pixel | SMD2121 3 in 1 LED |
Pixel Pitch (mm) | 2.5 |
Module Resolution (W×H) | 128×64=8192 |
Module Size (W×H: mm) | 320×160×15 |
Module Weight (kg) | 0.32 |
Modules Power Consumption Max (W) | ≤40 |
Module Unit in Cabinet (W×H) | 2×4 |
Cabinet Resolution (W×H) | 256×256 |
Cabinet Size (W×H:mm) | 640×640 |
Cabinet Weight (kg) | 9 |
Density (dot/㎡) | 160000 |
Cabinet Area (㎡) | 0.4096 |
Maintenance | Front/Rear |
Brightness (CD) | ≥600 |
Color Uniformity (K) | 6500-9300 Adjustable |
View Angle (H/V°) | 110/110 |
Luminous center distance deviation | ＜3% |
Brightness/Color Uniformity | ≥97% |
Contrast | 3000:1 |
Power Consumption Max (W/㎡) | 800 |
Power Consumption Avg (W/㎡) | 240 |
Input Voltage | AC 220V/ AC 110V (Optional) |
Frame Rate (Hz) | 60 |
Scan Driver | Constant, 1/32 Scan |
Grey Scale | 16384 |
Refresh Rate (Hz) | ≥1920 |
Color Processing Depth | 14 bit |
Display Capability | 2K HD, 4K Ultra HD |
Life Span (hrs) | 100, 000H |
Operating Temperature (℃/RH) | -10~40 / 10%~80% RH (non-condensing) |
Stroage Temperature (℃/RH) | -20~60 / 10%~85% RH (non-condensing) |

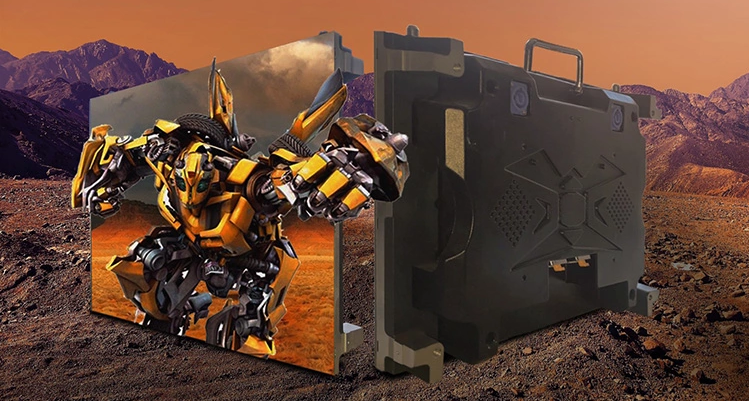

Stage Led Screen Pictures

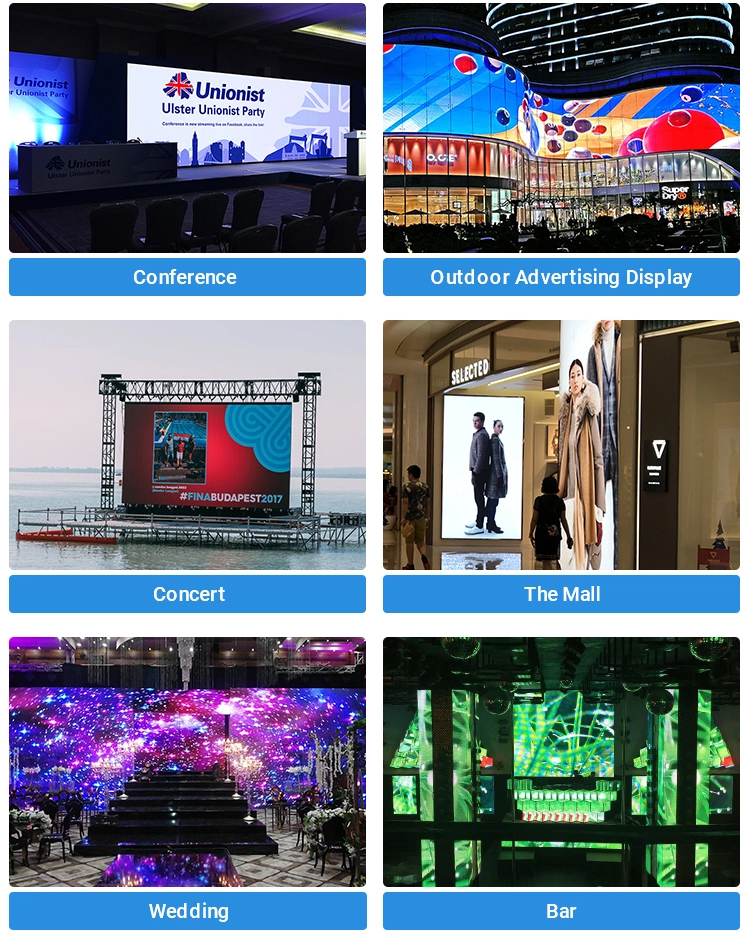

Stage Led Screen Projects
Our Service
Pre-sales
In order to build long term business relationship with you,Here
belowing are what we will do for you :
1, Pictures and videos related to your peoject will be offered for
your reference
2. Engineering cases will be shared with you
3. Related drawing share with you
4, Best led display cost and shipping cost offered for you
5. Check with previous customers that in your place about
installation fee for you
After-Sales
1. 3 years warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions,
squares and so on.
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates , What's more, we have
FCC, SAA, BIS, SASO etc to meet different countries customer's need
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea: 15-20 days; by air: 3-7 days ;by express:3-6days
