    P10 Outdoor Advertising LED Display Screen Module Digital Signage Sign Board

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : P10
    Certification : CE/ROHS/FCC/ISO/CB/UL
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 5000sqm per month
    Delivery Time : 7-10 working days after receive your payment
    • Product Details
    • Company Profile

    P10 Outdoor Advertising LED Display Screen Module Digital Signage Sign Board

    Outdoor Waterproof P10 Fixed Installation LED Advertising Billboards Module 32x16 Dots


    The high resolution LED billboard is known for displaying great quality pictures and videos to a broader audience. Highly usable for outdoor advertising such as banks, stages, promotion, exhibitions, highways, stations, stadiums and other outdoor areas.

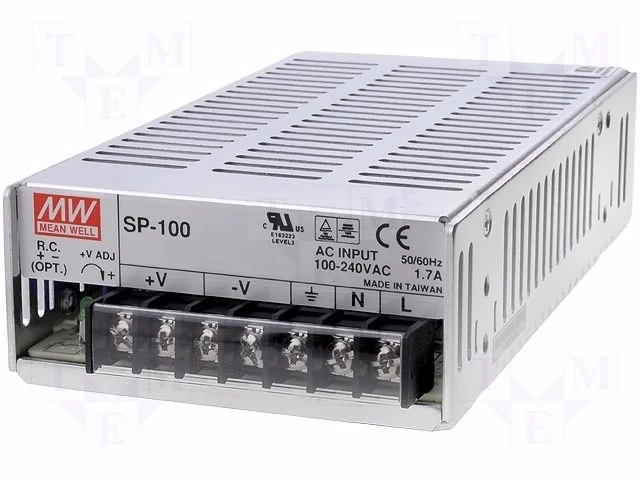

    Well-known brand power supply, saving energy and high efficiency

    All series outdoor Fixed adopt Meanwhile power supply, electro optic conversion ratio up to 82%, low heat dissipation and long life span. Normal power supply electro optic conversion ratio is under 80%, and high heat dissipation, not stable, low cost.

    The high resolution LED billboard is known for displaying great quality pictures and videos to a broader audience. Highly usable for outdoor advertising such as banks, stages, promotion, exhibitions, highways, stations, stadiums and other outdoor areas.

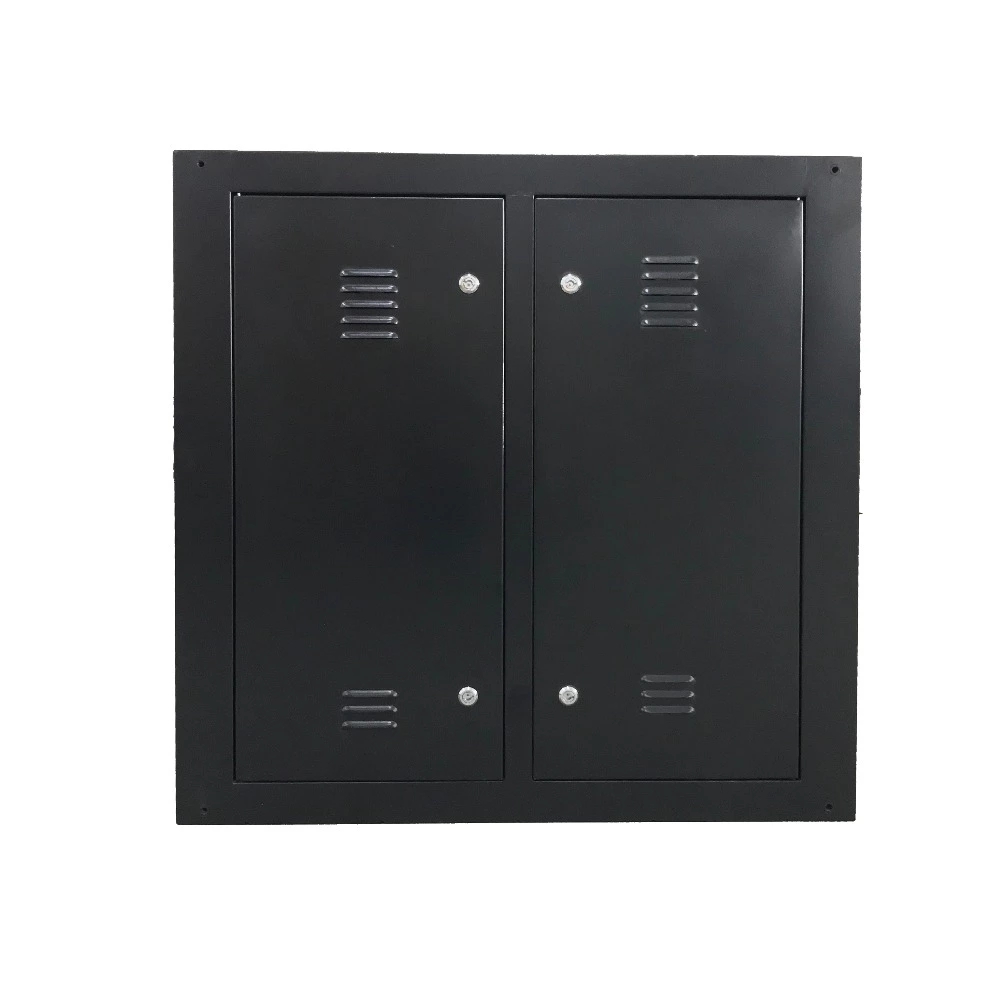

    Unique Design - Easy to Install & Transport

    The cabinet of P10 SMD Outdoor LED Billboard features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It's damage free and lasts for a lifetime. Pick out from different standard colors of cabinets.

    Specification


    outdoor P10
    Resolution/mm10
    Pixel configuration1R1G1B
    Pixel density/pixels/m²10000/m²
    Module resolution32x16
    Module size/mm320x160
    View distance10-300m
    Single point brightness adjustCan be added
    Single point color adjustCan be added
    White balance brightness>5000cd/㎡
    Color temperature6500K-9500K
    Horizontal view angle120(degrees)
    Vertical view angle60(degrees)
    Signal Process bit10 or 16bit
    Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distancesInternet cable:100m, multimembrane:500m, monofilm:2km
    Driving modeConstant driving current
    Scanning modestatic dring
    Frame rate60Hz
    Refresh frequency>3000Hz
    Control modeComputer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted

    255 steps. No grey loss

    Out of control point<1/10000
    Working hours≥72hours
    Mean Time Between Failure>5000hours
    Life time100000hours
    Life-all-white(brightness halving)50000hours
    Environment temperature rangeOperating temperature range: -20-45℃
    Maximum power:/㎡<600W
    Average power:/㎡<200W
    Self-check technology

    LED spot self-check, communications check, power check,

    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,

    send out warning signs to the operators.(need customization)


    Installation Procedure


    ♦ Packaging and shipping


    Wooden case or flight case package are available.

    Shipping by sea,air or DHL,multiple shipping ways for your choice.


    ♦ Why choose us


    Continues Quality

    With more than 10 years experience in led display producing,equipments are updated regularly.What’s

    more,unique standardized and module production ensure our products continuous quality.


    Competitive Price

    With large scale production capacity and professional production technology,our company have built

    effective modular production.We always stick to promote the technical innovation and reduce cost to

    benefit customers.


    Fast Delivery

    Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

    inventory will be used to maintain your uninterrupted supply of the products.


    Perfect Service

    Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to you.

    After-sales:We will track the products usage and then constantly perfect our products.
