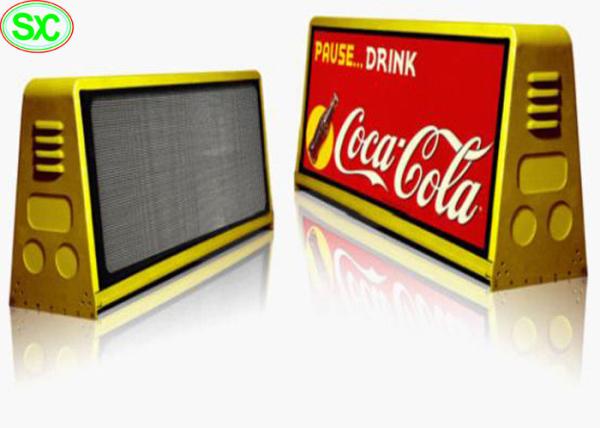

    Video P4 Car LED Top Video Sign Display Taxi Roof LED Sign 3G WIFI

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : SMD P4
    Certification : CE/ROHS/FCC/ISO/UL
    Price : negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5000sqm per month
    Delivery Time : 7-10 working days after receive your payment
    • Product Details
    • Company Profile

    Video P4 Car LED Top Video Sign Display Taxi Roof LED Sign 3G WIFI

    Video P4 Car LED Top Video Sign Display Taxi Roof LED Sign 3G WIFI

    Multiple Control Mode

    Our taxi top panel supports multiple control mode including 3G / Wifi / Wlan / USB control.
    GPS fuction is optional. we will choose control card based on your requriement ( need GPS or Not) .

    Special design - USB port at bottom

    USB PORT at panel bottom location : you just need to upload the advertising video to USB disk , then insert the USB disk to the port, our panel will download the advertising automatically at short time. After the download procedure you can remove the USB disk. So easy for operation.


    ♦ Product specification

    Lamp sizeSMD
    Resolution/mm4
    Pixel configurationRGB 3 in 1
    Pixel density/pixels/m²62500/m²
    Module resolution64x32
    Module size/mm256*128MM
    View distance≥3m
    Single point brightness adjustCan be added
    Single point color adjustCan be added
    White balance brightness>8000cd/㎡
    Color temperature6500K-9500K
    Horizontal view angle120(degrees)
    Vertical view angle60(degrees)
    Signal Process bit10 or 14 bit
    Grey process1024x1024x1024 16834x16834x16834 65536x65536x65536
    Control distancesInternet cable:100m, multimembrane:500m, monofilm:5km
    Driving modeConstant driving current
    Warranty5 years
    Frame rate60Hz
    Refresh frequency>4200Hz
    Control modeComputer synchronous
    Brightness adjusted range

    Manual, automatic operation, stepless continuous adjusted
    255 steps. No grey loss

    Out of control point<1/10000
    Working hours≥72hours
    Mean Time Between Failure>5000hours
    Life time100000hours
    Life-all-white(brightness halving)50000hours
    Environment temperature rangeOperating temperature range: -20-45℃ Storing temperature range: -30-65℃
    Maximum power:/㎡<950W
    Average power:/㎡<350W
    Self-check technology

    LED spot self-check, communications check, power check,
    temperature monitor(need customization)

    Remote monitoring

    Remote supervision and control, record potential fault,
    send out warning signs to the operators.(need customization)

    Software environmentWindowsNT,Windows1999,WindowsXP
    Luminous point width between centresDeviation<3%
    Brightness uniformity<10%
    Color uniformity(chromaticity coordinate)±0.003
    Power supply requestAC85-264V(50Hz-60Hz)
    Contrast(1000:1)
    System protectionMoistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
    Humidity(working)working:10-95%
    Humidity(storing)storing:10-95%



    ♦ Production process:
    1) Incoming Inspection→2) SMD→3) Plug-in
    →4) Wave Soldering→5) After Welding→6) Testing
    →7) Semi Finished Aging→8) Module Assembly
    →9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

    ♦ Packaging and shipping
    Wooden case or flight case package are available.
    Shipping by sea,air or DHL,multiple shipping ways for your choice.

    Seamless Splice
    The P5 LED Display can be installed within minutes. You may configure the Small Pixel LED Display as per your requirements and choice. Adjust the brightness, gray scale and picture quality as per your choice. Advanced adjustment options allow you to set up the display as per the environment conditions and area of installation.

    Perfect Brightness and Chromaticity Calibration
    Perfect calibration between brightness and chromaticity delivers best picture quality at every place. The brightness difference is set to less than 2%, and chromaticity difference is less than 0.005. You may also adjust the brightness and chromaticity as per your choice.

    Get Every Detail in Picture
    We spend some time with every detail of the product, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen.
