HD Flexible Curtain LED Display P5mm , Waterproof IP65 Super Thin
LED Screen
Innovative Display Fabric Frame that holds graphics tight
• Lighted with efficient LED strips.
• The Silicone strip (green) gets stitched to the graphic’s
perimeter and inserted into the frame
channel for a drum tight fit.
• To ensure strength and stability, the wall thicknesses of our
fabric frame profiles are substantial
and exceed typical standards.
• Our unique quick connect brackets make assembly fast and easy.
Graphics are easily changed
out which is perfect for retail promotions and advertising.
• Mounting options include Wall, Ceiling or Floor- Free Standing.
• Free standing and hanging fabric light box frames can be made
double sided for a unique,
professional looking display. You can use the same graphic on both
sides or use
♦ Technical specification
| outdoor SMD P5 |
| Resolution/mm4 | |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 40000/m² |

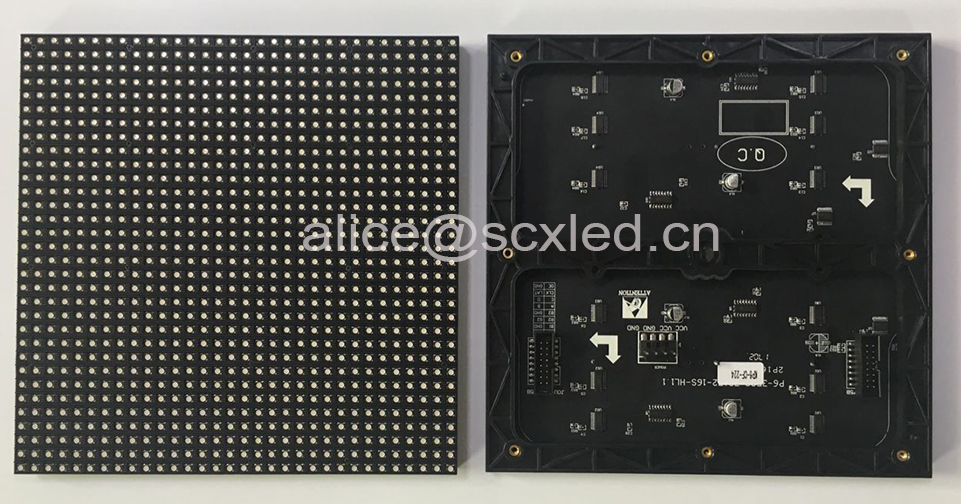

| Module resolution | 32x32 |
| Module size/mm | 160x160 |
| View distance | 4-400m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | (1/8) |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/㎡ | <1000W |
| Average power:/㎡ | <350W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
| Product overviews |
| Items | Indoor Led display:
P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Dance floor led display
DJ led screen
Transparent led display |
| Material | steel,aluminum ,die casting aluminum |
| Certificates | CE, FCC,RoHS, CCC, UL |
Payment
terms | 30% deposit before production, 70% balance before shipping |
| T/T |
| Western Union |
| Packing: | Standard Export Carton with fully Polyfoam or Pearl Wool |
| Flight case; |
| Anti-shaking wooden case |
| Shipping: | 5 to 7 working days upon receiving deposit payment |
| After-Sales-Service: | Lifetime with professional engineer support for free. |
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage) |
| Using Range | Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on. |
Star Product, Superb Quality
The P5 LED Display is manufactured by using best quality material,
purchased from most reputed vendors. The final products feature
supreme quality and offers best outputs. High refresh rate and gray
level ensures the picture quality remains seamless.
Get Every Detail in Picture
We spend some time with every detail of the product, so that you
can enjoy every detail of your marketing pictures. The
pixel-perfect pictures are a treat to watch. It means, you will not
miss any detail in the picture, video or text displayed on the
screen
Perfect Brightness and Chromaticity Calibration
Perfect calibration between brightness and chromaticity delivers
best picture quality at every place. The brightness difference is
set to less than 2%, and chromaticity difference is less than
0.005. You may also adjust the brightness and chromaticity as per
your choice.
♦ Production process
1) Incoming Inspection→2)SMD→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us
Assured High Quality
With more than 10 years experience in led display
producing,equipments are updated regularly. clients cover more than
50 cuntries. As a high-tech enterprise integrated with scientific
research, design, production, maintenance, sales and system
integration, we have a professional high-quality technical R & D
team,rich experienced engineers and professional product
development and design engineers,excellent marketing team, pre and
after-sales 24 hours service.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
