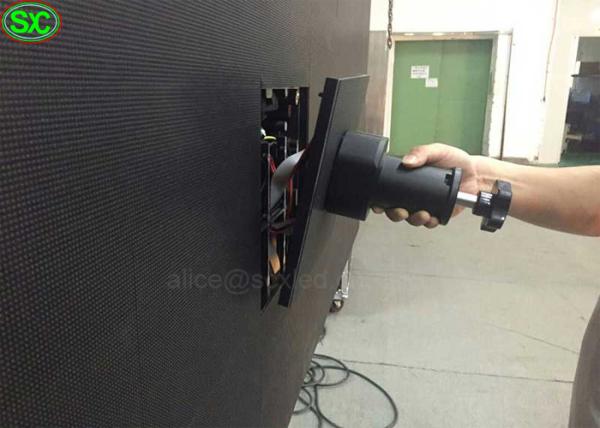

P8 SMD Outdoor High Definition Open Front service LED billboards
Screen
♦ LED display screen Features:
--- Durable fresh color and High brightness
Design of anti-glare mask with high temperature resistant coating
on the surface to absorb direct light, reduce glare, and improve
the contrast ratio of display.
---- High energy efficiency
Adopt high-brightness LED with low consumption, saving 20% power
energy.
High PFC power supply can cut 20% power consumption.
Additional temperature, display and brightness management can also
save 6% power energy.
♦ Product specification
| outdoor SMD P8 |
| Resolution/mm | 8 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 15625/m² |
| Module resolution | 32x16 |
| Module size/mm | 256x128MM |
| View distance | 6-500m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >8000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | (1/4) |
| Frame rate | 60Hz |
| Refresh frequency | >2500Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Maximum power:/㎡ | <800W |
| Average power:/㎡ | <300W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Our Service:
Pre-sales support
1. We offered technical advice to our customers before buying our
products.
2. Help customers to choose suitable products within budget with
most economy benefit.
3. Design the framework structure to install our led products with
technical drawing.
4. We offered software customization for our customer’s specific
usage.
After- sales service
1. We promise our customers 3 years warranty service!
2. We provide free maintenance services including remote
configuration, technical consultation, and trouble shooting for our
customer.
3. We promise a life time follow up service for all the equipment
supply by our company. These include continuously improve of system
functions and upgrade of system software.
4. We offered training to our customer who includes operating and
maintenance of our products.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
