    SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : P3
    Certification : CE/ROHS/FCC/ISO/UL
    Price : negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5000sqm per month
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

    SMD 2121 Full Color SMD2121 P3 Meeting Room Video Wall Screen

    Indoor Full Color SMD2121 P3 Meeting Room Video Wall Screen available adjust brightness


    Product Features

    1) Reliable quality, advanced and mature technology, compliant with industrial standards and technology developing trend.
    2) Good heat emission, water proof and stable performance.
    3) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting signal.
    4) High resolution and definition of screen image, clear and non-flash screen image.
    5) Supports video and radio frequency input, special structure can be freely assembled.


    Module Parameter:

    Pixel pitch3mm
    Pixel configuration1R1G1B
    LED type3-in-1 SMD 2121
    Module size192x192mm
    Module weight0.35kg
    Module resolution64*64dots
    Module quantity per cabinet9pcs

    Cabinet Parameter:

    Cabinet size576x576mm
    Cabinet materialdie casting aluminum
    Cabinet weight9.5kg+/-0.05kg
    Cabinet resolution192x192 dots
    Ingress protectionFront/Rear IP65/IP54

    Whole Screen Parameter

    Pixel density111111dots/m²
    Brightness≥1500 cd/m²
    Viewing angleH≥120° V≥120°
    Min.viewing distance3m
    Max.power consumption900W/m²
    Avg.power consumption300 W/m²
    Working voltage110~220VAC±15%
    InterfaceHUB75
    Colors16.7millon colors
    Gray level14-16bits
    Frame frequency≥60frames/s
    Refresh rate≥1000Hz
    MTBF≥10000 hours
    Lifespan≥50000 hours
    Protective function

    Over-heat/Over-load /Power-down /Power-leakage

    /Lightning-protection etc.

    Operating temperature-10℃ ~ +40℃
    Operating humidity10-80% no condensation
    Storage temperature-20℃ ~ +60℃
    Storage humidity10-85% no condensation

    Control System Parameter:

    Video signal (with video processor)AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
    Color temperatureAdjustable by software
    Brightness level256 levels, automatic adjustment by software
    Control wayComputer, video-synchronous, real-time, off-line, wireless, internet etc.

    Cabinet photo

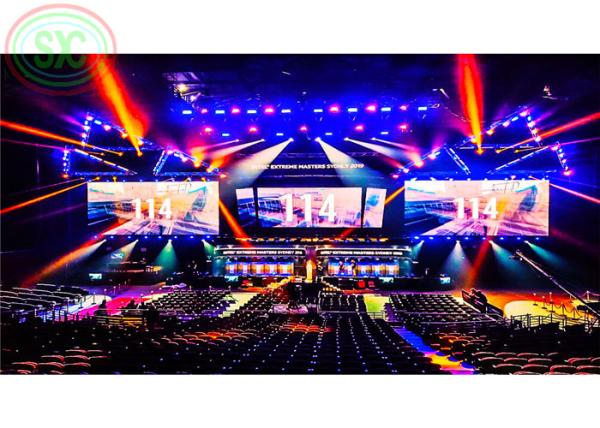

    Total installation effect


    Product item
    Many other hot product, welcome to visit our company!


    Company profile

    Certificate

    Packaging and shipping
    Shipping by sea,air or DHL,multiple shipping ways for your choice.

    Our service


    Warranty
    1.We guaratee all our display, modules, spare parts for TWO years.
    2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
    3.After warranty, we also can offer you the parts for replacement at our bottom price.
    4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
    when we get it and offer you a good solution to solve the problem.
    5.We also could solve problems for you antil it recovers well by remote control!
    Delivery time
    1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
    2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
    Installation
    1.We can assist the training and technical support for the customer in the factory, if the customer require so.
    2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
    3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need

    Contact details
    Salesman: Andy
    Skype: Andy liu

    Wechat:liu15179028073
    Tel:+86-15797878183 (whatsapp)
    E-mail:Andy_he@scxled.cn
    Web: www.rgbleddisplays.com or www.scxled.com
