    Football / Basketball Stadium LED Display P8 P10 Outdoor Advertising Ironed Steel Cabinet

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : P8 or P10
    Certification : CE/ROHS/FCC/ISO/UL
    Price : negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5000sqm per month
    Delivery Time : 5-10 working days
    • Product Details
    • Company Profile

    Football / Basketball Stadium LED Display P8 P10 Outdoor Advertising Ironed Steel Cabinet

    P8 or P10 outdoor advertising football/basketball stadium field playground led display screen


    Product characteristic

    The stadium led displays are widely used in the football field, basketball court , swimming center and diving center.
    1. Show function(advertising, such as Nike, Coca cola,etc)
    2. Function of time and score(live showing the score)
    3. Information processing function
    4. Emergency treatment function


    Parameter specification

    modelP8P10
    Pixel unit modulePixel pitch(mm)810
    Pixel density (dots/sqm)1562510000
    LED typeSMDSMD
    Module size(mm)W320xH160W320×H160
    Pixel composingRGB full colorRGB full color
    Pixel unit screenscreen size(mm)960*960mm960*960mm
    module Resolution (nits)32*1632*16
    Cabinet structureWater-proofWater-proof
    screen materialIroned steel cabinetIroned steel cabinet
    Protect degreeIP65 front ,IP54 rearIP65 front ,IP54 rear
    Viewing distance(m)8-100m10~100m
    Brightness(cd/sqm)≥6000 cd/sqm≥6000 cd/sqm
    Power consumption (w/sqm)Max 850W/sqm ,Min 280W/sqmMax 600W/sqm ,Min 200W/sqm
    Driving IC1/4 scan MBI Brand Driver1/4 scan MBI Brand Driver
    Refresh rate(HZ)≥960-2000≥960-2000
    Viewing angel(c)H120 V120H120 V120
    Other parameterImage adjustmentcontrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc
    Image processingVideo noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc
    Brightness uniformityThe whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9
    Gray65536
    Color temperature/contrastRed, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need
    Transmitting DistanceThe shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers
    Input SignalRF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION
    Control SystemPCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer
    Average No Failure Time20000 hours20000 hours
    Life span100,000 hours100,000 hours
    Out-of Control rate0.00010.0001
    To floor drain currentLess than 3.5MALess than 3.5MA
    Control systemSynchronizedSynchronized
    Operating Environment Temperature-20°C—65°C Optional-20°C—65°C Optional

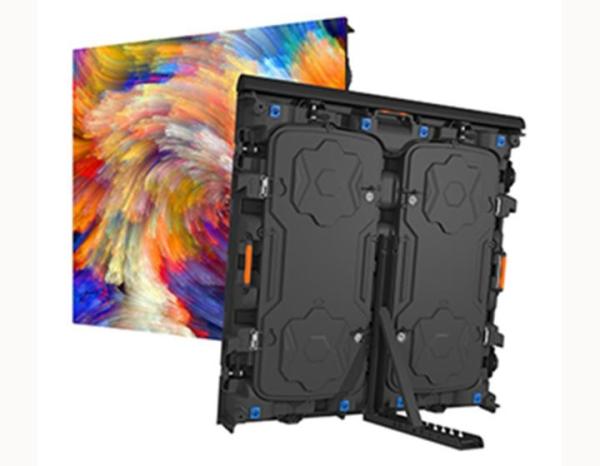

    Cabinet photo


    Buying Guides
    In order to offer you a suitable solution, please follow the guides bellowing :
    1,Star effect or video effect which you need.
    2,Dimension (Width and Height)
    3,Location of installation. (picture is best)
    4,Purpose. ( what are you going to do with the LED Curtain)

    After-Sale Service
    1. Three year warranty , Lifetime free maintenance.
    2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
    3. Customer satisfaction tracking report.
    4. Free technician training.
    5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
    6. Special service for big project, such as stadium, exhibitions, squares and so on.

    Company profile



    Certificate


    Packaging and shipping
    Wooden case or flight case package are available.
    Shipping by sea,air or DHL,multiple shipping ways for your choice.
