    Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty

    Ask Lasest Price
    Brand Name : SCXK
    Model Number : P10
    Certification : CE/ROHS/FCC/ISO/UL
    Price : negotiation
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 5000sqm per month
    Delivery Time : 5- 10 working days
    • Product Details
    • Company Profile

    Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty

    Column type P10 Led Outdoor Advertising Screens 1/4 Scan Module 3 Years Warranty

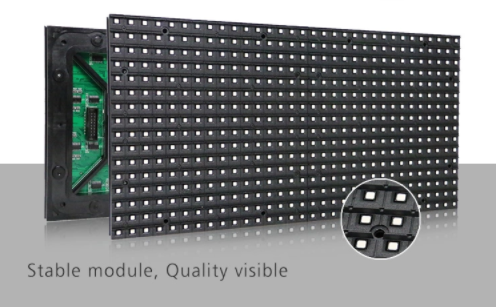

    Module Parameter

    Pixel pitch10mm
    Pixel configuration1R1G1B
    LED type3-in-1 SMD 3535
    Module size320x160mm
    LED lampKingLight or Nationstar
    Module resolution32x16dots
    Module quantity per cabinet18pcs

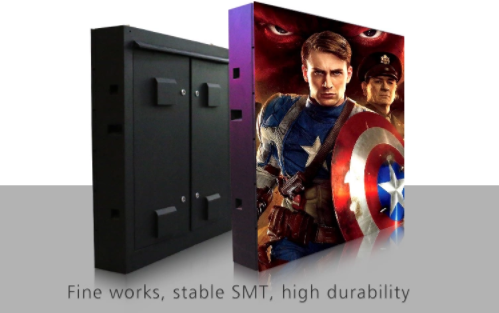

    Cabinet Parameter

    Cabinet size960x960mm
    Cabinet materialIroned steel cabinet
    Cabinet weight32.5kg
    Ingress protectionFront/Rear IP65/IP54


    Whole Screen Parameter

    Pixel density10000 dots/m²
    Brightness≥7000 cd/m²
    Viewing angleH≥120° V≥120°
    Min.viewing distance10m
    Max.power consumption800W/m²
    Avg.power consumption280 W/m²
    Working voltage110~220VAC±15%
    InterfaceHUB75
    Colors16.7millon colors
    Gray level14-16bits
    Frame frequency≥60frames/s
    Refresh rate≥600Hz
    MTBF≥10000 hours
    Lifespan≥50000 hours
    Protective functionOver-heat/Over-load /Power-down /Power-leakage
    /Lightning-protection etc.
    Operating temperature-10℃ ~ +60℃
    Operating humidity10-80% no condensation
    Storage temperature-20℃ ~ +60℃
    Storage humidity10-85% no condensation


    Control System Parameter

    Video signal (with video processor)AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP
    Color temperatureAdjustable by software
    Brightness level256 levels, automatic adjustment by software
    Control wayComputer, video-synchronous, real-time, off-line, wireless, internet etc.





    Product item
    Many other hot product, welcome to visit our company!


    Company profile

    Certificate

    Packaging and shipping
    Shipping by sea,air or DHL,multiple shipping ways for your choice.

    Our service


    Warranty
    1.We guaratee all our display, modules, spare parts for TWO years.
    2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
    3.After warranty, we also can offer you the parts for replacement at our bottom price.
    4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
    when we get it and offer you a good solution to solve the problem.
    5.We also could solve problems for you antil it recovers well by remote control!
    Delivery time
    1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
    2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
    Installation
    1.We can assist the training and technical support for the customer in the factory, if the customer require so.
    2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
    3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need
