Indoor P2.5 led Poster advertising board LED Display Screen 4G WiFi
USB Control High Quality LED Panel
The Application of led poster screen
Indoor poster perfect match for hotels and can also be used at
bank, store, airport, hotel, station, summit, theatre and other
indoor areas.
The technical parameters of LED poster screen
| indoor SMD P2.5 |
| Lamp size | 2121 |
| Resolution/mm | 2.5 |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 160000/m² |
| Module resolution | 64x64 |
| Module size/mm | 160x160 |
| View distance | ≥0.5m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >2500cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 140(degrees) |
| Vertical view angle | 140(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 |
| Frame rate | 60Hz |
| Refresh frequency | >4200Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range:
-30-65℃ |
| Maximum power:/㎡ | <1000W |
| Average power:/㎡ | <280W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-90% |
| Humidity(storing) | storing:10-90% |
The features of led poster screen
1)Easy to maintain
Our poster screen uses the reasonable structure. We choose the magnetic absorption module, so it can be maintained
from the front.
2)Revolutionary energy-saving technology
Using low power consumption led module not only saving running
costs but also expends the lifespan working in low power
consumption.
3) Integrated design
Select professional-grade aviation plug as connectors, which make
quality and safety are guaranteed. Integrated circuit design
ensures product stability and reliability.
4)Lighter and Thinner
It's lighter than traditional advertising players which makes it
easy to transport and install.
5)Revolutionary energy-saving technology
Using low power consumption led module not only saving running
costs but also expends the lifespan working in low power
consumption.
6)Excellent display effect
140°viewing angle can reach more audiences and make a good
advertising display effect. 16bits color depth processing, accurate
color
reproduction, make image vivid and live.
7)Strict Aging Test
All products undergo a strict aging test. The 72 hours aging test
is conducted without die lamp, dim lamp, color difference and
mosaic. The Best Indoor Advertising is introduced in the market
only if it passes the aging test, making sure the best quality is
ensured for you.
8)Online control
Through the network centralized control management platform to
achieve remote monitoring and management, with custom broadcast
software, to achieve a key to edit the program content.

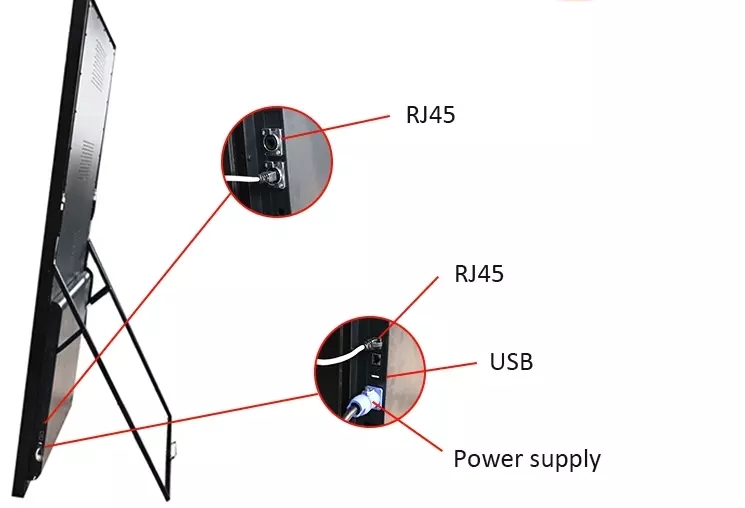

More details of led poster screen
Our service
1. Warranty
1) We provide warranty of all components for 3 full years. During
this time, we will replace or repair our goods for free if there is
something wrong with them.
2) We will provide maintenance for a lifetime and charge for the
raw materials only.
2. Technology Training
1) We provide the technology training for free, which contains the
operation training and maintenance
2) training in the factory.
3) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
1) We provide full maintenance for a lifetime and charge for the
raw materials only.
2) We also provide lifetime consultation by E-mail, Skype, WhatsApp
or other ways for free.
4. Documents and Certification
1) We provide the operation manual, software, test report and so
on.
2) We can also provide all kinds of certifications such as CE, LVD,
RoHS, and so on.
5. CAD Drawing and Fixing
1) We provide CAD drawing on how to fix up the display for free and
some other expert suggestions.
2) We will send our engineers to your place if we are expected
after our negotiation.
6. Additional Service
1) We provide you the forwarding information, and some other
information such as flight box, structure
Packing&shipping
Packing: wooden case, flight case for choose
shipping: by air, sea, train, DHL, you are the boss
FAQ
Q1: What`s your payment term? How long it takes to delivery?
A: We accept T/T and L/C, For both T/T and L/C,Our average
Production tim
e is 16 days, after receiving the deposit.
Q2. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q3: What about your pre-sale service and post-sale service?
A: For pre-sale service: We have a professional sales team and a 8
years technical team who are willing to answer your question . We
can offer a whole complete solution for your project!
For post-sale service: We can instruct you how to use, adjust the
screens, and change the broken modules with spare parts. Also, we
can send technicals to your country to solve problems. Mostly, our
led display will not have big problems within warranty time!
Q4: What's the control system?
A: We use Linsn, Nova ,Carlette control system.
Q5: What's the warranty of your LED Display Screen ?
A: We have a 2-year warranty for our led display screen, and
100,000 hours life span of the led lamps.
Q6. How to proceed an order for led display?
A: Firstly let us know your requirements or application, liking
project size, rental or fixed installation.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the order and places deposit for formal
order.
Fourthly We arrange the finished display cabinet.
Welcome to discuss with us if there is any idea from you!!!
