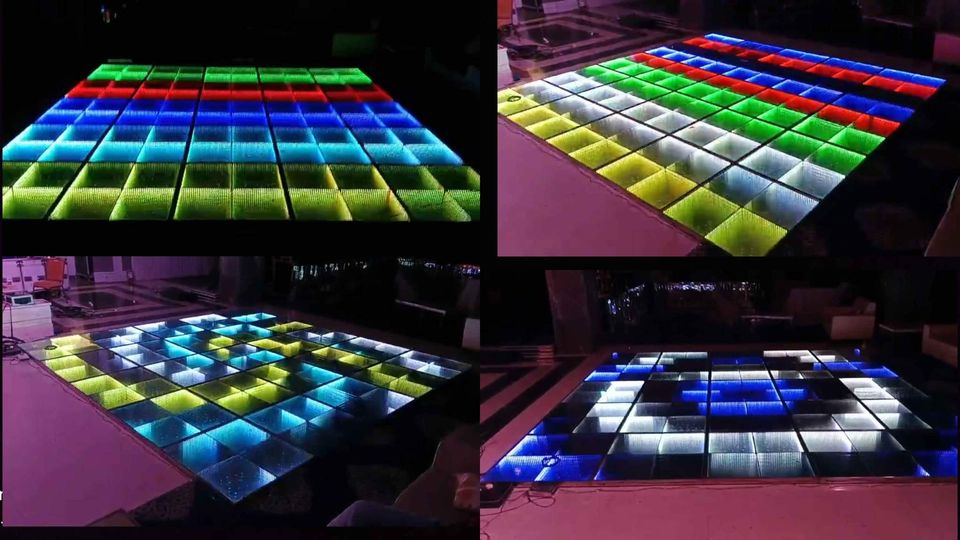

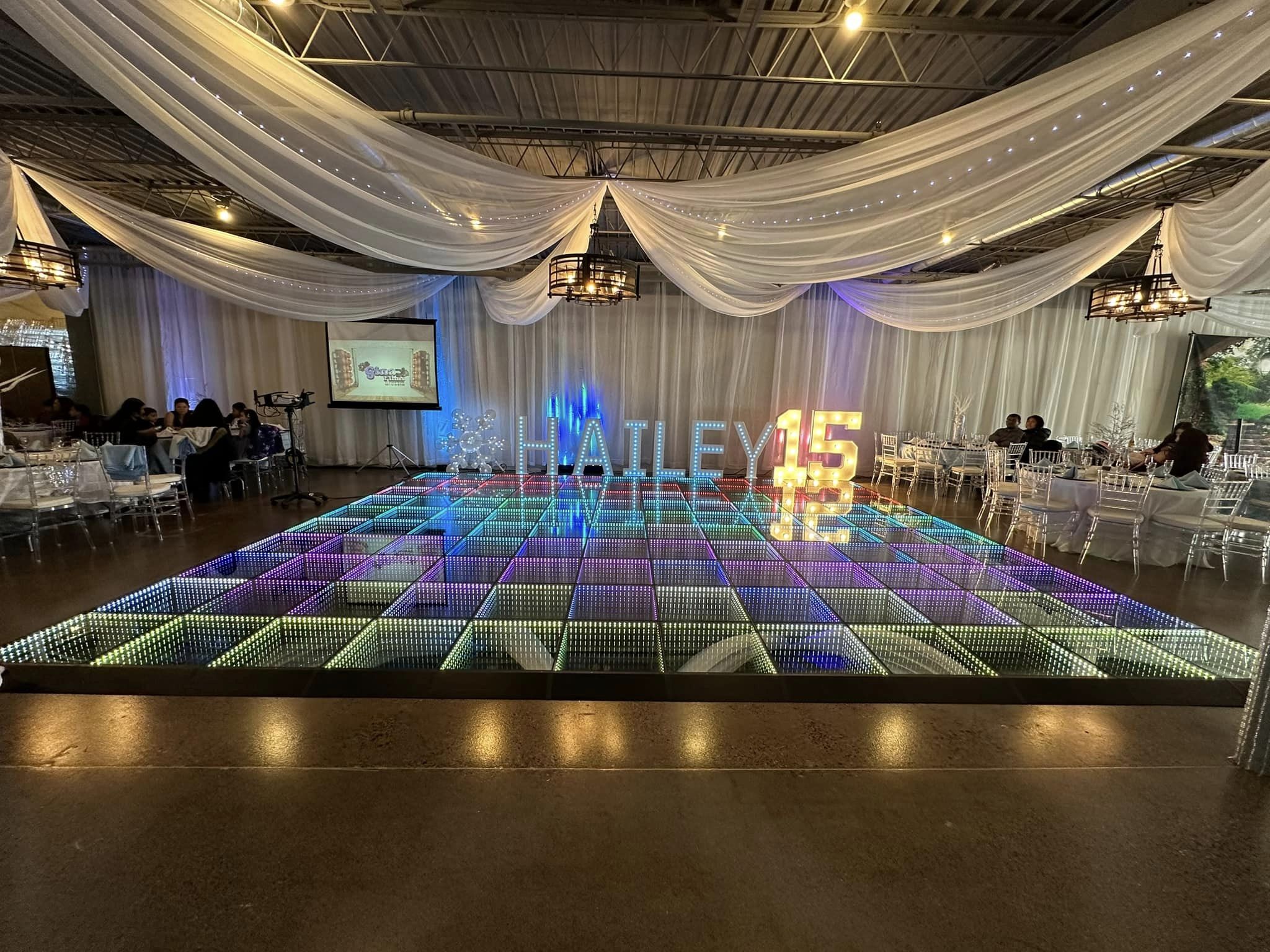

Full Color P10 LED Dance Floor 320*160mm Module Aluminum 1/4 Scan
IP65
Technical Specifications:
1. The product structure can withstand 100 km/h wind speed and
8-magnitude earthquake.
2. Excellent waterproof performance, safe and reliable power
system.
3. All parts of the product can be processed according to customer
requirements.
4. The metal structure can be recycled and has no impact on the
environment.
5. The product service life is up to 5-8 years.
6. We can provide additional installation, technical guidance and
training services.
♦ Why choose us
Continues Quality
With more than 10 years experience in led display
producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products
continuous quality.
Competitive Price
With large scale production capacity and professional production
technology,our company have built
effective modular production.We always stick to promote the
technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill
it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the
products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and
we’ll recommend suitable products to
you.
After-sales:We will track the products usage and then constantly
perfect our products.
Specifications :
| outdoor P10 LED Display |
| Resolution/mm | 10 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 10000/square meter |
| Module resolution | 32x16 |
| Module size/mm | 320x160mm |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7500cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/4 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
FAQ:
1.Are you factory or trading company?
We are factory and we provide OEM services, we have already
established long-term cooperative relationship with many foreign
companies such as
Singapore,Britain,America,Canada,Australia,Malaysia etc.
2.What kind of items do you mainly produce?
Our factory mainly professionally manufacture Indoor and Outdoor
LED Display,contains rental and fixed screens,our products can be
found in many places,such as shopping mall,airport,train
station,concert,statium,dance floor ect.And our company.also have
design teams,you could send us your requirements,we'll make them
for you if we could produce.
3.What kind of after-sale service do you offer?
A.Reply within 4 hours customer problems(24 hours free hotline:+86-0755-29190034)
B.3-5 years warranty.
C.Free technical support.
D.Quick delivery after payment.
E.Export wooden and flight cases packaging.
Welcome to visit our website and inquire more info!!!
