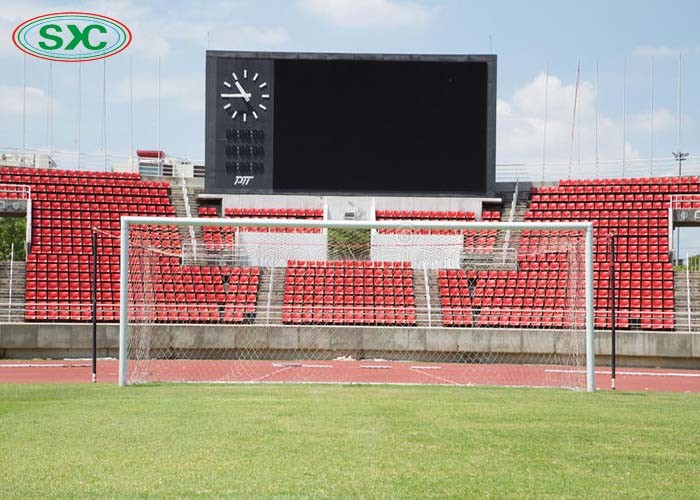

IP65 Outdoor P8 Statium LED Display High Brightness 40*20
Resolution
Specifications :
| outdoor P8 LED Display |
| Resolution/mm | 8 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 15625/square meter |
| Module resolution | 40x20 |
| Module size/mm | 256x128mm |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >7500cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/4 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
♦ Production process
1) Incoming inspection → 2) DIP → 3) Plug-in
→ 4) Wave soldering → 5) After soldering → 6) Testing
→ 7) Semi-finished product aging → 8) Module assembly
→ 9) Gluing → 10) Finished product aging → 11) Inspection completed
and put into storage
If you are looking for RGB LED display, it is a good choice for us!
! !
Our company has more than 10 years of experience in the field of
LED display, with better technology and technicians, we can provide
you with high-quality and low-cost products to satisfy you.
In order to ensure quality, we update the equipment at least 2
times a year, in addition, we have very strict requirements for
employees. The sanitation of the workshop can make you feel
comfortable.
Our company attaches great importance to quality, for our brand and
for the interests of customers.
Applications:
Airport Full Color Indoor LED displays
Train station Indoor Full Color LED Displays
Entertainment Bar Indoor Full Color LED Screen
Stadium Indoor Full Color LED Display
Museum Full Color Indoor LED display
Car exhibition LED display
Conference room Indoor Full Color LED Video Display
Shopping Mall Indoor Full Color LED display
If you have any questions about our products,just feel free to
contact me,i'll be here all the time,and the reply for your inquiry
whin 4 hours.
Welcome to visit our website and inquire more info!!!
