P3 Indoor Full Color Hanging LED Display for Statium 1/32 Scan Mode
IP34
Sales promotion:
SCXK indoor SMD p1.667mm p2.5mm p3mm p4mm P5mm p6mm rental led display hot sale recently,in order to catch the brisk
demand ,we have prepared large amount of stock of this product,so don't
hesitate to contact us for the furthercooperation if any request for the rental led display.
Proved with facts that our indoor SMD p1.667mm p2.5mm p3mm p4mm P5mm p6mm led display win the good evaluation from our customers,it ont only display the video with high resolution on different
kinds of performances and stage,but also can be waterproof with the special cheap price.It's really
the most valuable product compared with similar products used for TV station, restaurant, concernt,
entertainment, commercial performance.
Advantages:

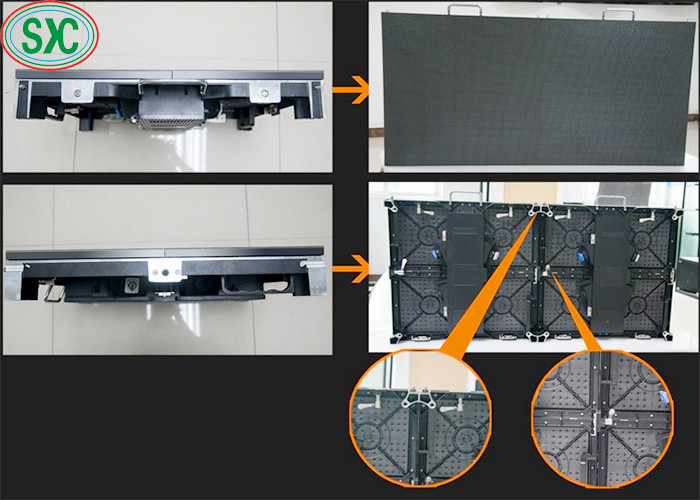

1: The structural precision of the aluminum box processed by CNC is
higher than that of the aluminum box processed by sheet metal,
which ensures the flatness of the entire LED screen. 2: It is light in weight, less than 1000KG, and it is easier for
one person to install, saving installation time. The weight of the
traditional LED screen of the same size exceeds 25KG. 3: It is processed by CNC aluminum, with high strength, good
toughness, high precision and not easy to deform. The thickness of
our box is 63mm, and the thickness of the traditional box is 160mm. 4: The quick locking mechanism is used for the upper, lower, left
and right connections, and a box can be installed with high
precision within 10 seconds. The box splicing and wiring are fast
and reliable, not only beautiful in appearance, but also quick
disassembly in the true sense. 5: The modular design is adopted, and the assembled box is quick
and convenient to install and disassemble, and easy to maintain. 6. The new structural design can meet the requirements of hoisting,
stacking, and indoor use, and simplify the cabinet structure. 7: It has excellent heat dissipation design and performance, low
noise, no need for external fans or air conditioners, light weight,
low power consumption, and can reduce installation labor costs and
operating costs.
Specifications :
| Indoor P3 LED Display |
| Resolution/mm | 3 |
| Pixel configuration | 1R1G1B |
| Pixel density/pixels/m² | 111111/square meter |
| Module resolution | 64x64 |
| Module size/mm | 192x192mm |
| View distance | 14-300m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >1200cd/square meter |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 16bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km |
| Driving mode | Constant driving current |
| Scanning mode | 1/16 SCANNING |
| Frame rate | 60Hz |
| Refresh frequency | >3000Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted |
| 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ |
| Self-check technology | LED spot self-check, communications check, power check, |
| temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, |
| send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature
protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
Our services
1. After-sales service:
1) Service principles: response in time, solve problems as soon as
possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen
body, free of all maintenance charges; After Maintenance period,
only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be
solved, please contact with our company, we can response in 24
hours. In order to shorten the maintenance time, Our Company will
deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible
for the equipment.
2. Pre-sales service:
1) Our company can arrange professionals to conduct site
installation and debugging in strict accordance with the
requirements of the schemes and the original manual. If there is
any special requirement, it is necessary to make changes of part
installation scheme, we will coordinate with users. Our company can
ensure the consistence of completion time and contracted time. Any
problems caused by natural factors or man-made, we will discuss
with client to find solutions.
2) Our company can train the users based on the manual. The
training include system use, system maintenance and equipment
protection.
