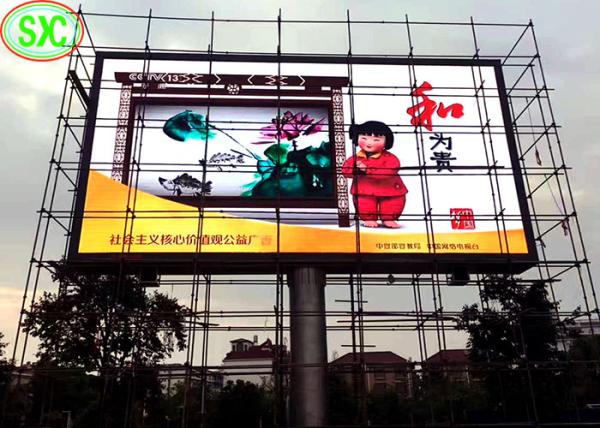

high definition outdoor p6 full color video function pillar led
display
SHENZHEN SCXK ELECTRONICS CO., Ltd delivers customized event led
projects that connect our clients to their audiences in a
meaningful way.founded in 2005 specialized in Flexible led display,
Transparent led screen and Rental LED display. Offer architects,
designers and property owners a digital surface not previously
available. Now with a wide range of resolution options, flexible
form factors, light weight, low power and silent operation,
developing negligible heat and delivering exceptional
sustainability results, LED technology is transforming property
precincts like never before.
Main products: Curved LED screen, Transparent LED screen, Rental LED screen.
We are specilized in LED Display, which widely in industries of
advertisement, pub, airport, station, harbor, gym, banks, school,
factory, post office, department store, hospital, revenue office,
customer, supervising centre, etc. All the products are exported to
America, Russia, Great Britain, France, Austrilia, Italy, Japan,
South Korea, Taiwan, Kazakhstan, etc.
Our company owns a group of high-quality professional and technical
personnel and advanced modern sophisticated production equipment.
We implement strict quality management, making every LED module,LED
display cabinet,Power supply ,Video processor ,LED display into
competitive products, etc. From the purchasing of the raw material
to manufacturing, assembling, testing, we carry out every step one
by one according to the ISO9001:2000 international quality control
system strictly to guarantee the quality. And our products have
passed the ISO14001:2004 international environment guarantee system
certificate and European CE certification.
Product Specifications
| LED tube chip parameters |
| Packaging | Color | Brand | Model | Brightness | Wave length | Quantity |
| 146 | R | Epistar | 9mil | 800-900 | 730-800 | 1 |
| G | Epistar | 8x10mil | 1000-1100 | 900-1000 | 1 |
| B | Epistar | 8x10mil | 230-260 | 230-260 | 1 |
| LED module parameters |
| Pixels pitch: | 6.0mm | Pixel density: | 27777dot/m2 |
| Pixel configuration: | 1R1G1B | Module pixels: | 32*32=1024dots |
| Module size: | 192mm*192mm | Module weight: | 0.3KG |
| Configuration feature: | Integrated Light/Driver | Frame material: | Polycarbonate(PC) |
| Input voltage: | AC 4.8-5.5V | Max current: | 6.0A±0.1A |
| Module power consumption: | 30W | Driver mode: | 1/8 scan |
| LED cabinet parameters |
| Standard cabinet size: | 576*576mm |
| Cabinet pixel: | 96*96=9216 dots |
| Cabinet square: | 0.33m2 |
| Cabinet weight: | 40KG |
| Max power consumption: | 450W |
| Average power consumption: | 250W |
| LED display parameters |
| Brightness: | ≥6500cd/m2 | Brightness homogeneity: | ≥0.95 |
| Best horizontal view angle: | 100±8° | Best vertical view angle: | 70±5° |
| Best view distance: | ≥6.0m | Blind spot rate: | ≤0.0003 |
| Max power consumption: | 600W/m2 | Application condition: | intdoor |
| System control parameters |
| Gray scale: | each R, G, B - 65536 | Color | 16777216 kinds |
| Repetition rate: | ≥60 frame/second | Refresh rate: | ≥1400Hz |
| Control method: | PC control, video synchronization | Brightness adjusting: | 256 auto/manual |
| Input signal: | DVI/VGA, RGBHV, S-VIDEO, HDTV and so on |
| System working features |
| Lifespan: | ≥100,000 hours | MTBF: | ≥10,000 hours |
| Attenuation rate: | ≤15% 3 years working | Out of control dots: | 0 |
| Discrete control dot: | 0 (before shipment) | Blind spot rate: | 0 (before shipment) |
| Working temperature: | -20 ~50 °C | Working humidity: | 10%~90%RH |
| Protection feature: | over-heat, over-load, image complement, overcurrent, overvoltage, anti- thunder (optional) |
Packaging & Shipping
Packaging Detail: Fumigation-free plywood box, airflight case,
Carton, etc.
Note: different payment methods can be provided according to
different countries.
Why Choose US ?
Professional wholesale and manufacturer of led screen
1. We have over 8 years’ experience of led screen .
2. We specialize in High configuration and high quality products.
3.We have professional R&D team who has professional
development ability.
4. Integrated research and development, design, production, sales
and
service.every material using inside will be picked up carefully and be fully
tested.
5. 100% manufacture, 2 year spare parts’ guarantee time
6. We are factory, we can offer better price than Trade Company.
Feel free to reach out if you get interested in our led
displays,Bella will be always here to give you our best service.
