Full color outdoor P10 LED billboard 2 scan driving mode with high
brightness
The stadium LED display description
The LED display screen of the stadium is specially designed
according to the special application requirements of the stadium.
It is mainly used in commercial advertisements, highlights,
slow-motion playback, close-up shots, etc. in stadiums to bring the
audience a perfect visual feast. . Providing high-quality display
screens for all kinds of sports events, the LED video image
processor can realize unlimited real-time communication, manage and
integrate dynamic display content (such as: video, time, text,
graphics, animation and scoreboard systems, etc.) But also through
the software partition function to achieve a full-screen
multi-window display, can display images, real-time display, text,
clock, match scores. Unmatched video quality, excellent color
performance, real-time live broadcast of events, sponsors and
organizers of sports events to enhance the brand image, pass
promotional information, but also ensure that each audience can
experience the stimulation and perfection of the scene competition.
Stadium LED display function
1. The commercial advertisement plays an icing on the game scene,
with perfect picture quality and sound effects, making the scene
more competitive and shocking.
2. Introduce player information and the actual situation of the
game. The large and clear live broadcast of the game breaks the
limits of the seat and makes it easier to watch the game from a
distance.
3, connect the referee system, timing scoring system, LED display
can play time and scores in real time.
4, slow-motion playback has become the basis for the referee to
make a correct decision, maintaining the fairness and fairness of
the game and reducing unnecessary conflicts.
5, highlights, slow-motion playback, close-ups, to bring the
audience a perfect visual feast.
Parameter specification
| model | P10 |
| Pixel unit module | Pixel pitch(mm) | 10 |
| Pixel density (dots/sqm) | 10000 |
| LED type | SMD |
| Module size(mm) | W320×H160 |
| Pixel composing | RGB full color |
| Pixel unit screen | screen size(mm) | 960*960mm |
| module Resolution (nits) | 32*16 |
| Cabinet structure | Water-proof |
| installation | fixed on the back |
| screen material | magnesium alloy |
| Protect degree | IP65 front ,IP54 rear |
| Viewing distance(m) | 10~100m |
| Brightness(cd/sqm) | 7000 cd/sqm or 7000 nits or more |
| Power consumption (w/sqm) | Max 900W/sqm ,can be custom make 500W max |
| Driving IC | 1/4 scan MBI Brand Driver |
| Refresh rate(HZ) | ≥2000- 3000 |
| Viewing angel(c) | H120 V110 |
| Other parameter | Image adjustment | contrast, tonal, the color saturation, gray calibration
coefficient, color range, image variable times, etc |
| Image processing | Video noise reduction, fast motion compensation, edge to sharpen,
edge smooth, color space transformation and control, coordinate
transformation of grey scale, etc |
| Brightness uniformity | The whole screen on the monochrome, minimum pixel luminance and the
brightest pixel luminance than more than 0.9 |
| Gray | 65536 |
| Color temperature/contrast | Red, green, and blue brightness and contrast can through the
software level 100 adjustable, color temperature can be adjusted
according to need |
| Transmitting Distance | The shielded twisted-pair cable transmission distance for 100
meters, the biggest up to 140 m. Multimode fiber of up to 500
meters, the single-mode optical fiber to 20 kilometers |
| Input Signal | RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION |
| Control System | PCTV non-liner editing card+DVI display card+main control
card+optic fiber transmission(Optional) or video dealer |
| Average No Failure Time | 20000 hours |
| Life span | 100,000 hours |
| Out-of Control rate | 0.0001 |
| To floor drain current | Less than 3.5MA |
| Control system | Synchronized |
| Operating Environment Temperature | -20°C—65°C Optional |

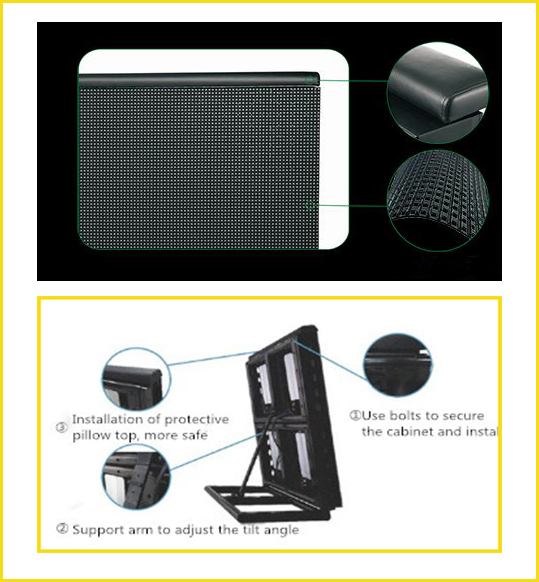

Product show
Buying Guides
In order to offer you a suitable solution, please follow the guides
bellowing :
1,Star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. Three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions,
squares and so on.
Product item
Many selection for your screen ,welcom to visit our factory
Outdoor series:
{P3.91,P4,P4.81,P5,P5.95,P6,P6.67,P8(SMD)}{P10,P12,P16,P20,P25(DIP)}
outer full color led module/display.
Indoor series:
P2,P2.5,P3,p3.91,P4,P5,P6,P7.62,P6,P10(SMD) indoor full color led
module/display.
