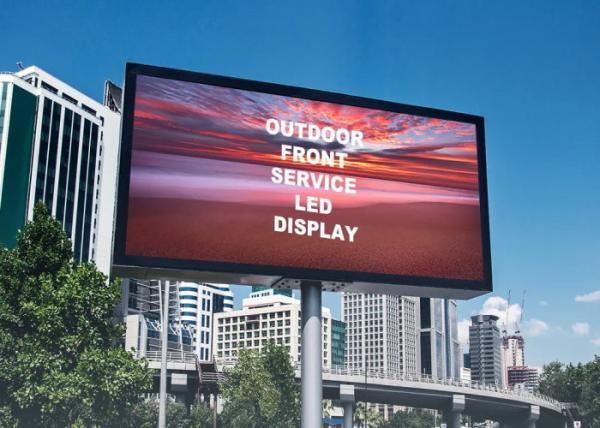

High Definition Outdoor LED Billboards Full Color P6 SMD3535 960mm
x 960mm
Quick details
Firstly,you can tell us the module size,then our engineer will
analysis and do several kinds of projects as per your request for
your selection,every project has its own advantage and
disadvantage,all the details included price is for your reference,
then you can make decision to select which project is the best fit
for your situation.Once you confirmed the order,then you will pay
us the deposit of 30%,both of you and us stamp and sign the
contract,
We are a professional manufacturer of outdoor and indoor LED
displays. So far, we have customers all over the world and they
keep good business relationship with us. If you want to know more
information, we can send you some contact information of our
customers, you can try to contact them and get some feedback.
Through our joint efforts, we can become better partners. No matter
what problems you encounter, please feel free to contact us. We can
provide various types of LED displays.
1. Application
Widely use in stadiums, advertisement, banks, securities exchange,
stations, shopping malls, postal offices, schools, restaurants,
entertainment, enterprises ,highway etc
2. Market
North America, South America, Eastern Europe, Southeast Asia,
Africa, Oceania, Mid East, Eastern Asia, Western Europe
P6 led billboards specifcation.
| LED Lamps | Type | SMD3535(High Brightness LEDs) |
| LED Standard | Real Pixel(1R1G1B) |
| Red Wavelength | 625-630nm |
| Green Wavelength | 515-530nm |
| Blue Wavelength | 465-475nm |
| LED Module | Pixel Pitch | 6mm |
| Module Size | 192mm x192mm |
| Module Resolution | 32*32dots |
| LED Cabinet | Cabinet Size | 960mmX960mm |
| Cabinet Resolution | 160pixels *160pixels |
| Cabinets Material | Sealed Iron Cabinet |
| LED Display | Pixel Density | 27777pixels/sq.m |
| Drive IC | MBI5124 |
| Power Supply | Series connection |
| Brightness | >7500cd/sqm |
| Display Color | 16.7million |
| Viewing Angle | 160°(Horizontal),110°(Vertical) |
| Best Viewing Distance | 10m~200m |
| Max Power Consumption | 600 w/sq.m |
| Average Power Consumption | | | 300 w/sq.m |
| Weight | 40kgs/sq.m |
| Refresh Rate | 2000hz |
| Input Voltage | AC220V/50H or AC110V/60H |
| Output Voltage | DC5V,40A |
| Grey Scale Levels | 16bit |
| Display Colors | R(1024) x G(1024) x B(1024) |
| Life-span | 100,000 hours |
| Protection Level | IP65 |
| Failure percentage of leds | | | less than 0.0003 |
| Working Temperature | -25℃~65℃ |
| Drive Mode | 1/8 scaning |
| Working Humidity | 10%~99% |
| Shenzhen shichuangxinke electronic Co.,ltd |
|
| Led Full color led display pricelist |
| Outdoor full color smd 3in1 led display |
| No. | scanning method | module size (mm) | pixel | dot density | Cabinet size (mm ) | brightness (cd/sqm) | Price(sqm) | Notes |
| P3.91 Die cast aluminum (smd) | 1/8scan | 250x250 | 64x64dots | 65410dots | 500X1000 | 7500cd | 1465.5$ | flight case package |
| P3.91 Iron cabinet | 1/8scan | 250x250 | 64x64dots | 65410dots | 1000x1000 | 7500cd | $1,396.50 | wooden packaged |
| P4 die cast aluminum cabinet (smd) | 1/8scan | 256x128 | 64x32dots | 62500dots | 512x512 | 7500cd | $111.50 | flight case package |
| P4 iron cabinet(smd) | 1/8scan | 256x128 | 64x32dots | 62500dots | 718x718 | 7500cd | $1,035.50 | wooden packaged |
| P4.81 die cast aluminum cabinet | 1/13scan | 250x250mm | 52x52dots | 43222dots | 500x500 | 7500cd | $1,035.50 | flight case package |
| P5 die cast aluminum cabinet | 1/8scan | 320x160 | 64x32dots | 40000dots | 640x640 | 7500cd | $825.50 | flight case package |
| P5 Iron cabinet | 1/8scan | 320x160 | 64x32dots | 40000dots | 960x960 | 7500cd | $795.50 | wooden packaged |
| P5.95 die cast aluminum cabinet | 1/7scan | 250x250 | 42x42dots | 28246dots | 500x1000 | 7500cd | $795.50 | flight case package |
| P6 die cast aluminum cabinet | 1/8scan | 192x192 | 32x32dots | 27778dots | 576x576 | 7500cd | $715.50 | flight case package |
| P6 Iron cabinet | 1/8scan | 192x192 | 32x32dots | 27778dots | 960x960mm | 7500cd | $625.40 | flight case package |
| P6.67 die cast aluminum cabinet | 1/8scan | 320x160 | 48x24dots | 22478dots | 640x640 | 7500cd | $765.50 | flight case package |
| P8 die cast aluminum cabinet | 1/4scan | 320x160 | 40x20dots | 15625dots | 640x640 | 7500cd | $507.50 | flight case package |
| P8 Iron cabinet | 1/4scan | 256x128mm | 32x16dots | 15625dots | 1024x1024 | 7500cd | $480.50 | wooden packaged |
| P10 Die cast aluminum cabinet | 1/4scan | 320x160mm | 32x16dots | 10000dots | 640x640 | 7500cd | $500.50 | flight case package |
| P10 Iron cabinet(DIP) | 1/4scan | 160X160 | 16x16dots | 10000dots | 960x960 | 7500cd | $539.50 | wooden packaged |
| P10 Iron cabinet (smd) | 1/4scan | 320x160 | 32x16dots | 10000dots | 960x960 | 7500cd | $425.50 | wooden packaged |
| P16Iron cabinet | static scan | 256x256 | 16x16dots | 3906dots | 1024x1024 | 7500cd | $555.50 | wooden packaged |
| I ndoor full color SMD 3 in 1 led display |
| P2 Iron cabinet | 1/32scan | 256x128 | 128x64dots | 250000dots | 512x512 | 2200cd | $1,905.50 | wooden packaged |
| P2 die cast aluminum | 1/32scan | 256x128 | 128x64dots | 250000dots | 512x512 | 2200cd | $2,301.50 | flight case package |
| P2.5 Iron cabinet | 1/16scan | 160x160 | 64x64dots | 160000dots | 640x640 | 2200cd | $1,111.50 | wooden packaged |
| P2.5 die cast aluminum cabinet | 1/16scan | 160x160 | 64x64dots | 160000dots | 480x480 | 2200cd | $1,195.50 | flight case package |
| P3 Iron cabinet | 1/32scan | 192x192 | 64x64dots | 111111dots | 576x576 | 2200cd | $795.50 | wooden packaged |
| P3 die cast aluminum cabinet | 1/32scan | 192x192 | 64x64dots | 111111dots | 576x576 | 2200cd | $842.50 | flight case package |
| P3.91 Die cast aluminum (smd) | 1/16scan | 250X250 | 64x64dots | 65410 dots | 500X500 | 2200cd | $795.50 | flight case package |
| P4 iron cabinet(smd) | 1/16scan | 256X128 | 64x32dots | 62500dots | 768x768 | 2200cd | $603.50 | wooden packaged |
| P4 die cast aluminum cabinet (smd) | 1/16scan | 256x128 | 64X32dost | 62500dots | 512x512 | 2200cd | $655.50 | flight case package |
| P5 Iron cabinet | 1/16scan | 320x160 | 64x32dots | 40000dots | 640x640 | 2200cd | $480.50 | wooden packaged |
| P5 die cast aluminum cabinet | 1/16scan | 320X160 | 64X32dots | 40000dots | 640x640 | 2200cd | $555.50 | flight case package |
| P6 iron cabinet | 1/16scan | 384x192 | 64X32dost | 27777 dots | 768x768 | 2200cd | $398.50 | wooden packaged |
| P6 die cast aluminum cabinet | 1/16scan | 192X192 | 32x32dots | 27777dots | 576x576 | 2200cd | $478.50 | flight case package |
| p10 iron cabinet | 1/8scan | 320x160 | 32x16dots | 10000dots | 960x960 | 2200cd | $350.50 | wooden packaged |
| All the pricelist include the control system,3 years warranty!(we
will send some spare parts based on your order |
Spare parts warranty period Configuration Guidelines
(1) Adequacy: With the specific equipment, spare parts allocation
adequate, ensure replacement in the first time of equipment
failure;
(2) Necessity: On the basis of previous maintenance experience, we
configure the spare parts are the key parts of the equipment,so as
to ensure the economic allocation;
(3) Economic practicality: In order to deal with the fault in the
shortest time, we configure the spare parts are complete module or
unit,
through our training, the owners can easily replace the spare
parts, so as to ensure the normal operation of the system.
The project case as follows
What about your pre-sale service and post-sale service?
A2. For pre-sale service. We have a professional sales team and a 8
years technical team who are willing to answer your question 24/7.
We can offer a whole complete solution for your project!
For post-sale service. We can instruct you how to use, adjust the
screens, and change the boken modules with spare parts.
Also, we can send technicals to your country to solve problems.
Mostly, our led display will not have big problems within warranty
time!
Whats your payment term? How long it takes to delivery?
A3. We accept T/T and L/C, For both T/T and L/C, At least 30%
deposit in advance, and the rest 70% before delivery.Our average
Production time is 10 days, after receiving the deposit.
